915108 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler (SN: 000101 & Above) Mower Deck Lift Parts Diagram

34" Zero-Turn Mower, 17hp Kohler

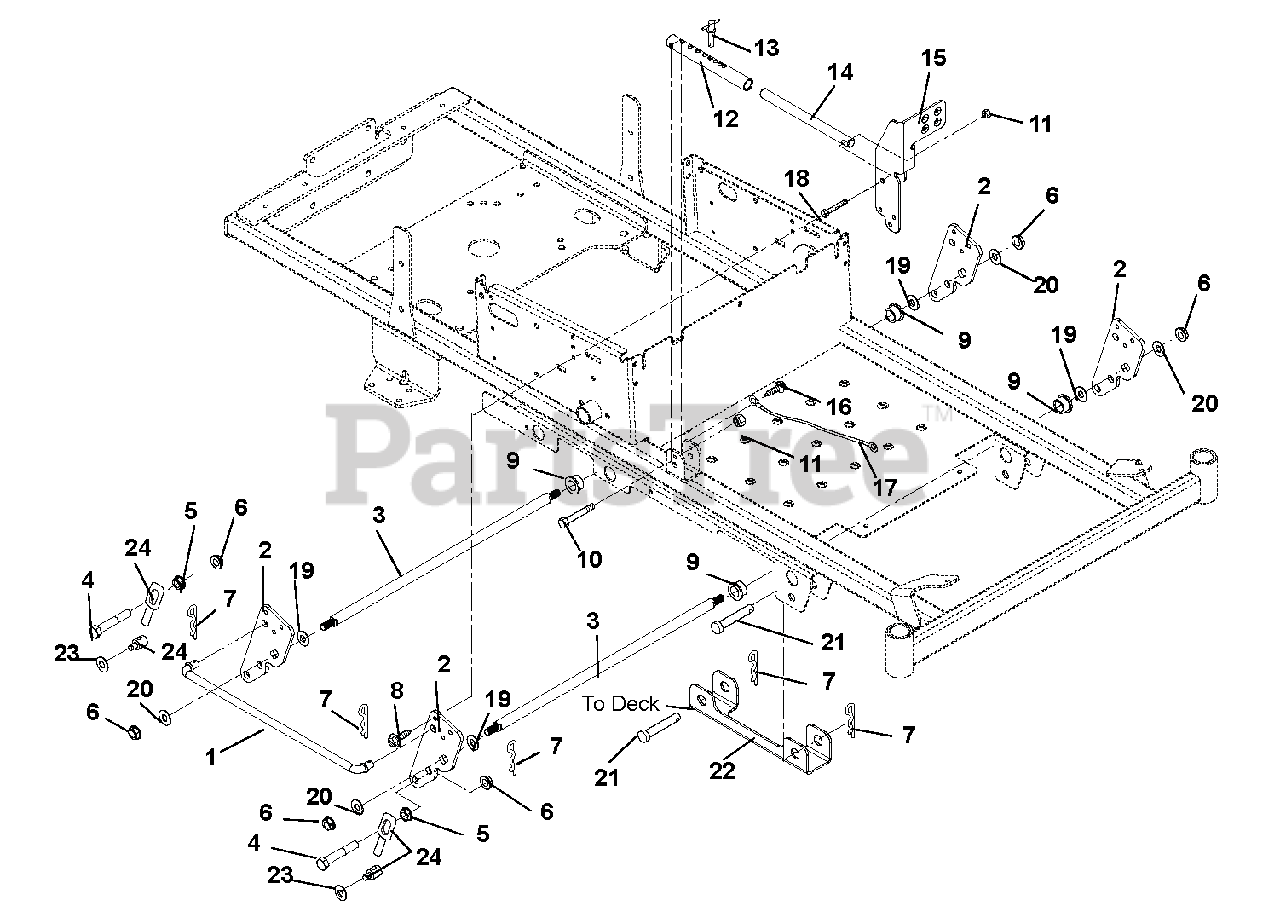

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 00279900

ROD,LIFT

$42.99

$

Usually ships in 4-12 days

0

2

Gravely 00279800

LIFT ARM

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 00502600

SHAFT, LIFT

$

$

Not available

4

Gravely 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, only 3 left!

0

10

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 00347800

TUBE,LIFT STOP

$

$

Not available

13

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

14

Gravely 00347700

ROD,LIFT

$46.99

$

Usually ships in 4-12 days

0

15

Gravely 00279551

PEDAL,FOOT LIFT

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

In Stock, Qty 10

0

18

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

21

Gravely 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, Qty 20+

0

22

Gravely 00484753

DRAG LINK, RED

$35.99

$

Usually ships in 4-12 days

0

23

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 03272700

ASM, DECK LINK

$105.99

$

In Stock, only 3 left!

0
