915116 (ZT 2450) - Gravely 50" Zero-Turn Mower, 24hp Briggs and Stratton (SN: 000101 & Above)

50" Zero-Turn Mower, 24hp Briggs and Stratton

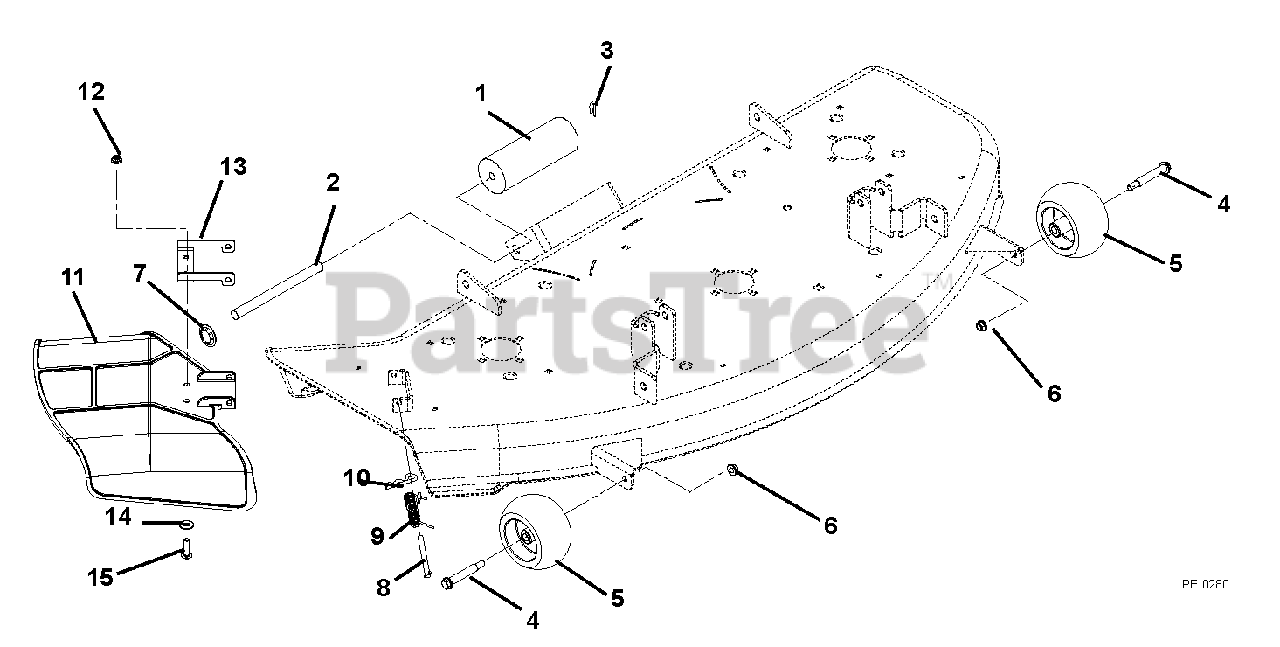

915116 (ZT 2450) - Gravely 50" Zero-Turn Mower, 24hp Briggs and Stratton (SN: 000101 & Above) > Parts Diagrams (15) > Anti-Scalp Wheels

  • Title
03114100

1

Roller (104, 106, 116)

Part# 03114100

Note: (104, 106, 116)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

00356500

2

Pin, Roller (104, 106, 116)

Part# 00356500

Note: (104, 106, 116)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $29.68

06714500

3

Pin, Spring Clip (104, 106, 116)

Part# 06714500

Note: (104, 106, 116)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07056800

4

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

Part# 07056800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

03471700

5

Wheel 5 x 3

Part# 03471700 (Superseded to 03905600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.03

06542000

6

Nut, Locking-Top-Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07000035

7

Push Nut, .625 Shaft (104, 106, 116)

Part# 07000035

Note: (104, 106, 116)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06800002

8

Clevis Pin

Part# 06800002

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

01258100

9

Spring, Torsion

Part# 01258100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06713500

10

Pin, Hair .08 x .18 x 1.18

Part# 06713500

OEM Warranty Repair Part for Gravely

Not available

00499900

11

Plastic Chute

Part# 00499900 (Superseded to 03994300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $46.90

06543100

12

Nut, Locking, Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

00662653

13

Chute Reinforcement

Part# 00662653

OEM Warranty Repair Part for Gravely

Not available

06435700

14

Washer, Flat Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05920900

15

Screw, Socket Head, Button Head .31-18 x .75

Part# 05920900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
