915116 (ZT 2450) - Gravely 50" Zero-Turn Mower, 24hp Briggs and Stratton (SN: 000101 & Above)

50" Zero-Turn Mower, 24hp Briggs and Stratton

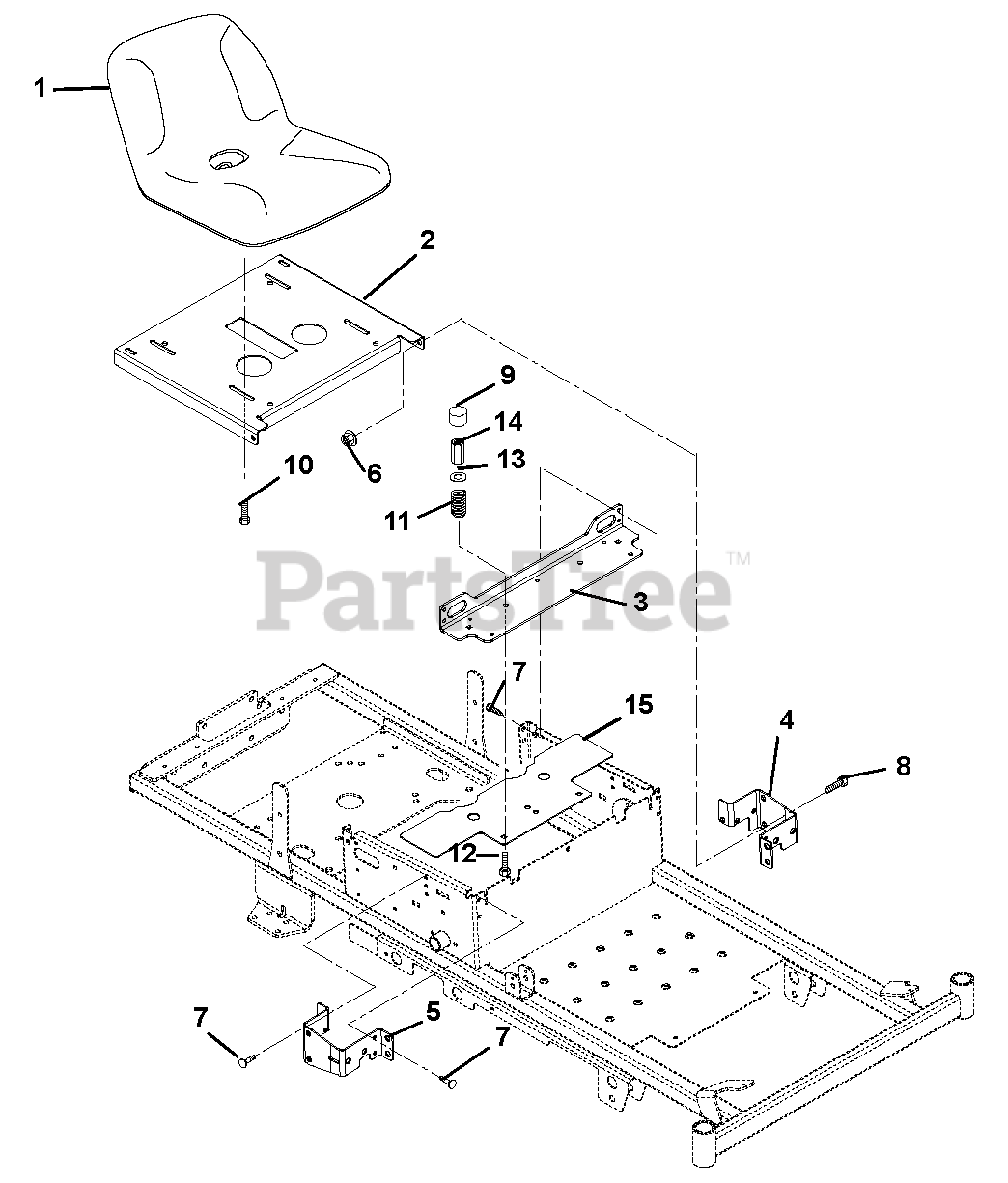

915116 (ZT 2450) - Gravely 50" Zero-Turn Mower, 24hp Briggs and Stratton (SN: 000101 & Above) > Parts Diagrams (15) > Seat And Seat Support

  • Title
02986700

1

Seat, V-2505 MICH No Armrest

Part# 02986700

OEM Warranty Repair Part for Gravely

Not available

03369351

2

Seat Plate

Part# 03369351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

00478351

3

Bracket, Seat Spring

Part# 00478351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

00503300

4

Bracket, RH Steering Stop

Part# 00503300 (Superseded to 07414400)

OEM Warranty Repair Part for Gravely

Not available

00503400

5

Bracket, LH Steering Stop

Part# 00503400 (Superseded to 07414400)

OEM Warranty Repair Part for Gravely

Not available

06542000

6

Nut, Locking Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07411500

7

Screw, Tapping .31-18 x .50

Part# 07411500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07056700

8

Bolt, Shoulder .375-16 x 1.50

Part# 07056700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00337700

9

Hub Cap

Part# 00337700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05900033

10

Bolt-Hex .31-18 x 1.00 Grade 5

Part# 05900033

OEM Warranty Repair Part for Gravely

Not available

08300021

11

Spring, Seat

Part# 08300021

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

06212100

12

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5

Part# 06212100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06439100

13

Washer-Flat-Steel .328 x .87 x .179

Part# 06439100

OEM Warranty Repair Part for Gravely

Not available

06500015

14

Nut, Coupling 5/16-18 x 1 .75

Part# 06500015

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00676551

15

Guard, Finger

Part# 00676551

OEM Warranty Repair Part for Gravely

Not available
