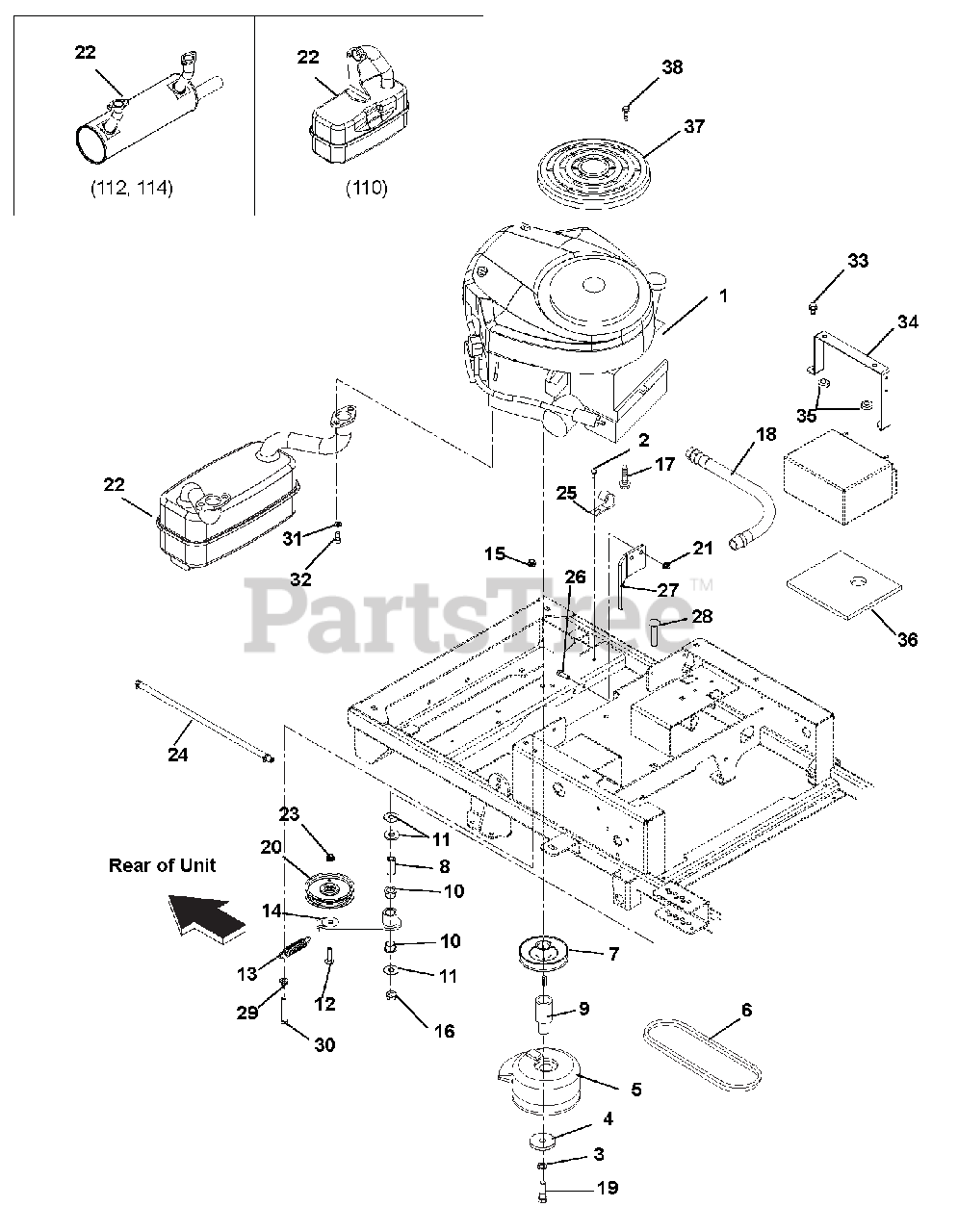

915120 (ZT XL 2448) - Gravely 48" Zero-Turn Mower, 24hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

48" Zero-Turn Mower, 24hp Briggs & Stratton

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08200333

ENGINE, 18HP BRIGGS ELS

Note: (118)

$

$

Not available

Gravely 08200324

ENGINE, BRIGGS 24HP ELS

Note: (120)

$

$

Not available

Gravely 08200307

ENGINE, 25HP COURAGE-PRO

Note: (112, 114)

$

$

Not available

Gravely 08200402

ENGINE, 20 HP KOHLER SINGLE

Note: (110)

$

$

Not available

2

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 02975300

CLUTCH, MS

Note: (112, 114, 120)

$343.99

$

In Stock, only 1 left!

0

Gravely 03370600

CLUTCH, MS WITH BRAKE

Note: (110, 118)

$356.99

$

Usually ships in 4-12 days

0

6

Gravely 07242200

V-BELT, HA-WRAPPED

$50.99

$

In Stock, Qty 13

0

7

Gravely 07300432

PLY-V 4.5X1.5 AB SECTION W/KEY
(Superseded to 07336567)

$112.99

$

Usually ships in 4-12 days

0

8

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 6

0

9

Gravely 02996000

EXT-CRANKSHAFT LOWER

$92.99

$

Usually ships in 4-12 days

0

10

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.49

$

In Stock, Qty 12

0

14

Gravely 02003800

WMT, GROUND DRIVE IDLER ARM

$68.99

$

Usually ships in 4-12 days

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$51.99

$

Usually ships in 4-12 days

0

19

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, Qty 11

0

20

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$64.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 02997300

MUFFLER - TWIN BRIGGS
(Superseded to 09391900)

Note: (118, 120)

$125.99

$

Usually ships in 4-12 days

0

Gravely 02965800

MUFFLER

Note: (112, 114)

$

$

Not available

Gravely 03373800

MUFFLER, KOHLER SINGLE

Note: (110)

$114.99

$

In Stock, only 4 left!

0

23

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 61554900

ASM, FUEL HOSE

$

$

Not available

25

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 03260051

CLUTCH STOP

$21.99

$

In Stock, only 2 left!

0

28

Gravely 06225500

BLT-RDHDSQNK .50-13X2.50 G5YZ

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (112, 114, 118, 120)

$1.49

$

In Stock, Qty 20+

0

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (110)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (112, 114, 118, 120)

$2.99

$

In Stock, Qty 20+

0

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (110)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, only 2 left!

0

34

Gravely 02975251

STRAP, BATTERY

$59.99

$

Usually ships in 4-12 days

0

35

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 17

0

36

Gravely 02967100

MAT, BATTERY
(Superseded to 03872600)

$7.49

$

Usually ships in 4-12 days

0

37

Gravely 03275500

GUARD, BRIGGS ENGINE

Note: (118, 120)

$31.99

$

Usually ships in 4-12 days

0

38

Gravely 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

Note: (118, 120)

$3.99

$

Usually ships in 4-12 days

0
