915120 (ZT XL 2448) - Gravely 48" Zero-Turn Mower, 24hp Briggs & Stratton (SN: 000101 & Above) Fuel Tank Parts Diagram

48" Zero-Turn Mower, 24hp Briggs & Stratton

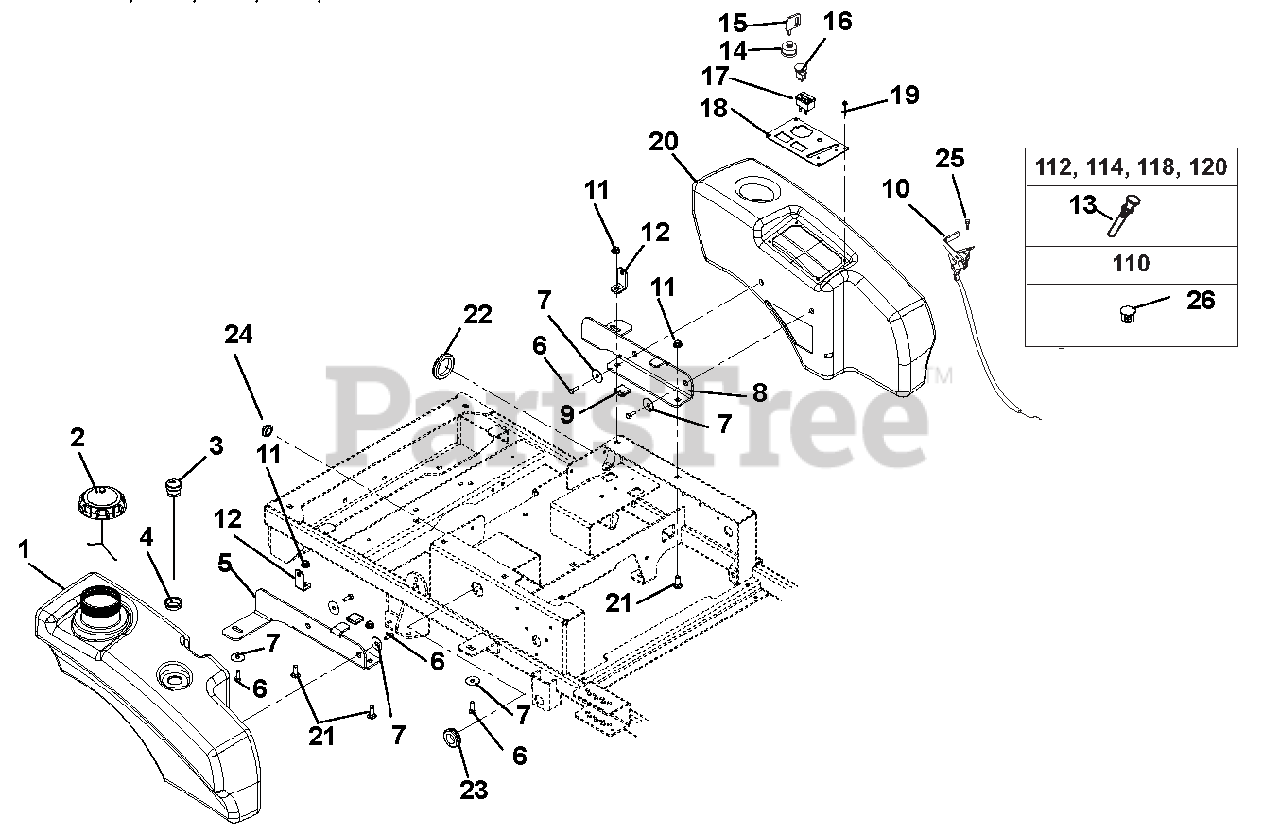

Fuel Tank Parts Diagram

  • Title

1

Gravely 02967300

TANK, XL
(Superseded to 04430400)

$424.99

$

In Stock, only 1 left!

0

2

Gravely 07500030

CAP, FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

3

Gravely 07500029

GAUGE, REMOTE FUEL 10.0"
(Superseded to 07500309)

$

$

Not available

4

Gravely 07500034

GROMMET, FUEL GAGE

$6.99

$

In Stock, Qty 20+

0

5

Gravely 02973351

BRKT, RH REAR TANK MOUNT

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.99

$

In Stock, Qty 5

0

8

Gravely 02973451

BRKT, LH REAR TANK MOUNT

$40.99

$

Usually ships in 4-12 days

0

9

Gravely 07500037

GRIP, RUBBER (1.0X1.0X.187)BLK

$

$

Not available

10

Gravely 06900315

CABLE-THROTTLE

Note: (112, 114, 118, 120)

$

$

Not available

Gravely 06900316

CABLE-THROTTLE/CHOKE

Note: (110)

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 03200051

BRKT, HOOD PIVOT

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 06900323

CABLE, CHOKE

Note: (118, 120)

$71.99

$

Usually ships in 4-12 days

0

Gravely 06900314

CABLE-CHOKE

Note: (112, 114)

$54.99

$

Usually ships in 4-12 days

0

14

Gravely 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

15

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

16

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

17

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

18

Gravely 02975751

CONTROL PANEL

$46.99

$

Usually ships in 4-12 days

0

19

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0

20

Gravely 02967400

FENDER, XL

$153.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 07500017

GROMMET 1.70ID X 2.0OD

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (110)

$3.99

$

Usually ships in 4-12 days

0
