915122 (ZT XL 1734) - Gravely 34" Zero-Turn Mower, 17hp Kohler, CARB (SN: 000101 & Above) Seat and Seat Support Parts Diagram

34" Zero-Turn Mower, 17hp Kohler, CARB

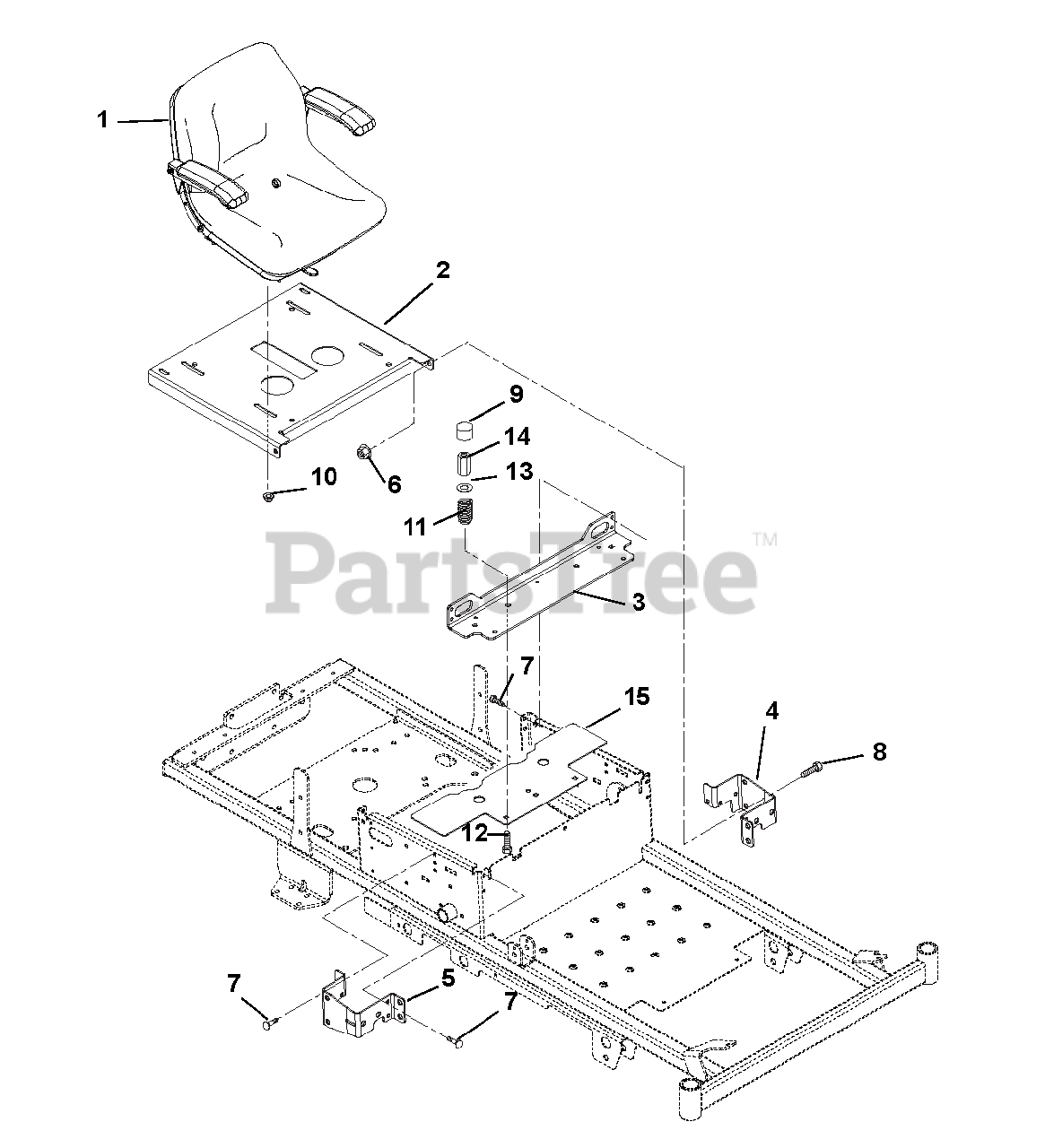

Seat and Seat Support Parts Diagram

  • Title

1

Gravely 02986700

SEAT, V-2505 MICH NO ARMREST

Note: (SEATS INC)

$

$

Not available

2

Gravely 03369351

SEAT PLATE

$

$

Not available

3

Gravely 03268351

BRKT, SEAT SPRING

$

$

Not available

4

Gravely 00652551

STOP, RH STEERING

$

$

Not available

5

Gravely 00652451

STOP, LH STEERING

$

$

Not available

6

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 1 left!

0

9

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 08300021

SPRING, SEAT

$21.99

$

In Stock, only 4 left!

0

12

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 11

0

13

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$4.99

$

In Stock, Qty 12

0

15

Gravely 00676551

GUARD, ZOOM FINGER

$

$

Not available
