915139 (2548) - Ariens Zoom XL 48" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 005999) Engine, Exhaust, Belts and Idlers Parts Diagram

Zoom XL 48" Zero-Turn Mower, 25hp Kohler

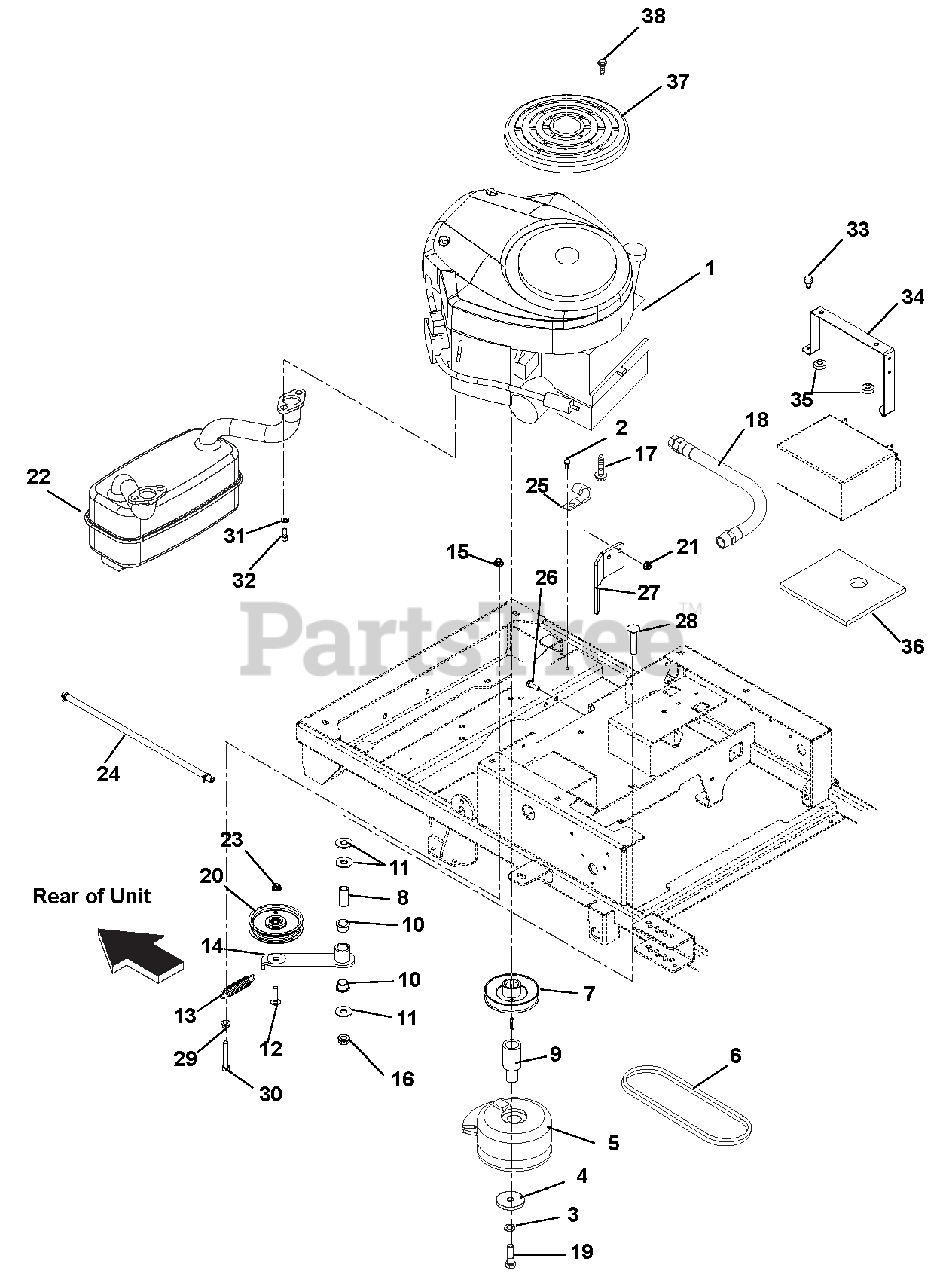

Engine, Exhaust, Belts and Idlers Parts Diagram

  • Title

1

Ariens 08200434

ENGINE, 20HP COURAGE TWIN

Note: (915137)

$

$

Not available

1

Ariens 08200426

ENGINE, COURAGE 25HP

Note: (915139)

$

$

Not available

1

Ariens 08200340

ENGINE, 18HP V-TWIN CE

Note: (915321)

$

$

Not available

2

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 8

0

3

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

4

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Ariens 02975300

CLUTCH, MS

Note: (915137, 139)

$343.99

$

In Stock, only 2 left!

0

5

Ariens 03370600

CLUTCH, MS WITH BRAKE

Note: (915321)

$356.99

$

Usually ships in 4-12 days

0

6

Ariens 07242200

V-BELT, HA-WRAPPED

$50.99

$

In Stock, Qty 20+

0

7

Ariens 07300432

PLY-V 4.5X1.5 AB SECTION W/KEY
(Superseded to 07336567)

$112.99

$

In Stock, only 1 left!

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 11

0

9

Ariens 02996000

EXT-CRANKSHAFT LOWER

$92.99

$

Usually ships in 4-12 days

0

10

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.99

$

In Stock, Qty 20+

0

11

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

13

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.49

$

In Stock, only 4 left!

0

14

Ariens 02003800

WMT, GROUND DRIVE IDLER ARM

$68.99

$

Usually ships in 4-12 days

0

15

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 16

0

18

Ariens 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$51.99

$

Usually ships in 4-12 days

0

19

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, only 3 left!

0

20

Ariens 07300101

ASM, 4" IDLER (.75 WIDE)

$64.99

$

In Stock, Qty 20+

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 02965800

MUFFLER

Note: (915137, 139)

$

$

Not available

22

Ariens 02997300

MUFFLER - TWIN BRIGGS
(Superseded to 09391900)

Note: (915321)

$125.99

$

Usually ships in 4-12 days

0

23

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 61554900

ASM, FUEL HOSE

$

$

Not available

25

Ariens 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

26

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

27

Ariens 03260051

CLUTCH STOP

$21.99

$

In Stock, Qty 5

0

28

Ariens 06225500

@BLT-RDHDSQNK .50-13X2.50 G5YZ

$6.49

$

Usually ships in 4-12 days

0

29

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0

30

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

31

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, Qty 20+

0

33

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

34

Ariens 02975251

STRAP, BATTERY

$59.99

$

Usually ships in 4-12 days

0

35

Ariens 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 6

0

36

Ariens 02967100

MAT, BATTERY
(Superseded to 03872600)

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 03275500

GUARD, BRIGGS ENGINE

Note: (915321)

$31.99

$

Usually ships in 4-12 days

0

38

Ariens 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

Note: (915321)

$3.99

$

Usually ships in 4-12 days

0
