915142 (ZT 42) - Gravely 42" Zero-Turn Mower, Briggs & Stratton (SN: 000101 & Above) Frame, Hood, Fenders, Casters And Tires Parts Diagram

42" Zero-Turn Mower, Briggs & Stratton

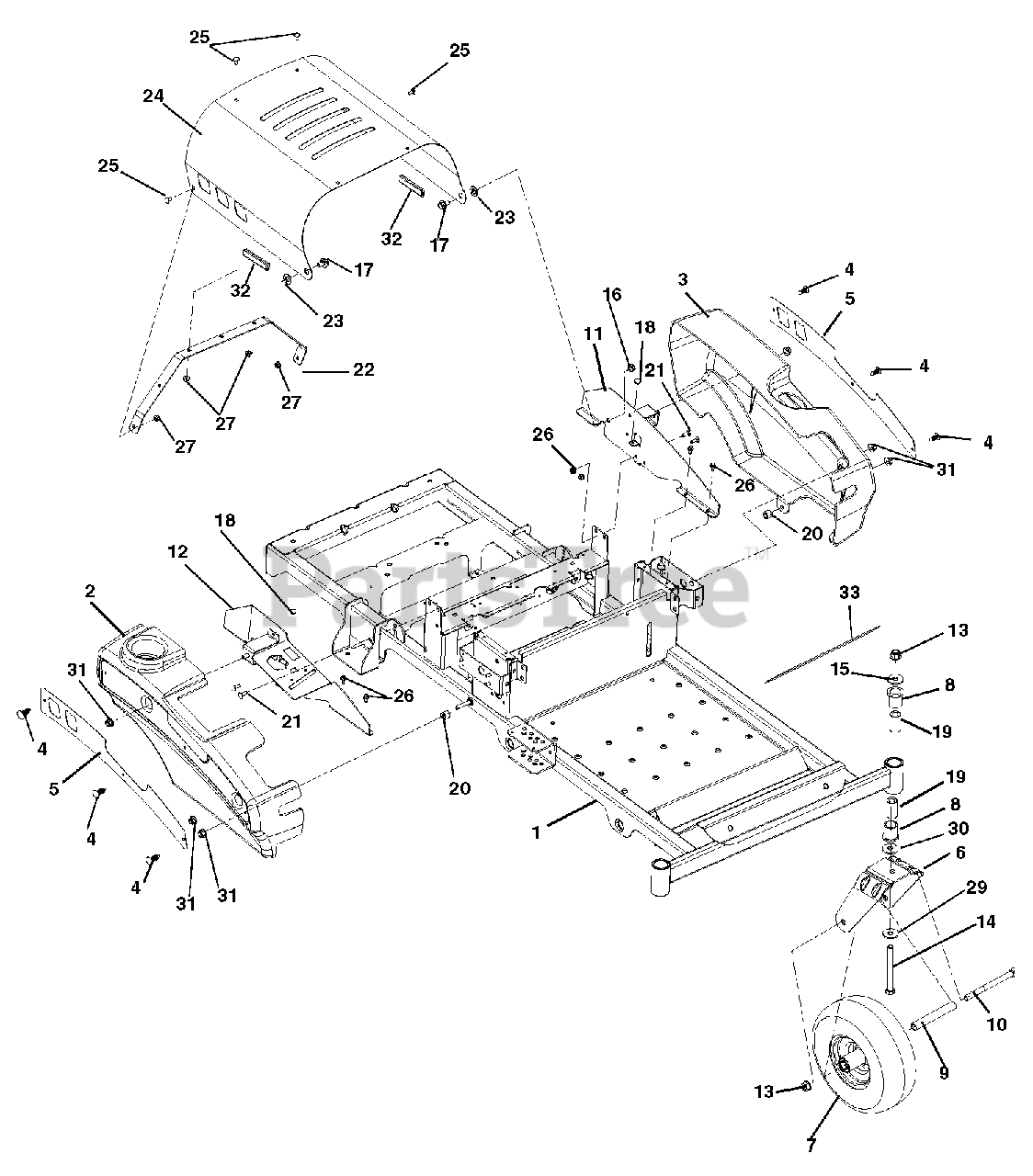

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 03896851

Weldment, Frame
(Superseded to 51525800)

$

$

Not available

2

Gravely 03768600

Fender, Right Hand

$81.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$98.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

Rivet, Nylon

$1.49

$

In Stock, Qty 5

0

5

Gravely 03769053

Plate, Fender

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 03744751

Fork, Caster
(Superseded to 51522500)

$125.99

$

In Stock, only 4 left!

0

7

Gravely 07100801

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0

$75.99

$

In Stock, only 1 left!

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 04039951

Weldment, Fender Mount Right Hand

$

$

Not available

12

Gravely 04040751

Weldment, Fender Mount Left Hand

$

$

Not available

13

Gravely 06543600

Nut, Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$4.99

$

In Stock, Qty 11

0

18

Gravely 07503100

Bumper Grommet .125 x .250 Diameter

$3.99

$

In Stock, Qty 20+

0

19

Gravely 00363100

Spacer, Caster

$7.99

$

In Stock, Qty 20+

0

20

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$6.49

$

In Stock, Qty 20+

0

27

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 03909253

Hood Brace

$

$

Not available

23

Gravely 06443300

Washer, Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03872253

Hood, ZT

$

$

Not available

25

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06500012

Nut, Locking Nylon Flange .25-20
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

29

Gravely 06445000

Washer-Flat-Steel .515X1.625X.250

$6.49

$

In Stock, Qty 20+

0

30

Gravely 06441800

Washer-Flat-Steel .518X2.0X.105
(Superseded to 06401127)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 06545400

Nut, Locking-Nylon-Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07500103

Edging, Clutch Paddle - 2.00"

$3.99

$

In Stock, only 2 left!

0

33

Gravely 03833800

Grip, Adhesive (1" x 16" BLK)

Note: (1" x 16" BLK)

$3.99

$

Usually ships in 4-12 days

0
