915146 (ZT 34) - Gravely 34" Zero-Turn Mower (SN: 035000 & Above) Mower Deck, Belt And Idlers Parts Diagram

34" Zero-Turn Mower

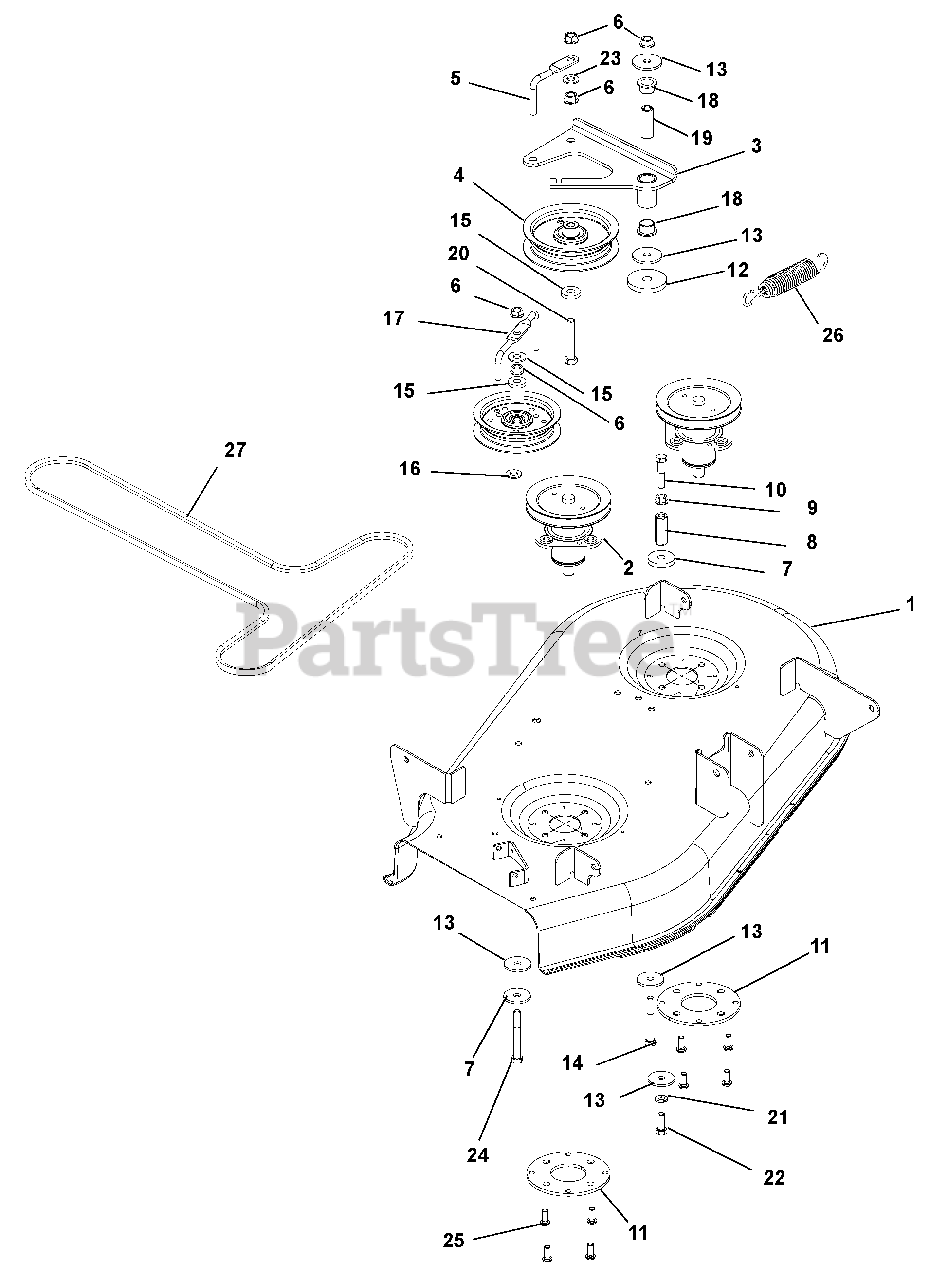

Mower Deck, Belt And Idlers Parts Diagram

  • Title

1

Gravely 51525500

KIT, 34" GRAVELY DECK W/DECALS

$795.99

$

Usually ships in 4-12 days

0

2

Gravely 51519500

KIT, DECK SPINDLE ASM (34/50)

$166.99

$

In Stock, Qty 10

0

3

Gravely 04430867

IDLER ARM
(Superseded to 04430851)

$60.99

$

Usually ships in 4-12 days

0

4

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$52.99

$

In Stock, Qty 20+

0

5

Gravely 03828853

WIREFORM, BELT FINGER
(Superseded to 03828800)

$10.99

$

In Stock, Qty 12

0

6

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$5.49

$

In Stock, Qty 20+

0

8

Gravely 06533500

NUT COUPLING .375-16X1.75

$4.99

$

In Stock, Qty 8

0

9

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 03839053

PLATE-REINF, SPINDLE

$23.99

$

In Stock, Qty 8

0

12

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

13

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$3.49

$

In Stock, Qty 11

0

15

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 03974153

WIREFORM, BELT FINGER
(Superseded to 03974100)

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$7.49

$

In Stock, Qty 20+

0

19

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$5.49

$

In Stock, Qty 20+

0

20

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

21

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

25

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$20.99

$

In Stock, Qty 20+

0

27

Gravely 07200116

V-BELT, HA-WRAPPED

$69.99

$

In Stock, Qty 14

0
