915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 000101 - 009999) Electrical System Parts Diagram

42" Zero-Turn Mower

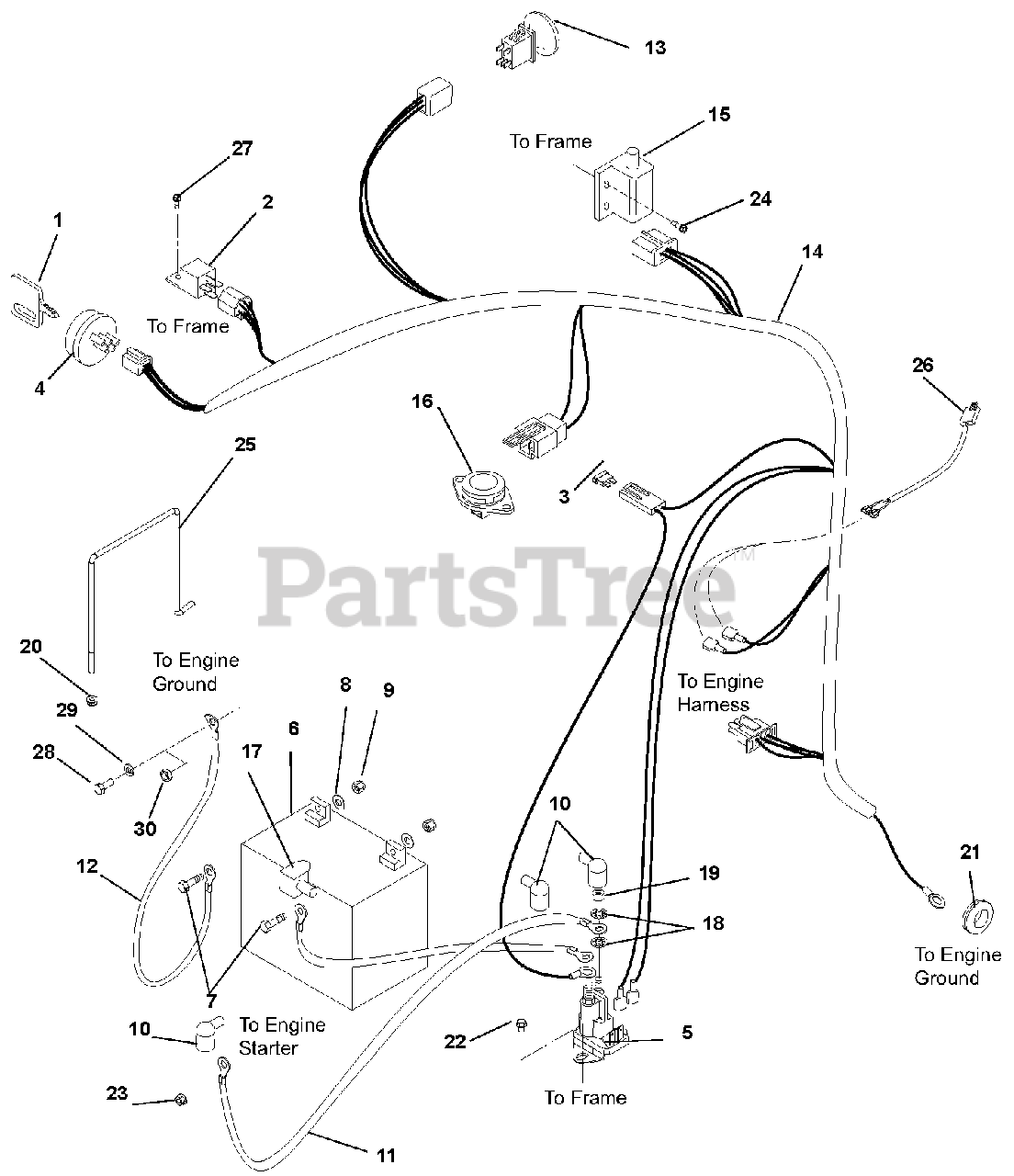

Electrical System Parts Diagram

  • Title

1

Gravely 03927000

Key

$9.99

$

In Stock, Qty 17

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 30 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

4

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$17.99

$

In Stock, Qty 7

0

4

Gravely 04986400

Key, Ignition

Note: Not Shown

$7.99

$

In Stock, Qty 8

0

5

0069690

Solenoid

$

$

Not available

6

Gravely N/A

Battery, Sealed Maintenance free U1-250 (Purchase replacement locally)

Note: (Purchase replacement locally)

$

$

Currently unavailable

7

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

8

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

9

Gravely 06509200

Nut, KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, Qty 5

0

10

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

11

Gravely 03777100

Cable, POS
(Superseded to 04249800)

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 03777000

Ground Cable
(Superseded to 04249900)

$34.99

$

In Stock, only 1 left!

0

13

Gravely 01545600

Switch, Clutch With Retainer

$23.99

$

In Stock, Qty 19

0

14

Gravely 03773900

Harness, Wiring ZT

$102.99

$

In Stock, only 4 left!

0

15

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$15.99

$

In Stock, only 4 left!

0

16

Gravely 03654200

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

19

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

20

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

21

Gravely 07506500

Grommet .125 x 1.000 ID

$3.49

$

In Stock, only 1 left!

0

22

Gravely 07411600

Screw, Tapping .250-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

23

Gravely 06543500

Nut, Locking, Top, Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

24

Gravely 07400038

Screw, 12-14 x .75 HX

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 03781900

Hold Down, Battery

$27.99

$

Usually ships in 4-12 days

0

26

Gravely 03972600

Harness, Clutch

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 07411900

Screw, Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

28

Gravely 05973300

Bolt, Hex M8-1.25 x 20
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06537200

Nut, Locking, Center, Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0
