915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 000101 - 009999) Mower Deck, Belt, And Idlers Parts Diagram

42" Zero-Turn Mower

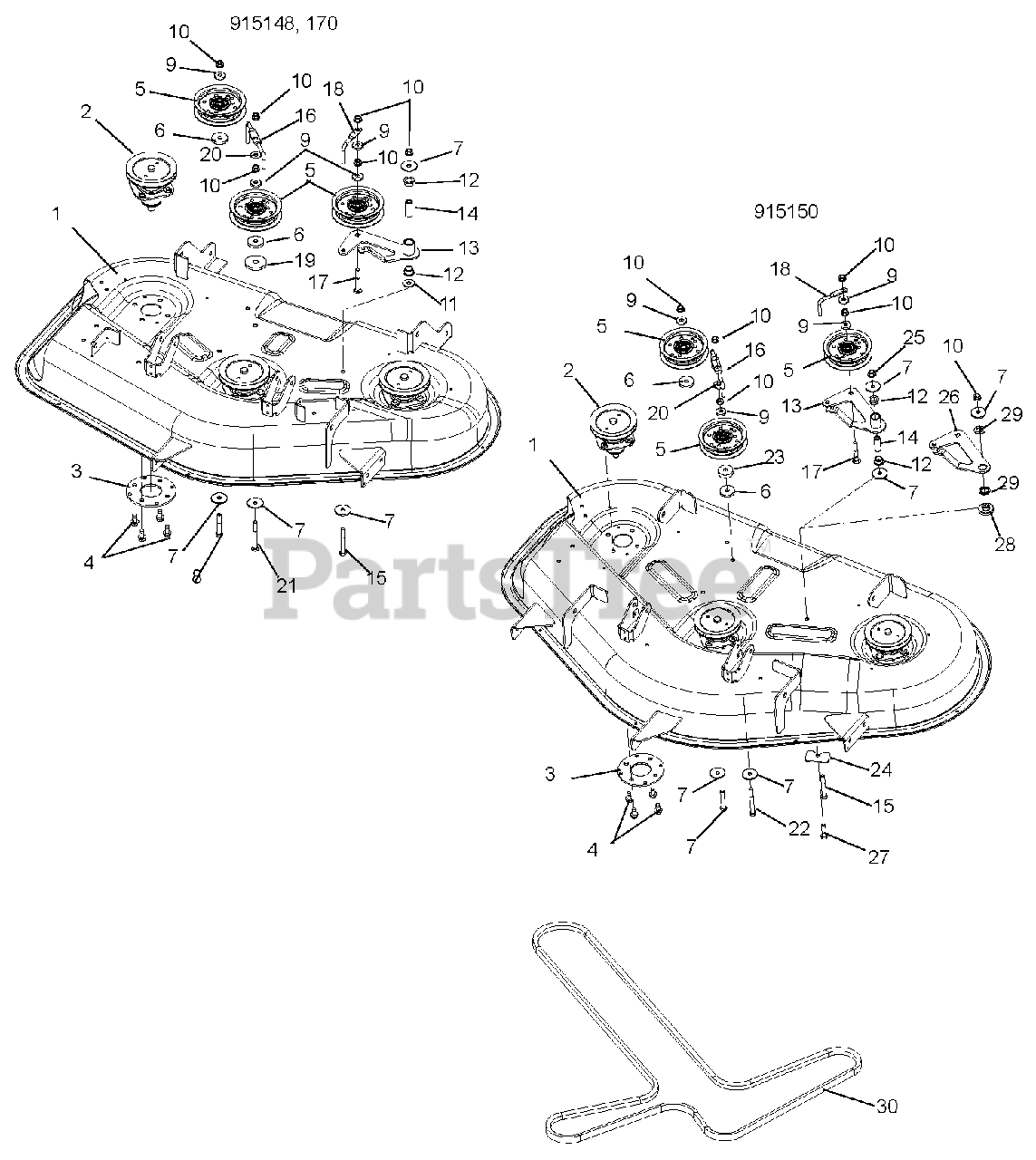

Mower Deck, Belt, And Idlers Parts Diagram

  • Title

1

Gravely 51526200

Deck, 42" (915148, 170)

Note: (915148, 170)

$791.99

$

Usually ships in 4-12 days

0

1

Gravely 51524900

Deck, 50" (915150)

Note: (915150)

$659.99

$

Usually ships in 4-12 days

0

2

Gravely 51520900

Assembly, Spindle (915148, 170)

Note: (915148, 170)

$170.99

$

In Stock, Qty 11

0

2

Gravely 51519500

Assembly, Spindle (915150)

Note: (915150)

$159.99

$

In Stock, Qty 11

0

3

Gravely 03839053

Plate, Spindle

$23.99

$

In Stock, only 3 left!

0

4

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

6

Gravely 06400006

Washer, Flat, Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

Washer, Flat, Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06444000

Washer, Flat, Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06425500

Washer, Flat, Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05500907

Bushing, Flange, .625 x .750 x .500 x 1.00

$6.99

$

In Stock, Qty 20+

0

13

Gravely 04072900

Weldment, Idler Arm

$64.99

$

In Stock, only 1 left!

0

14

Gravely 03763400

Spacer, .375ID x .625 OD x 1.66

$4.99

$

In Stock, Qty 17

0

15

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 03974153

Belt Finger
(Superseded to 03974100)

$11.99

$

In Stock, only 2 left!

0

17

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.50
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

18

Gravely 03828853

Wireform Belt Finger
(Superseded to 03828800)

$9.99

$

In Stock, Qty 11

0

19

Gravely 06443600

Washer, Flat, Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06435900

Washer, Flat, Steel .438 x 1.00 x .083 (915148, 170)
(Superseded to 06401008)

Note: (915148, 170)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05957800

Bolt, Hex .38-16 x 3.00 (915148, 170)
(Superseded to 05901814)

Note: (915148, 170)

$2.99

$

In Stock, Qty 19

0

22

Gravely 05961100

Bolt, Hex .38-16 x 3.25 (915150)
(Superseded to 05901817)

Note: (915150)

$4.99

$

In Stock, Qty 14

0

23

Gravely 01594000

Spacer, .39 x 1.50 x .380 (915150)

Note: (915150)

$3.99

$

In Stock, Qty 16

0

24

Gravely 04061053

Plate, Deck (915150)

Note: (915150)

$21.99

$

Usually ships in 4-12 days

0

25

Gravely 06545500

Nut, Locking, Nylon, Flange .38-16 (915150)
(Superseded to 06500726)

Note: (915150)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 03956000

Idler Arm (915150)

Note: (915150)

$

$

Not available

27

Gravely 05957900

Bolt, Hex .38-16 x 1.50 (915150)
(Superseded to 05901928)

Note: (915150)

$1.99

$

In Stock, Qty 10

0

28

Gravely 03960600

Spacer, Idler Arm (915150)
(Superseded to 05500907)

Note: (915150)

$6.99

$

In Stock, Qty 20+

0

29

Gravely 03960700

Bushing, Idler Arm (915150)

Note: (915150)

$6.99

$

In Stock, Qty 6

0

30

Gravely 07200523

V-Belt, 4L Wrapped (915148, 170)

Note: (915148, 170)

$72.99

$

In Stock, Qty 20+

0

Gravely 07200524

V-Belt, 4L Wrapped (915150)

Note: (915150)

$87.99

$

In Stock, only 3 left!

0
