915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 010000 - 029999) Frame, Hood, Fenders, Casters And Tires (2) Parts Diagram

42" Zero-Turn Mower

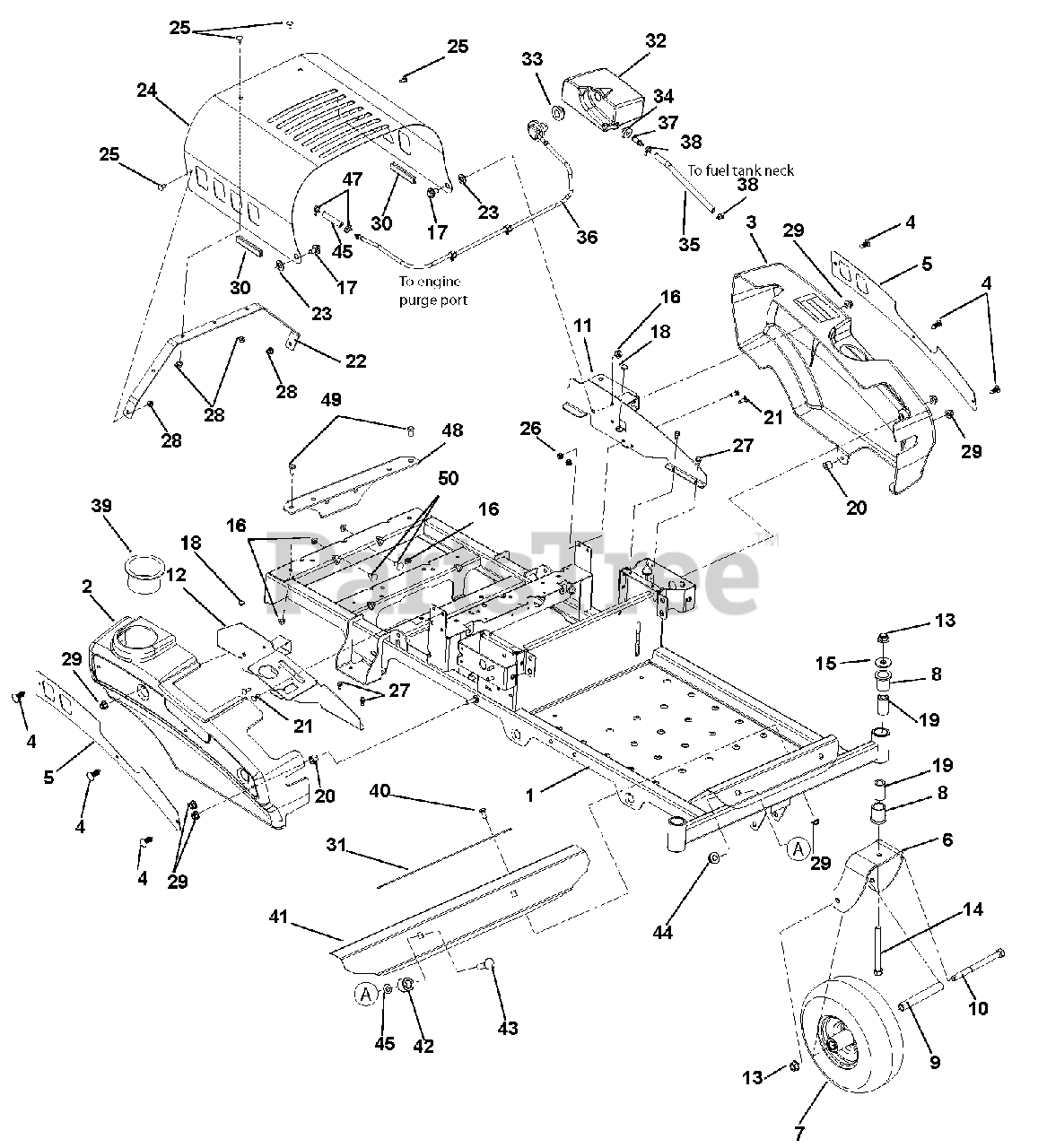

Frame, Hood, Fenders, Casters And Tires (2) Parts Diagram

  • Title

1

Gravely 51525900

KIT, ZOOM/ZT FRAME W/ DECALS

$699.99

$

Usually ships in 4-12 days

0

2

Gravely 03768600

FENDER, RH

$81.99

$

Usually ships in 4-12 days

0

3

Gravely 03768700

FENDER, LH
(Superseded to 51534400)

$98.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03769053

PLATE, FENDER

$40.99

$

In Stock, only 2 left!

0

6

Gravely 03368553

WMT, CASTER FORK

$75.99

$

In Stock, Qty 7

0

7

Gravely 07100124

TIRE/WHEEL ASSY, 11X4-5

$83.99

$

In Stock, Qty 20+

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 04240751

WLDMNT, LH FENDER MOUNT

$86.99

$

Usually ships in 4-12 days

0

12

Gravely 04417651

WMT-RH FENDER MOUNT

Note: (915148, 150)

$94.99

$

Usually ships in 4-12 days

0

Gravely 04194051

WMT-RH FENDER MOUNT

Note: (915146)

$70.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 3 left!

0

18

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

19

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0

20

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

21

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04085753

BRACE, HOOD

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

24

Gravely 04411853

HOOD, ZT

$171.99

$

Usually ships in 4-12 days

0

25

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

26

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

29

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.99

$

In Stock, Qty 9

0

31

Gravely 03833800

GRIP, ADHESIVE (1" X 16" BLK)

Note: (1" x 16" BLK)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 04400000

TANK, FUEL EXPANSION

$50.99

$

Usually ships in 4-12 days

0

33

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

34

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

$2.49

$

In Stock, Qty 20+

0

35

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (7 inches)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 04382500

ASM, FUEL VENT - ZOOM/ZT
(Superseded to 04843800)

Note: (915146)

$36.99

$

Usually ships in 4-12 days

0

Gravely 04382600

ASM, FUEL VENT - ZOOM/ZT
(Superseded to 04745800)

Note: (915148, 150)

$

$

Not available

37

Gravely 04382700

FITTING, STRAIGHT FUEL PLASTIC

$6.49

$

Usually ships in 4-12 days

0

38

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04192700

CUPHOLDER, SNAP-IN 3.75OD

$23.99

$

Usually ships in 4-12 days

0

40

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

41

Gravely 04188353

FOOTREST

$79.99

$

Usually ships in 4-12 days

0

42

Gravely 04192901

TUBE, UPPER CONTROL PIVOT

$7.49

$

Usually ships in 4-12 days

0

43

Gravely 06224800

BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$6.49

$

Usually ships in 4-12 days

0

44

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 06500705

NUT-PUSH, .50

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (as required)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

48

Gravely 03853851

PLATE, BBZ HITCH KIT PLATE

Note: (915148, 150)

$

$

Not available

49

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (915148, 150)

$1.99

$

In Stock, Qty 14

0

50

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

Note: (915148, 150)

$1.99

$

In Stock, Qty 10

0
