915148 (ZT 42) - Gravely 42" Zero-Turn Mower (SN: 030000 - 034999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

42" Zero-Turn Mower

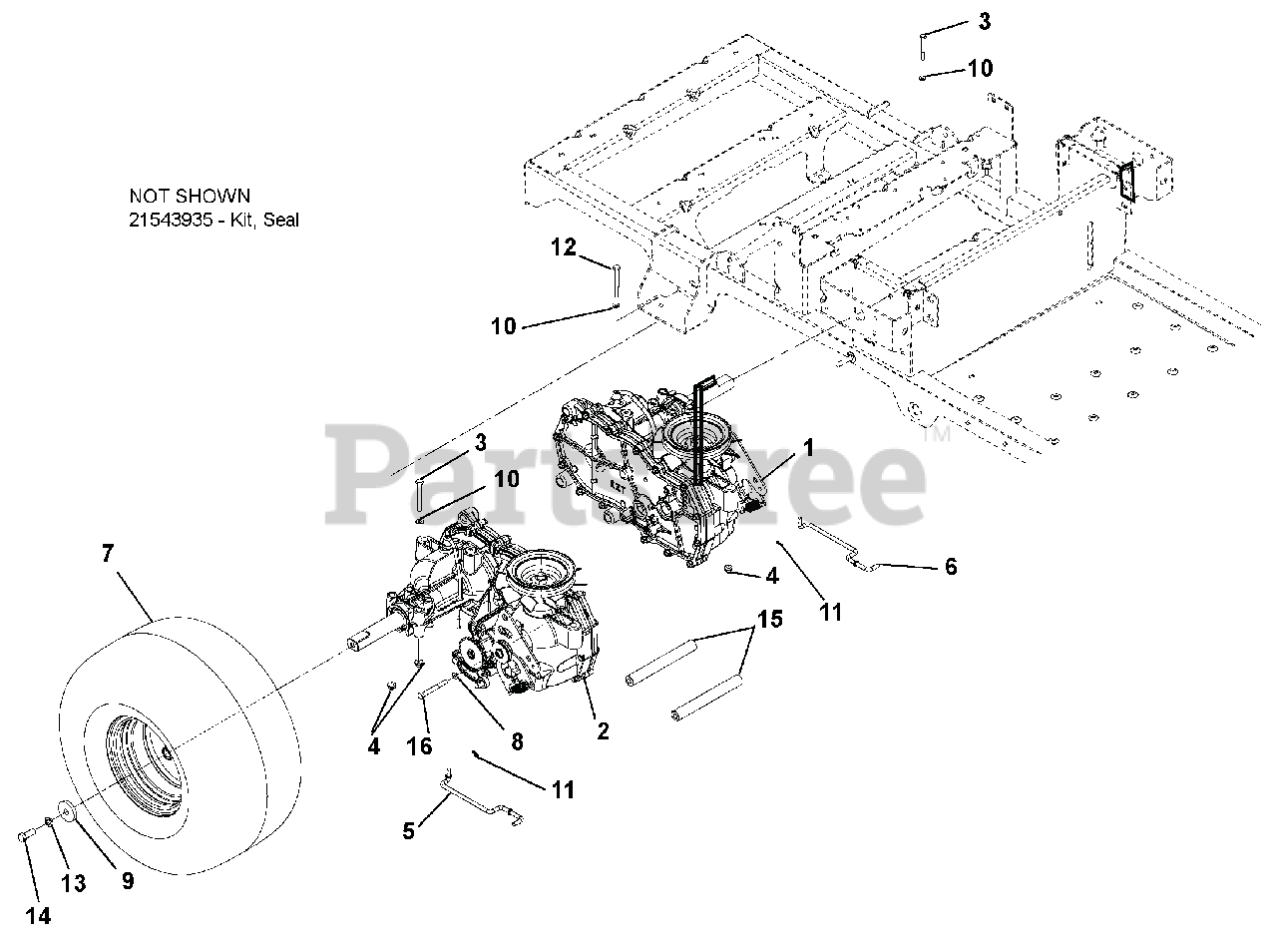

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Gravely 03872300

TRANSAXLE, LH EZT D-SHAFT
(Superseded to 09160551)

Note: (915146, 168)

$7.49

$

Usually ships in 4-12 days

0

Gravely 04382300

TRANSAXLE, LH EZT D-SHAFT LONG

Note: (915148, 150, 170)

$923.99

$

Usually ships in 4-12 days

0

2

Gravely 03872400

TRANSAXLE, RH EZT D-SHAFT
(Superseded to 09160551)

Note: (915146, 168)

$7.49

$

Usually ships in 4-12 days

0

Gravely 04382400

TRANSAXLE, RH EZT D-SHAFT LONG

Note: (915148, 150, 170)

$923.99

$

Usually ships in 4-12 days

0

3

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

4

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 03762700

DUMPVALVE, RH LCZ

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 03762800

DUMPVALVE, LH LCZ

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 07100809

TIRE-ASM 18X6.5-8 4 PLY DSHAFT

Note: (915146, 168)

$136.99

$

Usually ships in 4-12 days

0

Gravely 07100928

TIRE/WHEEL ASSY,18X8.50-8 DHUB
(Superseded to 07101130)

Note: (915148, 170)

$175.99

$

In Stock, Qty 7

0

Gravely 07100929

TIRE/WHEEL ASSY,18X9.50-8 DHUB

Note: (915150)

$188.99

$

Usually ships in 4-12 days

0

8

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

13

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 03762067

SHAFT, TRANSAXLE BRACE
(Superseded to 03762000)

$48.99

$

In Stock, only 4 left!

0

16

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 21543935

KIT, SEALS AND RETAINING

Note: NOT SHOWN

$82.99

$

In Stock, Qty 12

0
