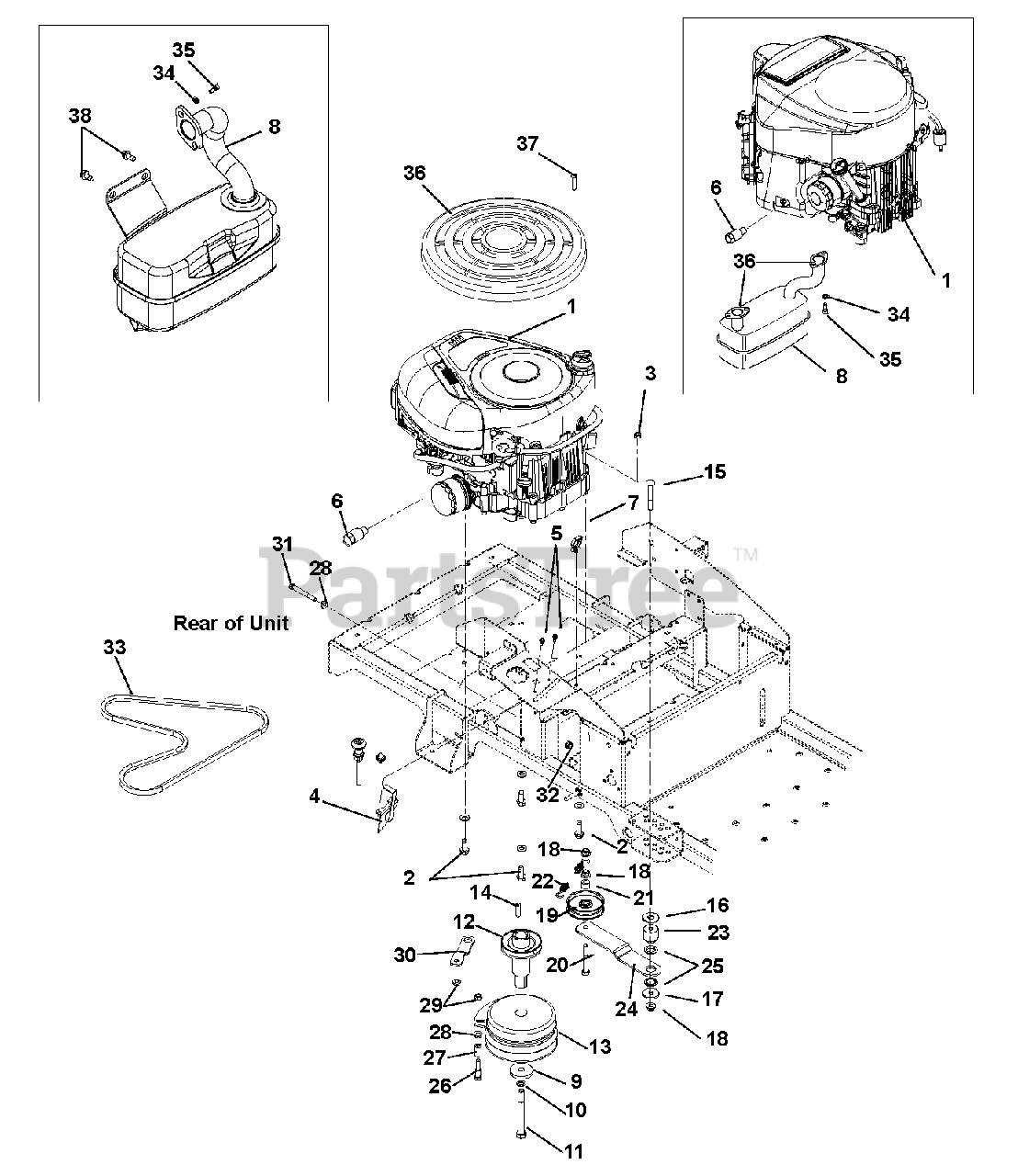

915150 (ZT 50) - Gravely 50" Zero-Turn Mower (SN: 010000 - 029999) Engine, Exhaust, Belts And Idlers Parts Diagram

50" Zero-Turn Mower

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08200638

ENGINE, 16.5HP B&S INTEK

Note: (915146, 168)

$

$

Not available

Gravely 08200717

ENGINE, KAWASAKI FR691 23HP

Note: (915148, 170)

$

$

Not available

Gravely 08200718

ENGINE, KAWASAKI FR730 24HP

Note: (915150)

$

$

Not available

2

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

Note: (915146, 168)

$3.49

$

In Stock, Qty 20+

0

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

Note: (915148, 150, 170)

$2.99

$

In Stock, Qty 19

0

3

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

Note: (915146, 168)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00619600

THROTTLE/CHOKE CABLE

Note: (915168)

$65.99

$

In Stock, Qty 6

0

Gravely 06900520

CABLE, CHOKE/THROTTLE COMBO
(Superseded to 51532800)

Note: (915148, 150, 170)

$66.99

$

In Stock, Qty 6

0

Gravely 06900521

CABLE, THROTTLE
(Superseded to 00619600)

Note: (915146)(Not Shown)

$65.99

$

In Stock, Qty 6

0

5

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 03943600

DRAIN, OIL

$15.99

$

In Stock, Qty 7

0

7

Gravely 00390100

WIRE CLIP

Note: (for .25" hole) (148, 150, 170)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 03946900

MUFFLER, TWIN
(Superseded to 04749700)

Note: (915148, 150, 170)

$55.99

$

In Stock, Qty 10

0

Gravely 04058800

MUFFLER, B&S 500 BBZ
(Superseded to 51521000)

Note: (915146, 168)

$148.99

$

In Stock, only 1 left!

0

9

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, Qty 11

0

12

Gravely 07338600

WLDMT, CRANKSHAFT EXTENSION

$87.99

$

Usually ships in 4-12 days

0

13

Gravely 03972700

CLUTCH, 105 FT*LB MONO POLE

$263.99

$

In Stock, only 1 left!

0

14

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 12

0

15

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07300221

PULLEY, ENGINE CLUTCH 03608

$

$

Not available

20

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

22

Gravely 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

23

Gravely 03961100

SPACER, GROUND DRIVE IDLER

$6.49

$

In Stock, Qty 12

0

24

Gravely 03961067

IDLER ARM, GROUND DRIVE
(Superseded to 03961000)

$

$

Not available

25

Gravely 03960700

BUSHING, IDLER ARM

$6.99

$

In Stock, Qty 12

0

26

Gravely 05952700

BLT-HEX .25-20X2.25 GR8 YWZC
(Superseded to 05901638)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.99

$

In Stock, only 4 left!

0

28

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 03956751

BRKT, CLUTCH STOP

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

32

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

34

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (915148, 150, 170 )

$1.49

$

In Stock, Qty 20+

0

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (915146, 168)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (915148, 150, 170)

$2.99

$

In Stock, Qty 20+

0

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (915146, 168)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 03276500

GUARD, BRIGGS ENGINE (SINGLE)

Note: (915146, 168)

$31.99

$

Usually ships in 4-12 days

0

37

Gravely 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

Note: (915146, 168)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915146, 168)

$0.99

$

In Stock, Qty 20+

0
