915159 - Ariens Zoom 42" Zero-Turn Mower, 22hp Kohler (SN: 035000 - 044999) Mower Deck, Belt And Idlers Parts Diagram

Zoom 42" Zero-Turn Mower, 22hp Kohler

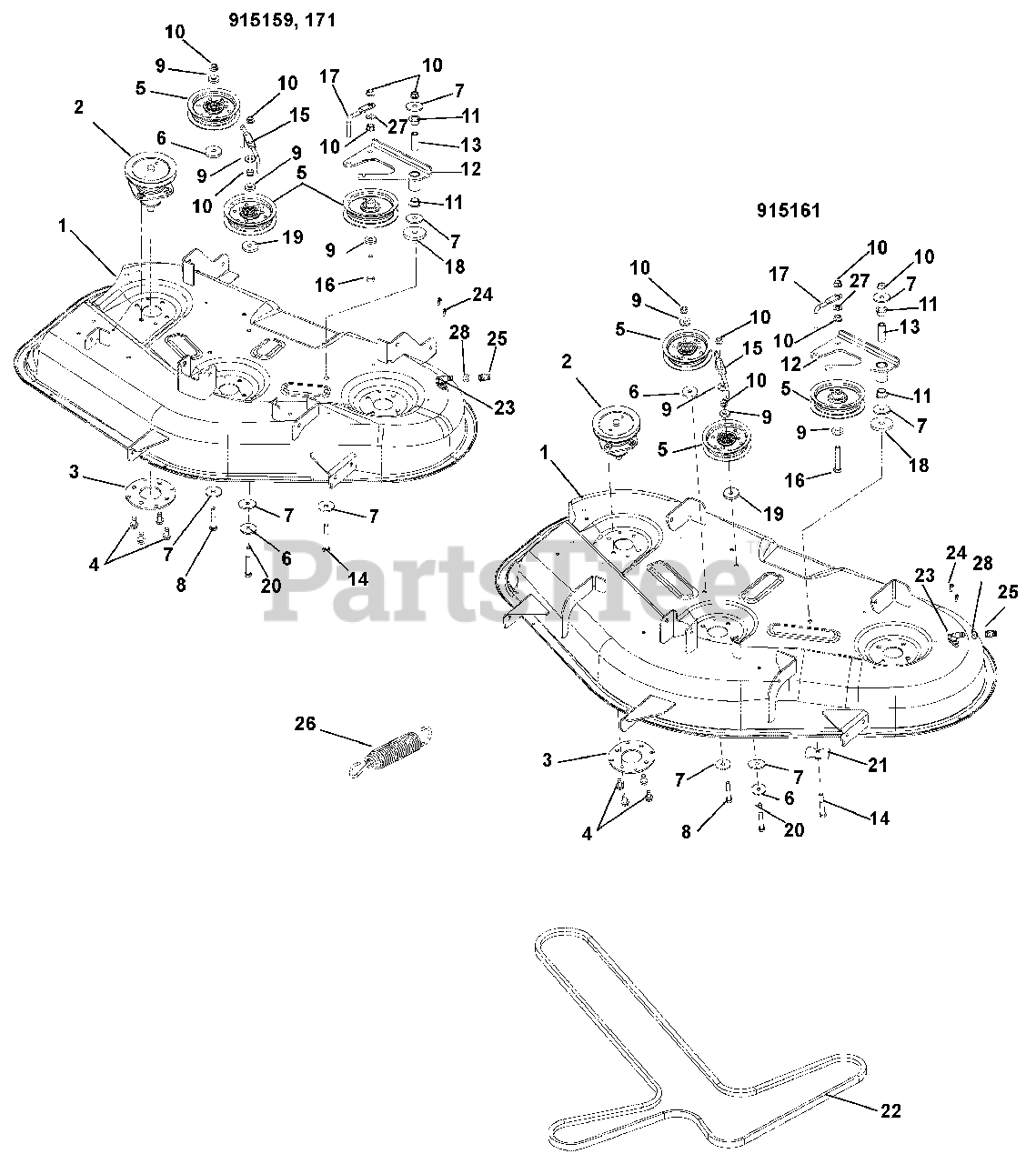

Mower Deck, Belt And Idlers Parts Diagram

  • Title

1

Ariens 51526300

KIT, 42" ARIENS DECK W/DECALS

Note: (915159, 171)

$522.99

$

Usually ships in 4-12 days

0

1

Ariens 51525000

KIT, 50" ARIENS DECK W/DECALS

Note: (915161)

$761.99

$

Usually ships in 4-12 days

0

2

Ariens 51520900

KIT, DECK SPINDLE ASM (42)

Note: (915159, 171)

$148.99

$

In Stock, only 2 left!

0

2

Ariens 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (915161)

$153.99

$

In Stock, Qty 5

0

3

Ariens 03839059

PLATE-REINF, SPINDLE

$25.99

$

In Stock, only 2 left!

0

4

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

6

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

7

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

Note: (915159, 171)

$3.49

$

In Stock, Qty 20+

0

7

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

Note: (915161)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

12

Ariens 04430867

IDLER ARM
(Superseded to 04430851)

$56.99

$

Usually ships in 4-12 days

0

13

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 18

0

14

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 03974159

WIREFORM, BELT FINGER
(Superseded to 03974100)

$10.99

$

In Stock, Qty 10

0

16

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

17

Ariens 03828859

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

18

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

19

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

20

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 04061059

PLATE-DECK REINF.

Note: (915161)

$12.99

$

Usually ships in 4-12 days

0

22

Ariens 07200523

V-BELT, 4L-WRAPPED

Note: (915159, 171)

$68.99

$

In Stock, Qty 19

0

22

Ariens 07200524

V-BELT, 4L-WRAPPED

Note: (915161)

$79.99

$

In Stock, only 1 left!

0

23

Ariens 04428900

ASSY, WASHOUT PORT W/ O-RING

$9.99

$

Usually ships in 4-12 days

0

24

Ariens 07400103

@SCR-TAP .25-20X.62 HWH TR YWZ
(Superseded to 07400135)

$2.49

$

In Stock, only 3 left!

0

25

Ariens 04396500

COUPLING, QUICK DISCONNECT

$21.99

$

In Stock, only 3 left!

0

26

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 9

0

27

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 05600513

O-RING .362X.103X.568

$3.49

$

Usually ships in 4-12 days

0
