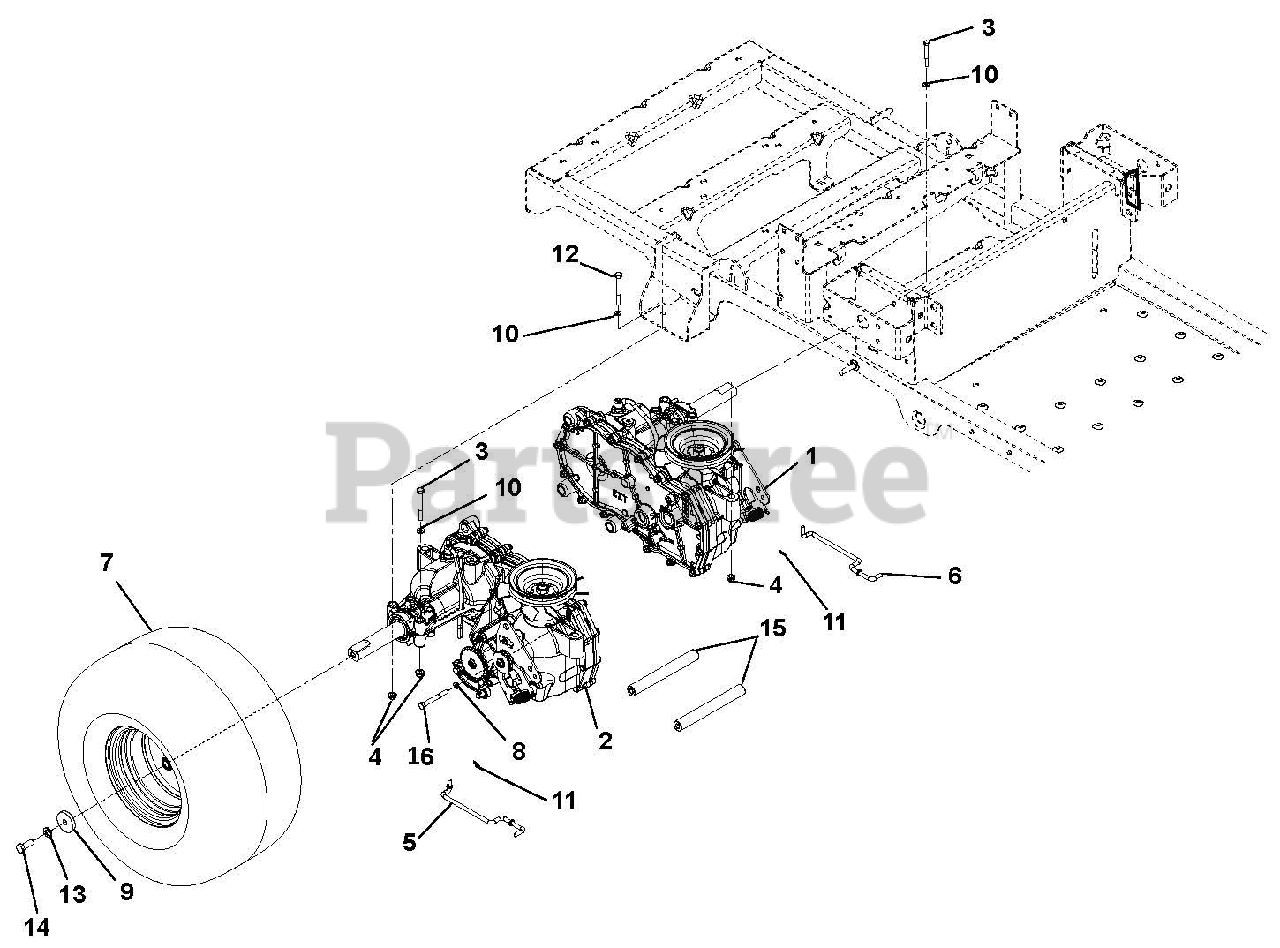

915159 - Ariens Zoom 42" Zero-Turn Mower, 22hp Kohler (SN: 045000 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom 42" Zero-Turn Mower, 22hp Kohler

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Ariens 03872300

TRANSAXLE, LH EZT D-SHAFT
(Superseded to 09160551)

Note: (915189, 193)

$7.49

$

Usually ships in 4-12 days

0

1

Ariens 04382300

TRANSAXLE, LH EZT D-SHAFT LONG

Note: (915159, 161, 171)

$923.99

$

Usually ships in 4-12 days

0

2

Ariens 03872400

TRANSAXLE, RH EZT D-SHAFT
(Superseded to 09160551)

Note: (915189, 193)

$7.49

$

Usually ships in 4-12 days

0

2

Ariens 04382400

TRANSAXLE, RH EZT D-SHAFT LONG

Note: (915159, 161, 171)

$923.99

$

In Stock, only 1 left!

0

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 03762700

DUMPVALVE, RH LCZ

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 03762800

DUMPVALVE, LH LCZ

$29.99

$

Usually ships in 4-12 days

0

7

Ariens 07100809

TIRE-ASM 18X6.5-8 4 PLY DSHAFT

Note: (915189, 193)

$136.99

$

Usually ships in 4-12 days

0

7

Ariens 07100928

TIRE/WHEEL ASSY,18X8.50-8 DHUB
(Superseded to 07101130)

Note: (915159, 171)

$175.99

$

In Stock, only 3 left!

0

7

Ariens 07100929

TIRE/WHEEL ASSY,18X9.50-8 DHUB

Note: (915161)

$188.99

$

Usually ships in 4-12 days

0

8

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

9

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

12

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

14

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 03762067

SHAFT, TRANSAXLE BRACE
(Superseded to 03762000)

$48.99

$

In Stock, Qty 6

0

16

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0
