915161 - Ariens Zoom 50" Zero-Turn Mower, 25hp Kohler (SN: 010000 - 029999) Fuel Tank Parts Diagram

Zoom 50" Zero-Turn Mower, 25hp Kohler

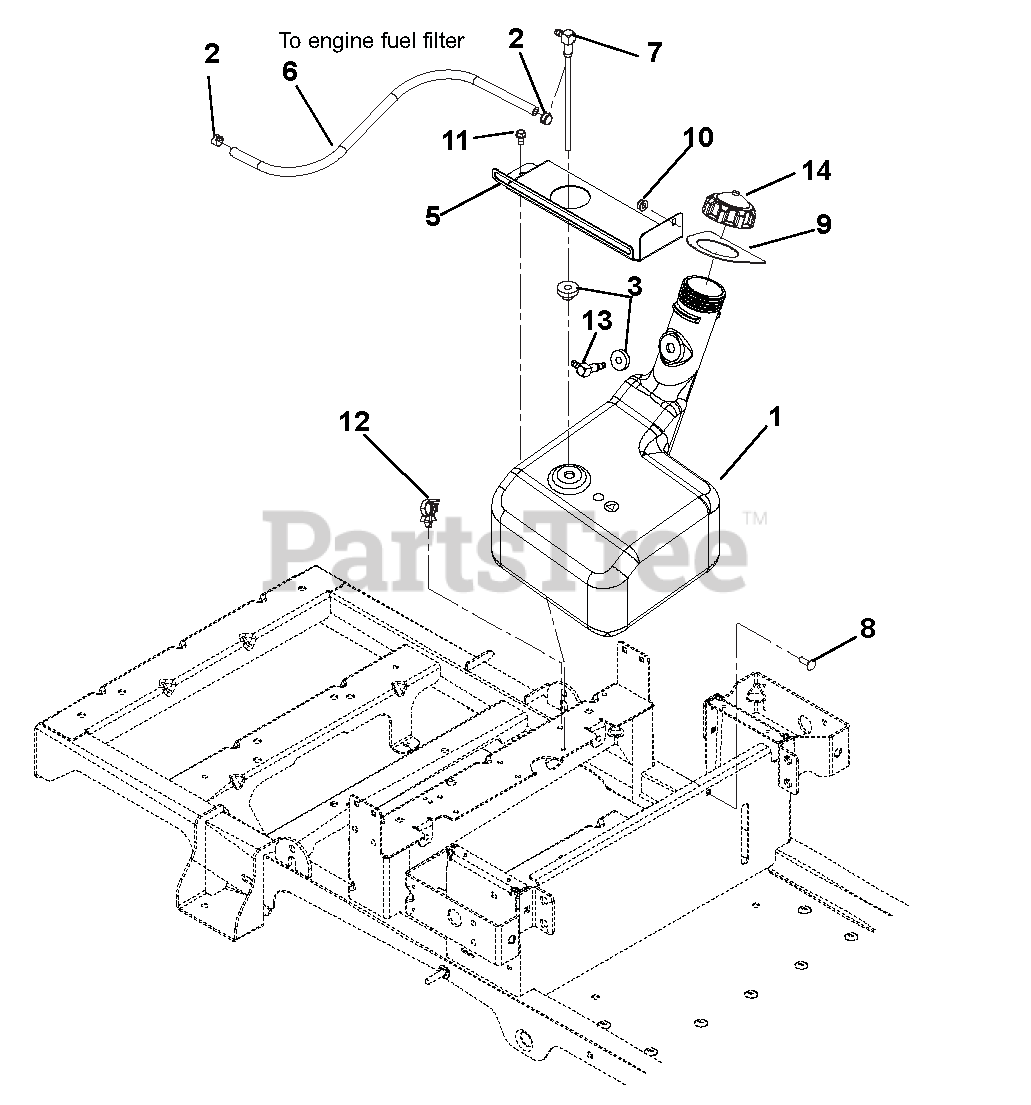

Fuel Tank Parts Diagram

  • Title

1

Ariens 04191900

TANK, ZOOM/WAW NON-PERM. FUEL
(Superseded to 05244700)

Note: (915157, 159, 161, 169, 171)

$166.99

$

Usually ships in 4-12 days

0

1

Ariens 03761700

FUEL TANK

Note: (915322, 323)

$249.99

$

Usually ships in 4-12 days

0

2

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 12

0

3

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: (915157, 159, 161)

$2.49

$

In Stock, Qty 18

0

4

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: (915322, 323)

$2.49

$

In Stock, Qty 18

0

5

Ariens 03771451

BRKT, TANK STRAP

$19.99

$

Usually ships in 4-12 days

0

6

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (as required)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 04333600

FUEL PICK UP TUBE

$16.99

$

In Stock, only 2 left!

0

8

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 8

0

9

Ariens 03795700

SEAL-TANK NECK

$3.99

$

In Stock, only 2 left!

0

10

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, only 4 left!

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00390100

WIRE CLIP

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 04382800

FITTING, 90 DEG FUEL-PLASTIC

Note: (915157, 159, 161, 169, 171)

$6.49

$

In Stock, Qty 8

0

14

Ariens 04238500

CAP, 2.25" ONE-WAY VENT FUEL
(Superseded to 09190200)

Note: (915157, 159, 161, 169, 171)

$21.99

$

In Stock, Qty 12

0

14

Ariens 01538400

FUEL CAP

Note: (915322, 323)

$16.99

$

In Stock, Qty 14

0
