915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Frame, Hood, Footrest, Casters and Tires Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

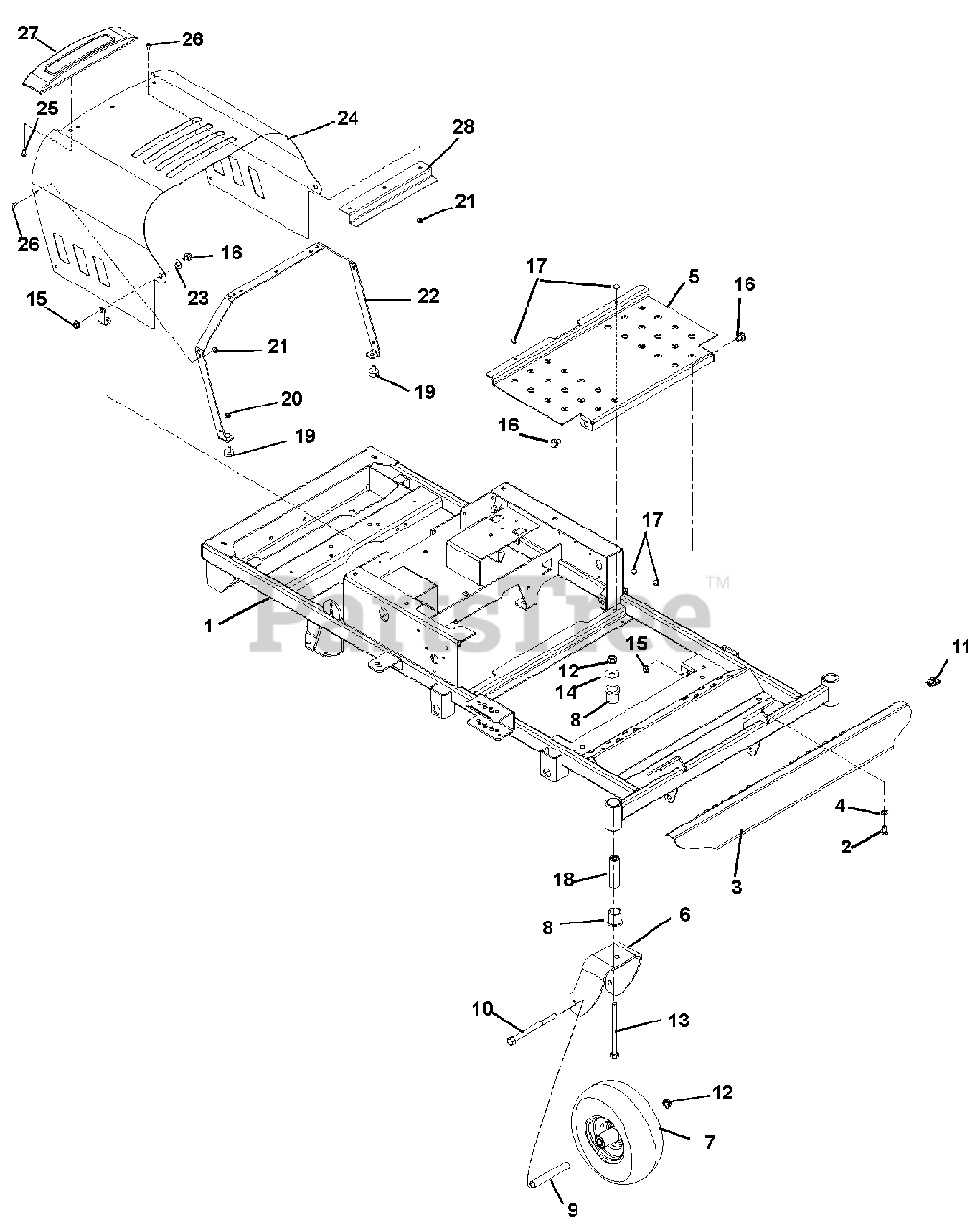

Frame, Hood, Footrest, Casters and Tires Parts Diagram

  • Title

1

Gravely 03998151

WMT, FRAME ZT XL (2010)

$1545.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01922953

WMT, FOOTREST

$170.99

$

Usually ships in 4-12 days

0

4

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

5

Gravely 01923251

DECK ACCESS PANEL

$87.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

WMT, CASTER FORK

$72.99

$

In Stock, only 3 left!

0

7

Gravely 07100124

TIRE/WHEEL ASSY, 11X4-5

$74.99

$

In Stock, Qty 13

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 18

0

11

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

12

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 19

0

14

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 13

0

15

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

17

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 2 left!

0

18

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$5.99

$

In Stock, Qty 20+

0

19

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

20

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

22

Gravely 02985453

BRKT-HOOD BRACE

$46.99

$

Usually ships in 4-12 days

0

23

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 17

0

24

Gravely 02970753

HOOD-ZTXL
(Superseded to 04045253)

$140.99

$

Usually ships in 4-12 days

0

25

Gravely 07400032

SCR-.25X.62 PN HD BOSSSCREW YZ

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

27

Gravely 02970500

TRIM-ZTXL HOOD GRAVELY

$15.99

$

Usually ships in 4-12 days

0

28

Gravely 04045151

BRKT, ENGINE GUARD

$45.99

$

Usually ships in 4-12 days

0
