915162 (ZT XL 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 009999) Fuel Tanks Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

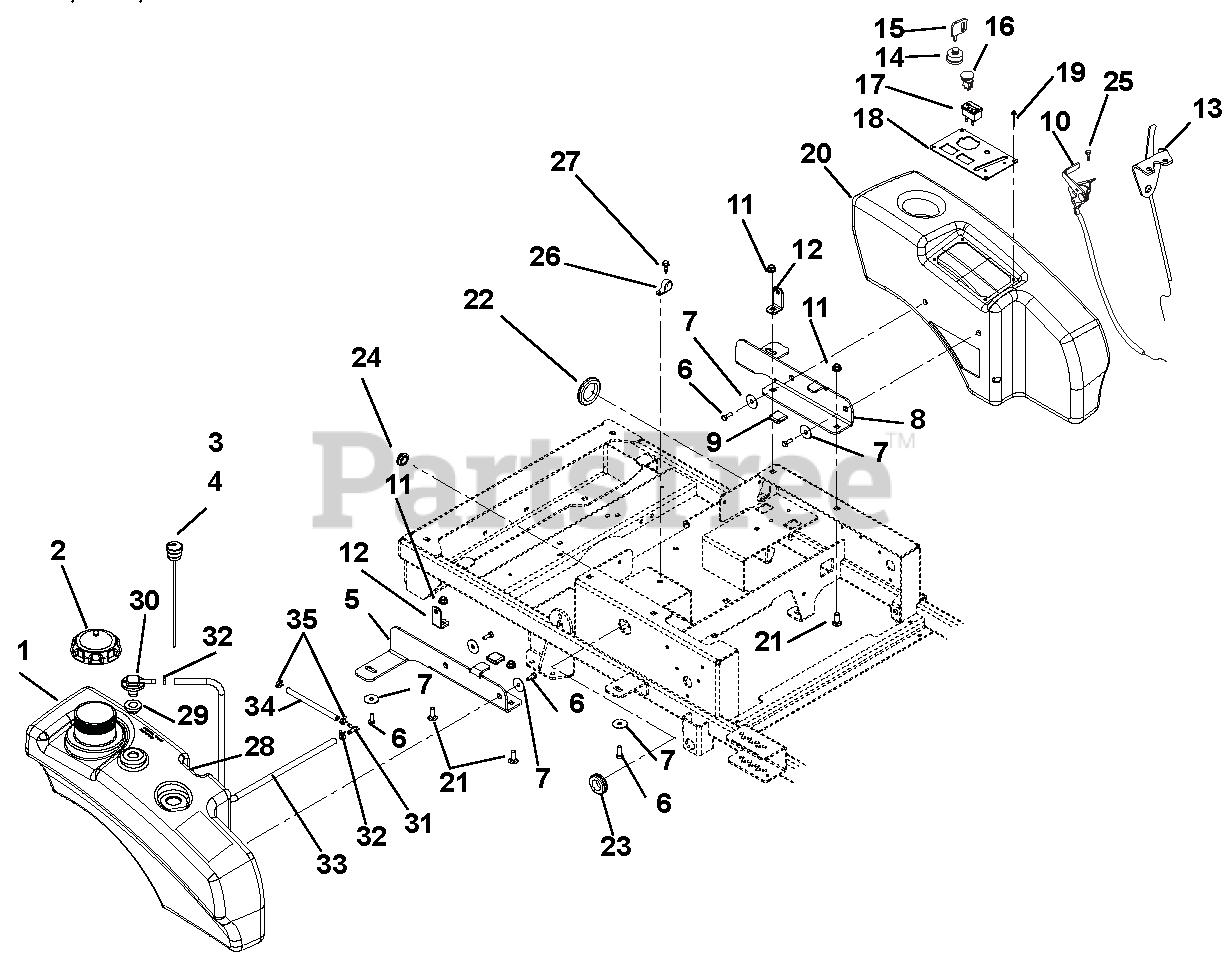

Fuel Tanks Parts Diagram

  • Title

1

Gravely 51522200

KIT, XL TANK REPLACEMENT

Note: (101 - 2499)

$271.99

$

Usually ships in 4-12 days

0

Gravely 51522300

KIT, XL TANK REPLACEMENT - EPA

Note: (2500 - up)

$

$

Not available

2

Gravely 03859100

CAP, FUEL

Note: (101 - 2499)

$28.99

$

In Stock, only 2 left!

0

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

Note: (2500 - up)

$33.99

$

Usually ships in 4-12 days

0

3

Gravely 07500029

GAUGE, REMOTE FUEL 10.0"
(Superseded to 07500309)

$47.99

$

In Stock, Qty 9

0

4

Gravely 07500034

GROMMET, FUEL GAGE

$6.49

$

In Stock, Qty 12

0

5

Gravely 02973351

BRKT, RH REAR TANK MOUNT

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 02973451

BRKT, LH REAR TANK MOUNT

$43.99

$

Usually ships in 4-12 days

0

9

Gravely 07500037

GRIP, RUBBER (1.0X1.0X.187)BLK

$

$

Not available

10

Gravely 06900423

CABLE, XL THROTTLE

$40.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03200051

BRKT, HOOD PIVOT

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 06900424

CABLE, XL CHOKE

$39.99

$

In Stock, only 1 left!

0

14

Gravely 01588300

KEY SWITCH

$28.99

$

In Stock, Qty 11

0

15

Gravely 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 16

0

16

Gravely 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 19

0

17

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

18

Gravely 03887051

CONTROL PANEL

$31.99

$

Usually ships in 4-12 days

0

19

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 12

0

20

Gravely 02967400

FENDER, XL

$147.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

22

Gravely 07500017

GROMMET 1.70ID X 2.0OD

$5.49

$

Usually ships in 4-12 days

0

23

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

24

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

26

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

28

Gravely 04280700

ASM, FUEL PICK-UP - XL

Note: (XL)

$35.99

$

Usually ships in 4-12 days

0

29

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: (2500 - up)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 04246000

VENT, ROLL-OVER (.25"ID HOSE)

Note: (.25" ID hose) (2500 - up)

$20.99

$

In Stock, only 1 left!

0

31

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

Note: (2500 - up)

$14.99

$

Usually ships in 4-12 days

0

32

Gravely 03278800

CLAMP, FUEL LINE

Note: (2500 - up)

$1.49

$

In Stock, Qty 8

0

33

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (2500 - up)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (2500 - up)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 04097700

CLAMP-HOSE, SPRING .188

Note: (2500 - up)

$1.49

$

Usually ships in 4-12 days

0
