915163 - Ariens Zoom XL 42" Zero-Turn Mower, 22hp Kohler (SN: 020000 - 020999) Mower Deck Lift Parts Diagram

Zoom XL 42" Zero-Turn Mower, 22hp Kohler

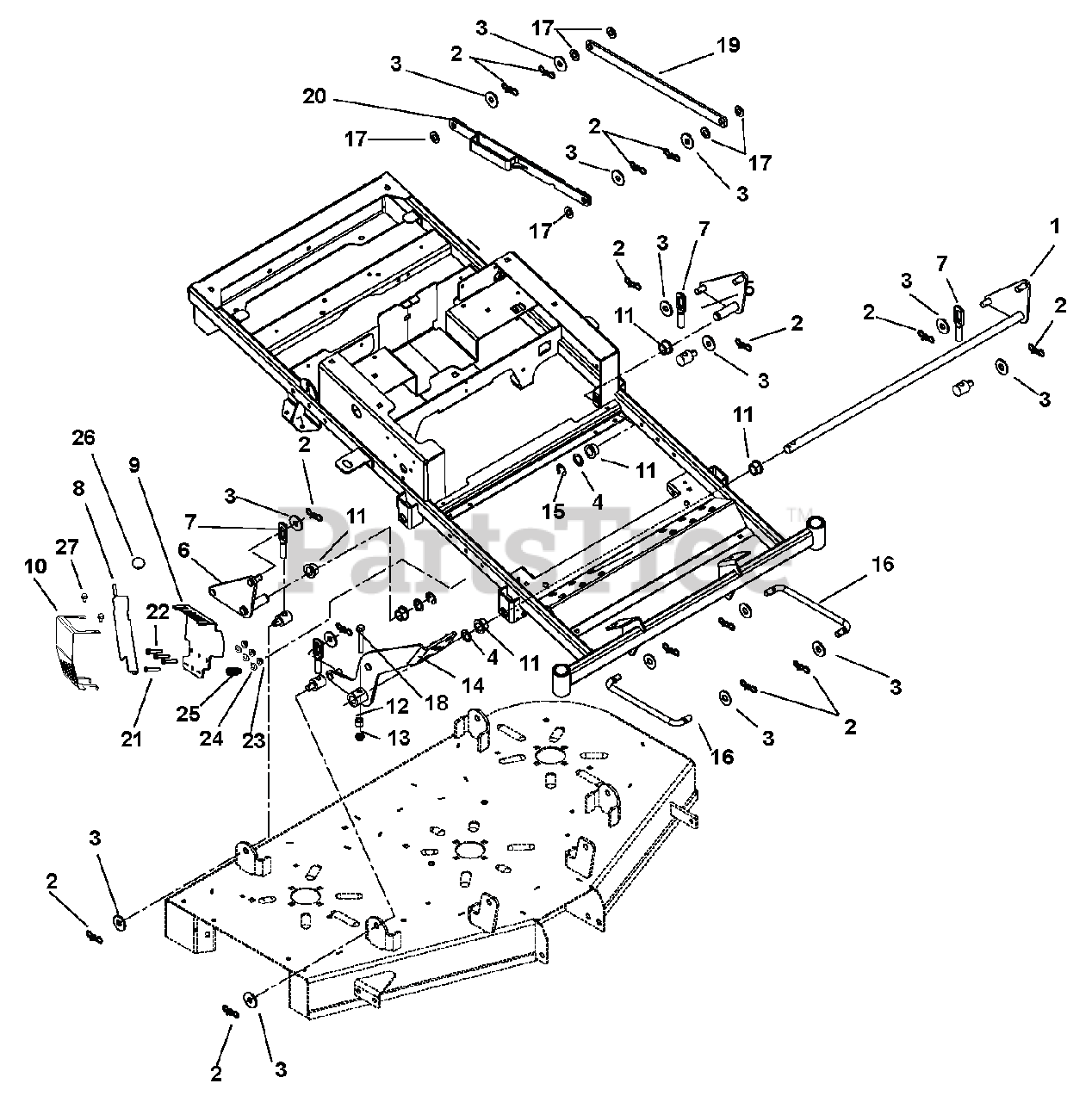

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 02969200

WMT-DECK PIVOT FRONT

$102.99

$

In Stock, only 1 left!

0

2

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 13

0

4

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

5

Ariens 02969400

WMT-DECK PIVOT ZTXL REAR LH

$155.99

$

Usually ships in 4-12 days

0

6

Ariens 02969300

WMT-DECK PIVOT ZTXL REAR RH

$98.99

$

Usually ships in 4-12 days

0

7

Ariens 03272700

ASM, DECK LINK

$79.99

$

In Stock, Qty 9

0

8

Ariens 04555567

LEVER, HOC WLDMT XL

$

$

Not available

9

Ariens 04555651

BRACKET, HOC XL

$50.99

$

Usually ships in 4-12 days

0

10

Ariens 04574451

GUARD, PLATE STYLED HOC XL

$56.99

$

Usually ships in 4-12 days

0

11

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 9

0

12

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 15

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 02969151

WMT-ZTXL FOOT PEDAL

$126.99

$

Usually ships in 4-12 days

0

15

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

In Stock, only 3 left!

0

16

Ariens 02004500

LINK, DRAG

$17.99

$

In Stock, Qty 6

0

17

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 17

0

18

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 02973051

LINK, LIFT

$25.99

$

Usually ships in 4-12 days

0

20

Ariens 04567300

HOC, LINK RETAINING XL

$

$

Not available

21

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

23

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

25

Ariens 08337500

SPRING, COMPRESSION

$

$

Not available

26

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, only 4 left!

0

27

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
