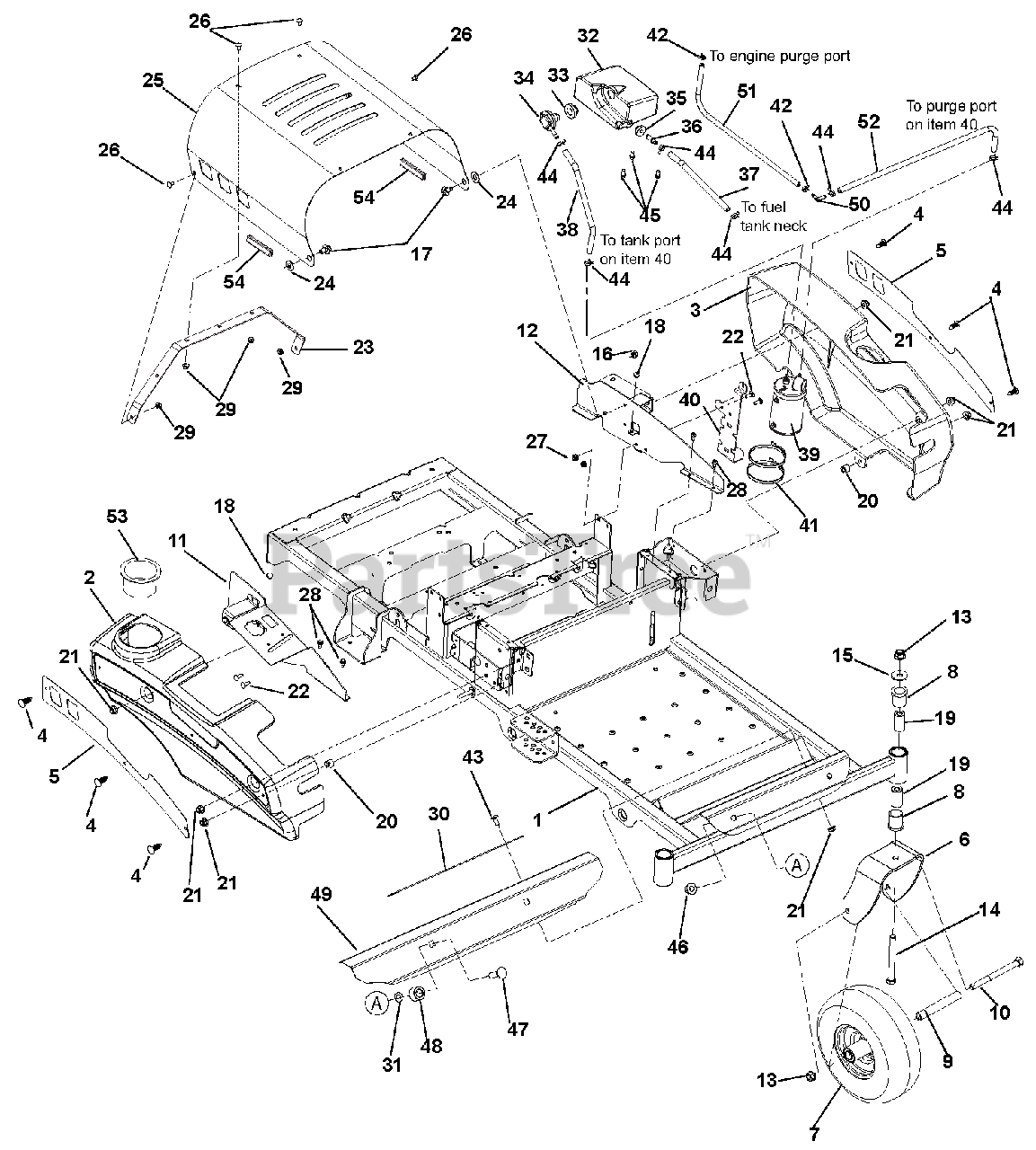

915170 (ZT 42) - Gravely 42" Zero-Turn Mower, CARB (SN: 000101 - 009999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

42" Zero-Turn Mower, CARB

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 03896851

WMT, BBZ FRAME
(Superseded to 51525800)

$

$

Not available

2

Gravely 03768600

FENDER, RH

$81.99

$

Usually ships in 4-12 days

0

3

Gravely 03768700

FENDER, LH
(Superseded to 51534400)

$98.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03769053

PLATE, FENDER

$40.99

$

In Stock, only 2 left!

0

6

Gravely 03368553

WMT, CASTER FORK

$75.99

$

In Stock, Qty 7

0

7

Gravely 07100801

TIRE/WHL ASM, FRONT

$75.99

$

In Stock, Qty 5

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 04194051

WMT-RH FENDER MOUNT

$70.99

$

Usually ships in 4-12 days

0

12

Gravely 04240751

WLDMNT, LH FENDER MOUNT

$86.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

BOLT-SHLDR .375-16X.150

$4.99

$

In Stock, only 3 left!

0

18

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

19

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0

20

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 04085753

BRACE, HOOD

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04277453

HOOD, ZOOM/ZT

$

$

Not available

26

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

27

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

30

Gravely 03833800

GRIP, ADHESIVE (1" X 16" BLK)

Note: (1" x 16" BLK)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06500705

NUT-PUSH, .50

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 04215900

TANK, ZOOM/WAW FUEL EXP.
(Superseded to 04400000)

$50.99

$

Usually ships in 4-12 days

0

33

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

34

Gravely 04246000

VENT, ROLL-OVER (.25"ID HOSE)

Note: (.25"ID Hose)

$21.99

$

In Stock, only 4 left!

0

35

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

36

Gravely 04182300

FITTING, STRAIGHT FUEL

$

$

Not available

37

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04082500

CARBON CANISTER, 300CC

$64.99

$

Usually ships in 4-12 days

0

40

Gravely 04086551

BRKT-MOUNT, CANISTER BBZ

$19.99

$

Usually ships in 4-12 days

0

41

Gravely 04102900

P-PLASTIC TIE STRAP LARGE

$

$

Not available

42

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

43

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

44

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

45

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.99

$

Usually ships in 4-12 days

0

46

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 06224800

BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$6.49

$

Usually ships in 4-12 days

0

48

Gravely 04192901

TUBE, UPPER CONTROL PIVOT

$7.49

$

Usually ships in 4-12 days

0

49

Gravely 04188353

FOOTREST

$79.99

$

Usually ships in 4-12 days

0

50

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$15.99

$

Usually ships in 4-12 days

0

51

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (915168)

$1.49

$

In Stock, Qty 20+

0

Hose, .188 Low Perm Bulk (915170)

Note: (915170)

$

$

Not available

52

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (915168)

$1.49

$

In Stock, Qty 20+

0

Hose, .25 Low Perm Bulk Gas (915170)

Note: (915170)

$

$

Not available

53

Gravely 04192700

CUPHOLDER, SNAP-IN 3.75OD

$23.99

$

Usually ships in 4-12 days

0

54

Gravely 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.99

$

In Stock, Qty 9

0
