915170 (ZT 42) - Gravely 42" Zero-Turn Mower, CARB (SN: 030000 - 034999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

42" Zero-Turn Mower, CARB

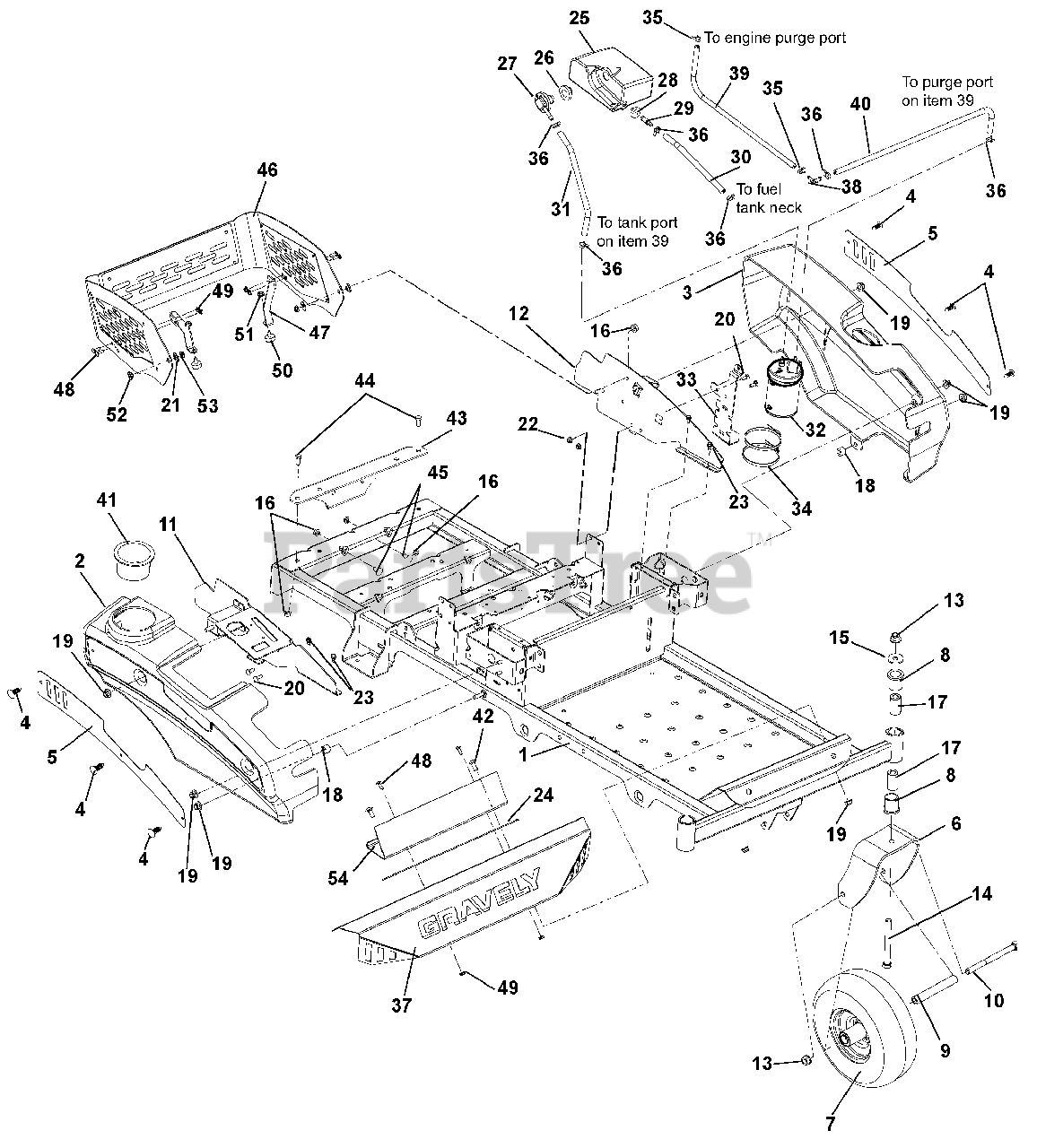

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 51525900

Weldment, Frame

$699.99

$

Usually ships in 4-12 days

0

2

Gravely 03768600

Fender, Right Hand

$81.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$98.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

Rivet, Nylon

$1.49

$

In Stock, Qty 5

0

5

Gravely 04717553

Plate, Fender

$23.99

$

In Stock, only 3 left!

0

6

Gravely 03368553

Fork, Caster

$75.99

$

In Stock, Qty 13

0

7

Gravely 07100124

Wheel/Tire Assembly, 11 x 4-5

$83.99

$

In Stock, Qty 20+

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 04717353

Weldment, Fender Mount Right Hand

$116.99

$

Usually ships in 4-12 days

0

12

Gravely 04717253

Weldment, Fender Mount Left Hand

$92.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00363100

Spacer, Caster

$7.99

$

In Stock, Qty 20+

0

18

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$6.49

$

In Stock, Qty 19

0

19

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$1.49

$

In Stock, Qty 8

0

21

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.99

$

In Stock, Qty 6

0

23

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03833800

Grip, Adhesive (1" x 16" BLK)

Note: (1" x 16" BLK)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 04400000

Tank, ZT/Waw Fuel Exp.

$50.99

$

Usually ships in 4-12 days

0

26

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.99

$

In Stock, Qty 20+

0

27

Gravely 04246000

Vent, Roll-Over (.25" ID Hose)

Note: (.25" ID Hose)

$21.99

$

In Stock, only 2 left!

0

28

Gravely 07500206

Bushing, Flange .375 x 1.062 x .625 R

$2.49

$

In Stock, Qty 18

0

29

Gravely 04382700

Fitting, Straight Fuel

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

31

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$1.49

$

In Stock, Qty 20+

0

32

Gravely 04082500

Carbon Canister, 300CC

$64.99

$

Usually ships in 4-12 days

0

33

Gravely 04086551

Bracket, Mount, Canister BBZ

$19.99

$

Usually ships in 4-12 days

0

34

Gravely 04102900

Plastic Tie Strap Large

$

$

Not available

35

Gravely 04097700

Clamp, Hose Spring .188

$1.99

$

Usually ships in 4-12 days

0

36

Gravely 03278800

Clamp, Hose Wire .490/.510 x .116

$1.49

$

In Stock, Qty 19

0

37

Gravely 04717053

Foot Rest

$65.99

$

Usually ships in 4-12 days

0

38

Gravely 04097000

Fitting, 3/16 x 1/4 90 Deg Vac

$15.99

$

Usually ships in 4-12 days

0

39

Gravely 03375900

Hose, .188 Low Perm Bulk (915168)

Note: (915168)

$1.49

$

In Stock, Qty 10

0

Gravely 03375900

Hose, .188 Low Perm Bulk (915170)

Note: (915170)

$1.49

$

In Stock, Qty 10

0

40

Gravely 03278100

Hose, .25 Low Perm Bulk Gas (915168)

Note: (915168)

$1.49

$

In Stock, Qty 20+

0

Gravely 03278100

Hose, .25 Low Perm Bulk Gas (915170)

Note: (915170)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 04196270

Cupholder

$

$

Currently unavailable

42

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 03853851

Plate, BBZ Hitch Kit Plate (915170)

Note: (915170)

$

$

Not available

44

Gravely 05959400

Bolt, Hex .38-16 x .75 (915170)
(Superseded to 05901702)

Note: (915170)

$1.99

$

In Stock, Qty 10

0

45

Gravely 06223900

Bolt, Round Head Square Neck .31-16 x .75 (915170)
(Superseded to 06200312)

Note: (915170)

$1.99

$

In Stock, only 1 left!

0

46

Gravely 51526600

Assembly, Engine Wrap

$179.99

$

Usually ships in 4-12 days

0

47

Gravely 04716951

Bracket, Engine Wrap Foot

$29.99

$

Usually ships in 4-12 days

0

48

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 06500710

Nut, Center Lock Flange .25-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

50

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

51

Gravely 06530400

Nut, Serrated Flange .31-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

52

Gravely 05501127

Bushing, Flange .325 x .499 x .3 x .875

$1.49

$

In Stock, Qty 20+

0

53

Gravely 06528700

Nut, Center Lock Flange .31-18
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 04717151

Plate, Back Foot Rest

$32.99

$

Usually ships in 4-12 days

0
