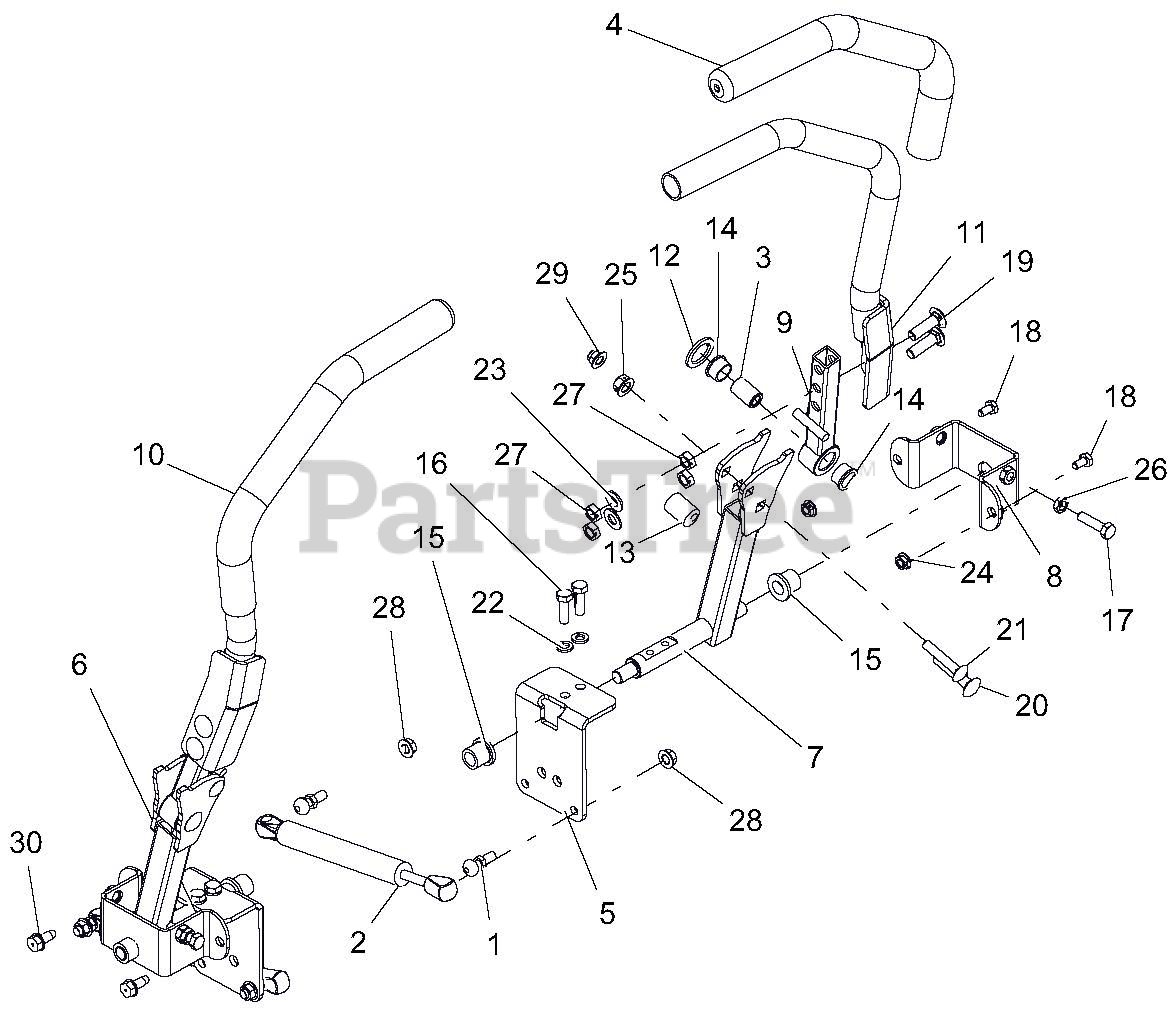

915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 000101 - 015999) Controls Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

Controls Parts Diagram

  • Title

1

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, Qty 7

0

2

Gravely 03943800

DAMPER,

$40.99

$

In Stock, only 1 left!

0

3

Gravely 04193500

SPCR, .375X.625X.970

$1.49

$

In Stock, Qty 6

0

4

Gravely 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

Usually ships in 4-12 days

0

5

Gravely 04764100

BRKT, STEERING

$

$

Not available

6

Gravely 04767351

WLDMT, LOWER STEERING ARM

$116.99

$

Usually ships in 4-12 days

0

7

Gravely 04772751

WLDMT, LH LWR STEERING ARM

$112.99

$

Usually ships in 4-12 days

0

8

Gravely 04776451

WLDMT, BRKT STEERING
(Superseded to 04990951)

$38.99

$

Usually ships in 4-12 days

0

9

Gravely 04778651

WLDMT, UPPER CONTROL ARM

$129.99

$

Usually ships in 4-12 days

0

10

Gravely 04796051

WLDMT, STEERING HANDLE RH

$64.99

$

In Stock, only 1 left!

0

11

Gravely 04796151

WLDMT, STEERING HANDLE LH

$51.99

$

In Stock, only 1 left!

0

12

Gravely 04832600

WSHR, FRICTION .875X1.25X.10

$5.99

$

In Stock, only 3 left!

0

13

Gravely 05500932

BSHG, ECCENTRIC .328 X .750 X .970

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05501017

BSHG, .625X.75X.450X.875

$7.99

$

In Stock, Qty 14

0

15

Gravely 05521100

BSHG, FLANGE .515 X .750 X .745 X 1.00 NYLON

$2.49

$

In Stock, Qty 9

0

16

Gravely 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.49

$

In Stock, Qty 12

0

17

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

19

Gravely 06200220

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 10

0

20

Gravely 06200221

BLT-RHDSSQNK .38-16X1.75 G5YZ

$5.99

$

In Stock, only 2 left!

0

21

Gravely 06200222

BLT-RDHDSQSHNK .31-18X1.75 YWZC

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06500710

NUT, LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

25

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

27

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

30

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0
