915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 000101 - 015999) Rear Tires And Transaxles Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

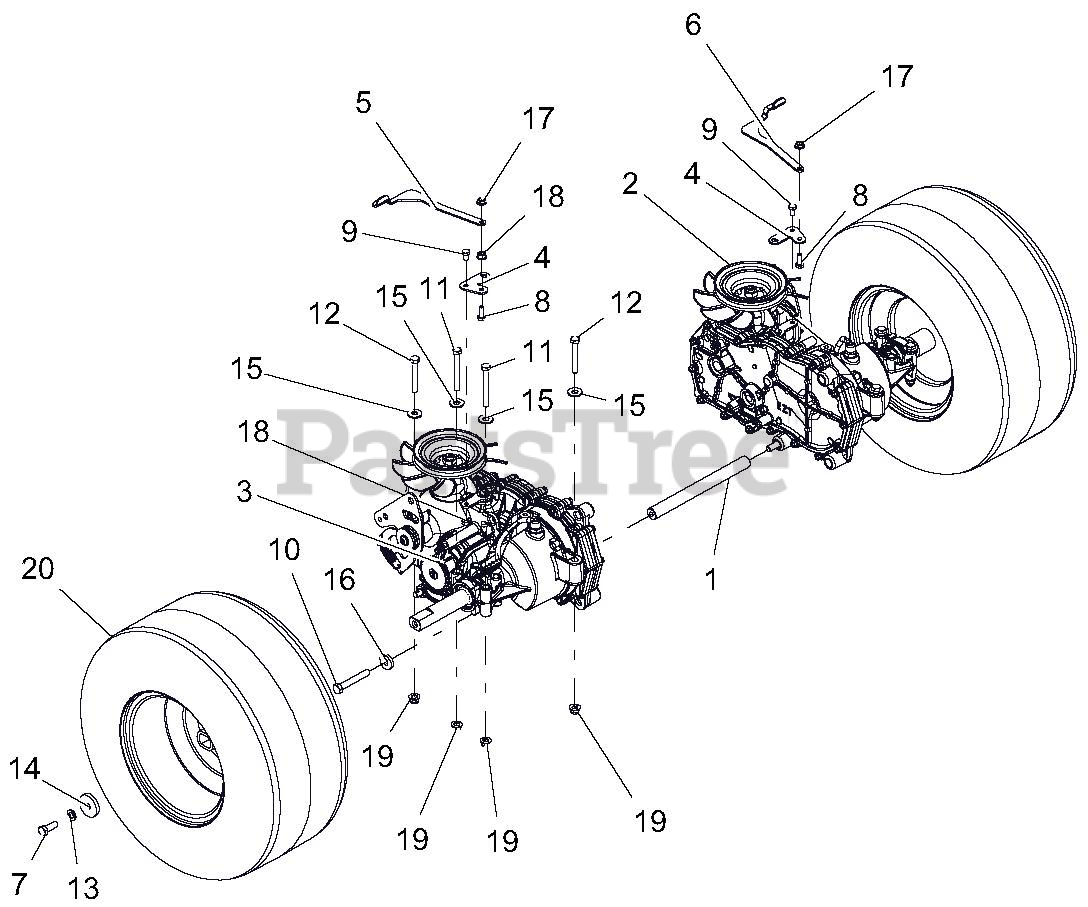

Rear Tires And Transaxles Parts Diagram

  • Title

1

Gravely 04788951

ROD, TRANSAXLE BRACE

$65.99

$

Usually ships in 4-12 days

0

2

Gravely 04794700

TRANSAXLE, LH EZT D-SHAFT SHORT
(Superseded to 51532900)

$791.99

$

Usually ships in 4-12 days

0

3

Gravely 04794800

TRANSAXLE, RH EZT D-SHAFT SHORT
(Superseded to 51533000)

$791.99

$

Usually ships in 4-12 days

0

4

Gravely 04806851

BRKT, DUMP VALVE EXTENSION

$7.49

$

Usually ships in 4-12 days

0

5

Gravely 04808551

BRKT, VALVE DUMP RH

$28.99

$

In Stock, only 2 left!

0

6

Gravely 04808651

BRKT, VALVE DUMP LH

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0

12

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 16

0

14

Gravely 06400006

WSHR-FL-STL .406X1.50X.245 YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07100928

WHEEL, 18X8.5-8 4P DD HUB
(Superseded to 07101130)

$175.99

$

In Stock, only 2 left!

0
