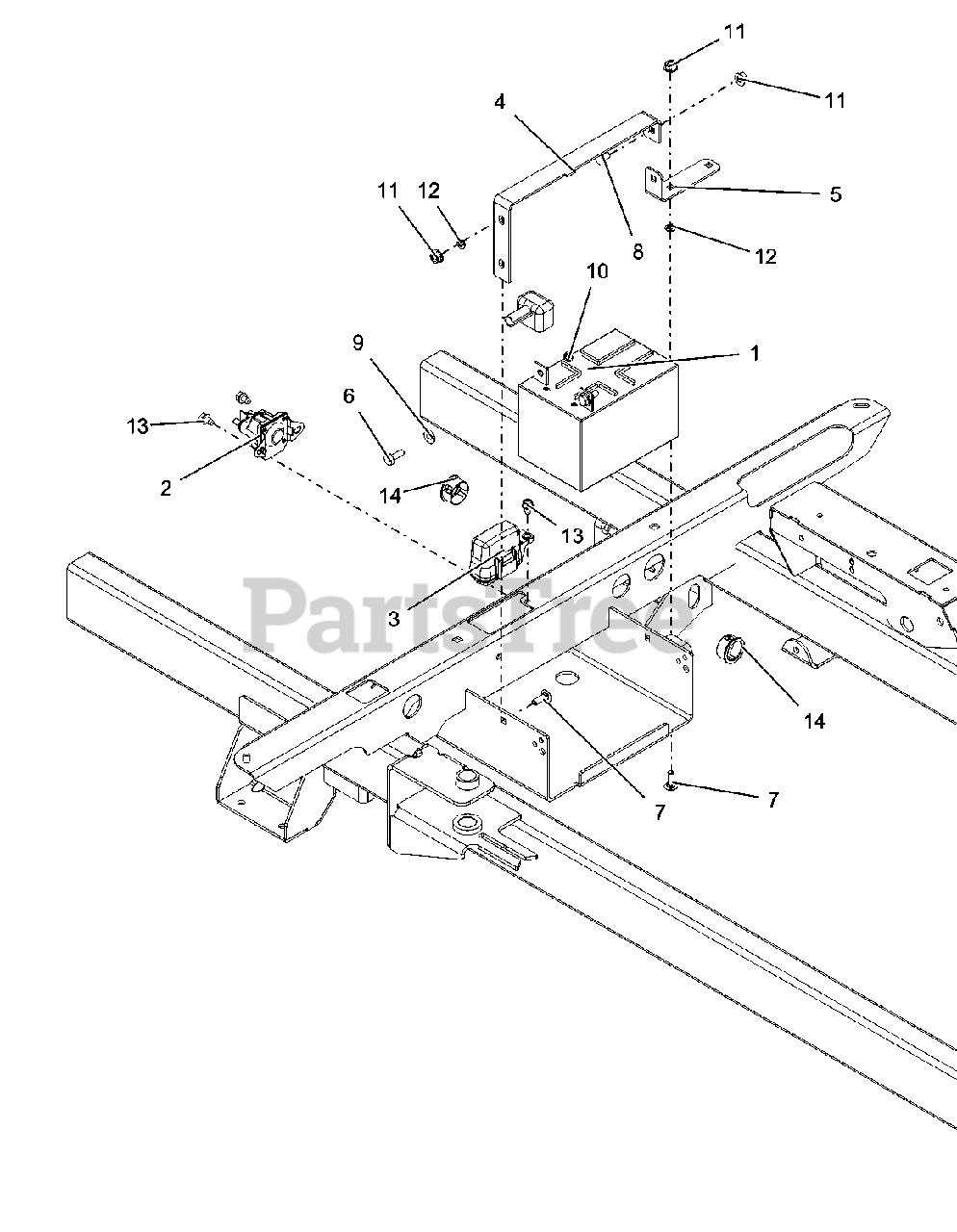

915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 016000 - 019999) Electrical Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

Electrical Parts Diagram

  • Title

1

Gravely 04738800

BATTERY, 12V 12A-190CCA

$148.99

$

In Stock, Qty 20+

0

2

Gravely 04781700

SOLENOID, STARTER (SEALED)

$48.99

$

In Stock, Qty 13

0

2

Gravely 04794500

HARNESS, WIRE - 2015 ZOOM/ZT

Note: IF YOU HAVE THE 5 WAY CONNECTOR, IT MATES WITH 03290500 IGNITION SWITCH (NOT SHOWN)

$105.99

$

Usually ships in 4-12 days

0

2

Gravely 04974400

HARNESS, WIRE-4POS KEY IKON/ZT
(Superseded to 05295600)

Note: IF YOU HAVE THE 7 WAY CONNECTOR, IT MATES WITH 04974300 IGNITION SWITCH (NOT SHOWN)

$148.99

$

In Stock, only 2 left!

0

4

Gravely 04794651

BRKT, BATTERY HOLD-DOWN

$26.99

$

In Stock, only 3 left!

0

5

Gravely 04833651

BRKT, BATTERY HOLD DOWN

$21.99

$

In Stock, only 3 left!

0

6

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500704

NUT, 10-24 KEPS

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.99

$

In Stock, Qty 8

0

13

Gravely 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 07500308

BSHG, PANEL SNAP .937X1.11X.56

$4.99

$

Usually ships in 4-12 days

0
