915172 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro (SN: 035000 - 039999) Fuel System - Non-CARB Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro

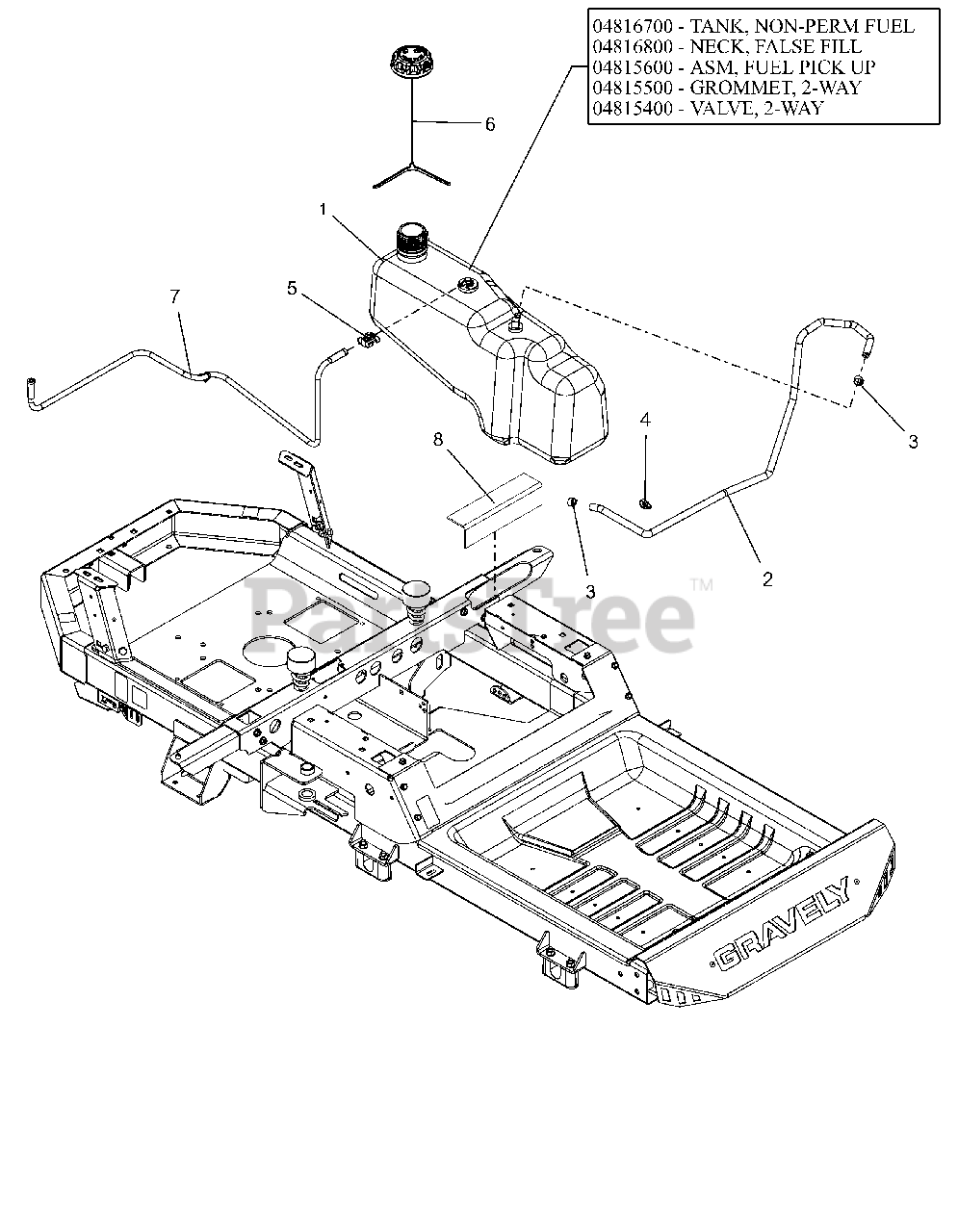

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04751200

ASM,TANK NON-PERM FUEL
(Superseded to 05244600)

$192.99

$

Usually ships in 4-12 days

0

1

Gravely 04816700

TANK, ZOOM/ZT NON-PERM, FUEL

$

$

Not available

1

Gravely 04816800

NECK, FALSE FILL ZOOM/ZT

$

$

Not available

1

Gravely 04815600

ASM, FUEL PICK-UP ZOOM/ZT 2015

$39.99

$

In Stock, Qty 6

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

$4.99

$

In Stock, Qty 20+

0

1

Gravely 04815400

VALVE, 2-WAY

$20.99

$

In Stock, only 4 left!

0

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00367900

ROUTING CLIP (1/2" ID)

$2.49

$

In Stock, Qty 5

0

5

Gravely 07001712

CLIP, T, .38-.50

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$21.99

$

In Stock, Qty 20+

0

7

Gravely 04977200

LINE, FUEL VENT KOHLER SMCHOKE

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 04864600

PAD, RUBBER-TANK

$6.99

$

Usually ships in 4-12 days

0
