915174 (ZTX 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 016000 - 019999) Engine - Kohler Pro 25 Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

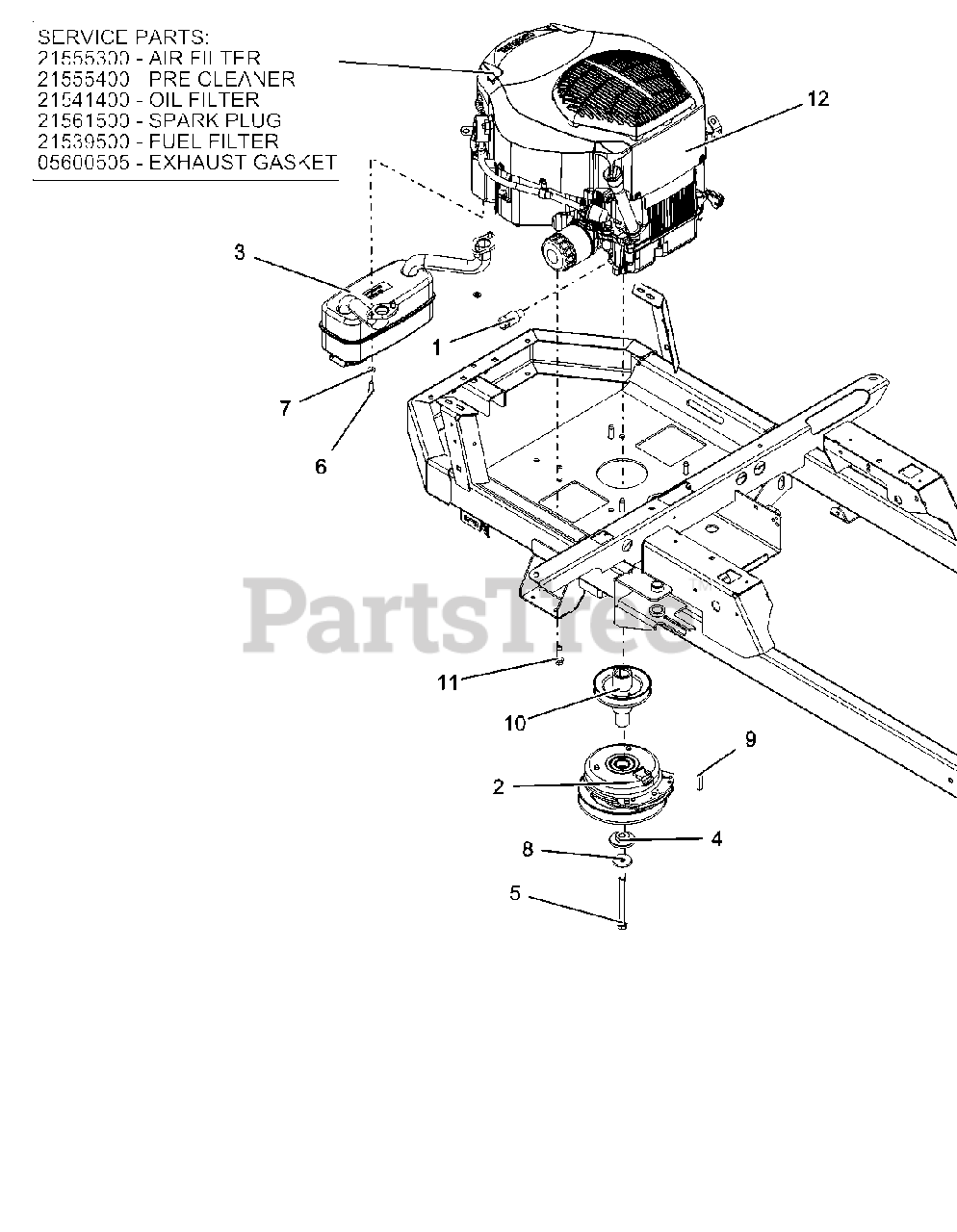

Engine - Kohler Pro 25 Parts Diagram

  • Title

1

Gravely 03943600

DRAIN, OIL

$17.99

$

In Stock, Qty 5

0

2

Gravely 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$275.99

$

In Stock, Qty 9

0

3

Gravely 04783600

MUFFLER, KOHLER TWIN

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$20.99

$

In Stock, only 2 left!

0

5

Gravely 05901707

BLT-HEX.438-20X4.5GR8YZ NYTORQ
(Superseded to 05901820)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06400936

WASHER, 7/16" SPRING DISK

$12.99

$

In Stock, only 4 left!

0

9

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$4.99

$

In Stock, Qty 11

0

10

Gravely 07345100

WLDMT, DRIVE SHEAVE-X YWZC

$85.99

$

In Stock, only 2 left!

0

11

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.99

$

In Stock, Qty 15

0

12

Gravely 21539500

FILTER, FUEL

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0

12

Gravely 21541400

FILTER, ENGINE OIL (COURAGE)
(Superseded to 21397200)

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 05600505

GASKET, MUFFLER COURAGE TWIN

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 21555300

AIR FILTER, KOHLER

Note: SERVICE PART

$29.99

$

In Stock, Qty 20+

0

12

Gravely 21555400

PRE CLEANER, KOHLER

Note: SERVICE PART

$6.99

$

In Stock, Qty 20+

0

12

Gravely 08201110

ENGINE, KOHLER PRO25 W/SC

$

$

Not available

12

Gravely 21561500

PLUG, SPARK

Note: SERVICE PART

$

$

Not available
