915175 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 000101 - 015999) Seat Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin

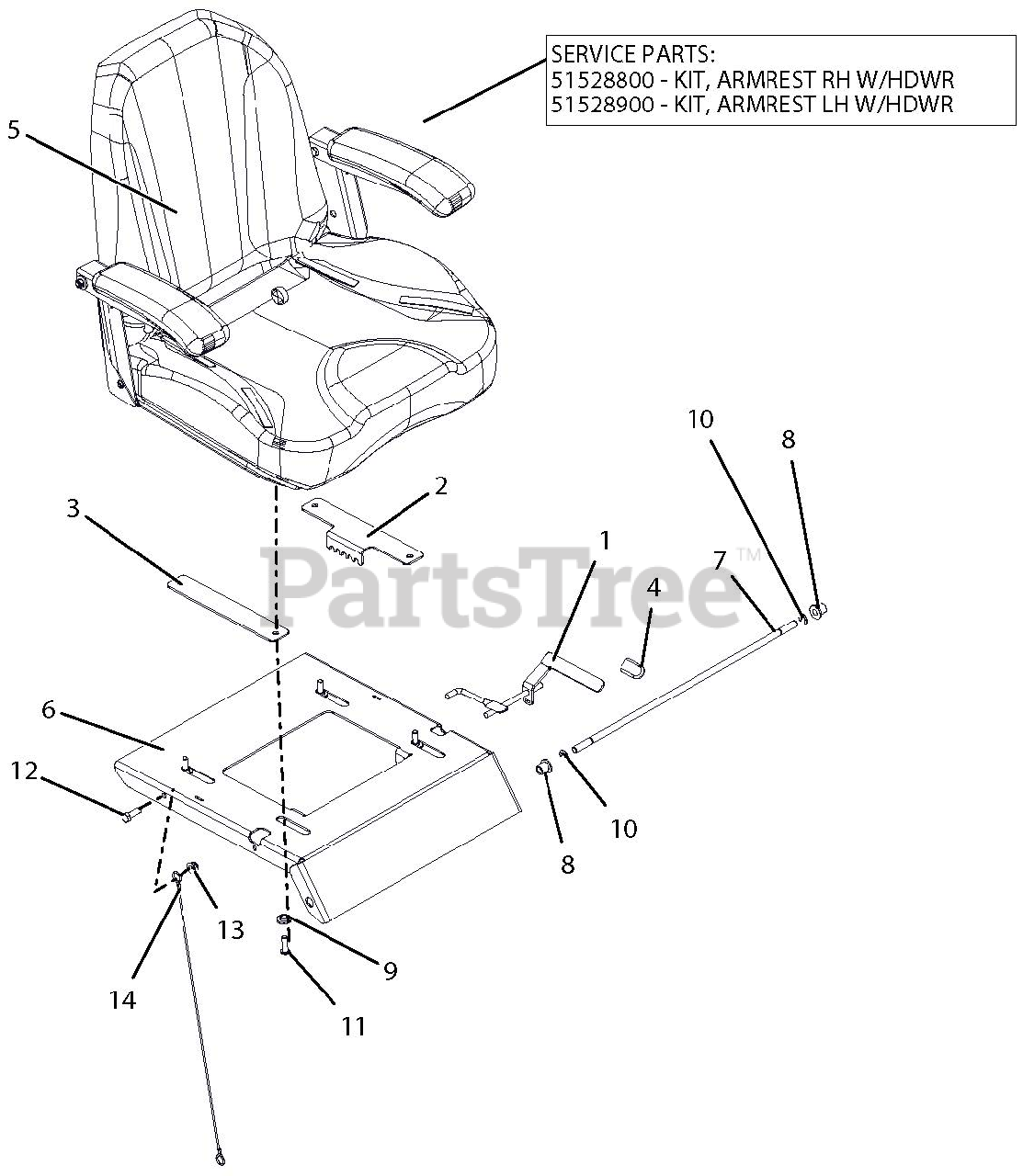

Seat Parts Diagram

  • Title

1

Ariens 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 04376951

PLATE, ADJUSTABLE SEAT TRACK

$13.99

$

In Stock, only 1 left!

0

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 04751800

SEAT, MOWER
(Superseded to 05176000)

$581.99

$

In Stock, only 1 left!

0

5

Ariens 51528800

KIT, ARMREST LH

Note: SERVICE PART

$136.99

$

Usually ships in 4-12 days

0

5

Ariens 51528900

KIT, ARMREST RH

Note: SERVICE PART

$136.99

$

Usually ships in 4-12 days

0

6

Ariens 04757059

PLATE, SEAT

$67.99

$

Usually ships in 4-12 days

0

7

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

9

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

10

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 15

0

11

Ariens 05901508

SCR-SKH .31-18X1.0 BTNHD YWZC
(Superseded to 05901840)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

13

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

14

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$10.99

$

In Stock, only 1 left!

0
