915175 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 016000 & Above) Fenders Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler Twin

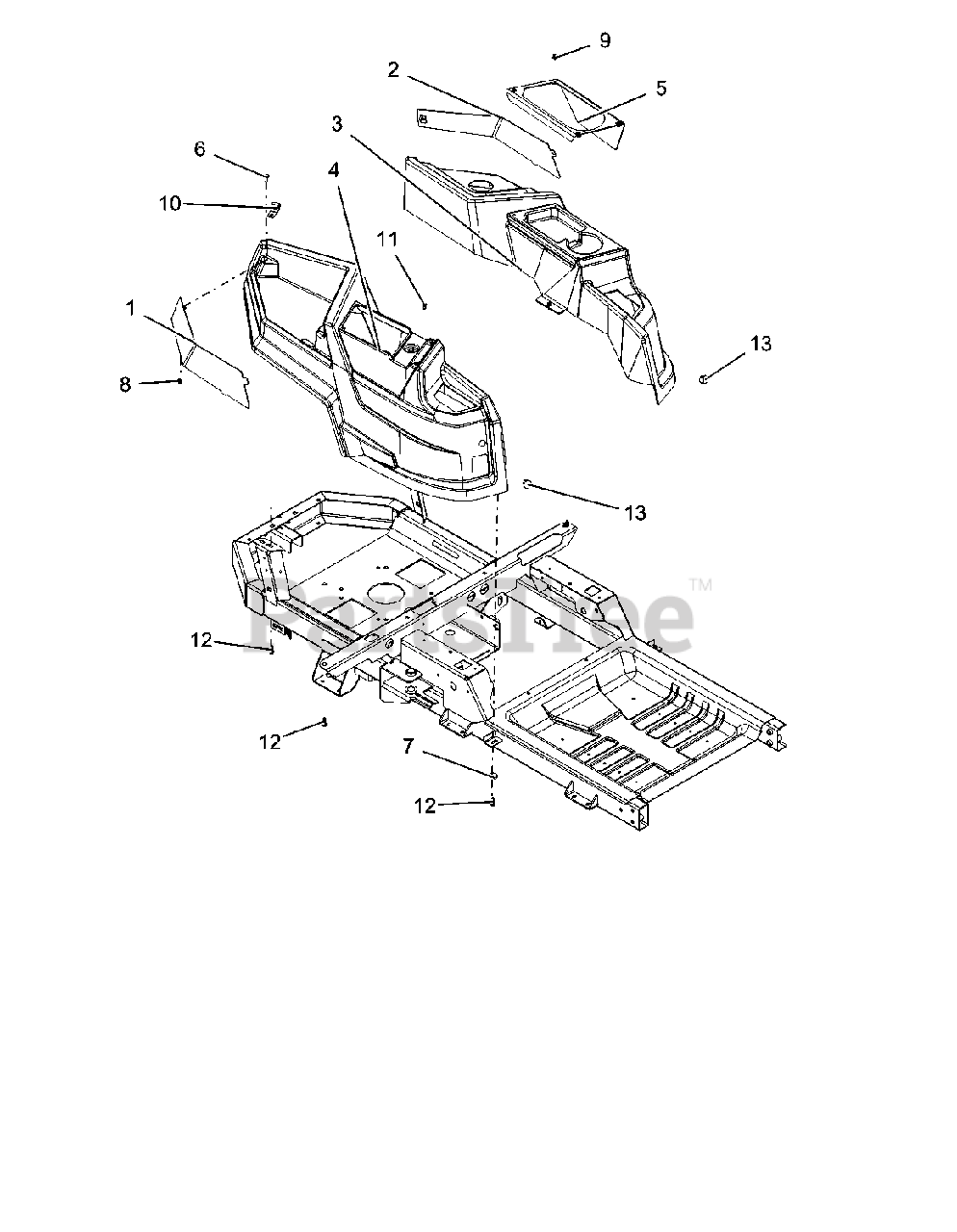

Fenders Parts Diagram

  • Title

1

Ariens 04782259

WLMT, FENDER BLOCKOFF-RH

$42.99

$

Usually ships in 4-12 days

0

2

Ariens 04785259

WLMT, FENDER BLOCKOFF-LH

$42.99

$

Usually ships in 4-12 days

0

3

Ariens 04767100

FENDER, LH -ZOOM

$80.99

$

Usually ships in 4-12 days

0

4

Ariens 04767200

FENDER, RH -ZOOM

$113.99

$

Usually ships in 4-12 days

0

5

Ariens 04785159

PANEL, CUPHOLDER/STORAGE (LH)

$41.99

$

Usually ships in 4-12 days

0

6

Ariens 05901529

BLT-HEX.25-20X.62 BLKZC ROHS

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

9

Ariens 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 16

0

10

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07400119

SCR-.312X.75 #14H H/W/H H/L CZ

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 07500402

PLUG, HOLE .75 (BLACK)

$1.49

$

Usually ships in 4-12 days

0
