915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 016000 - 019999) Front Caster Wheels Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

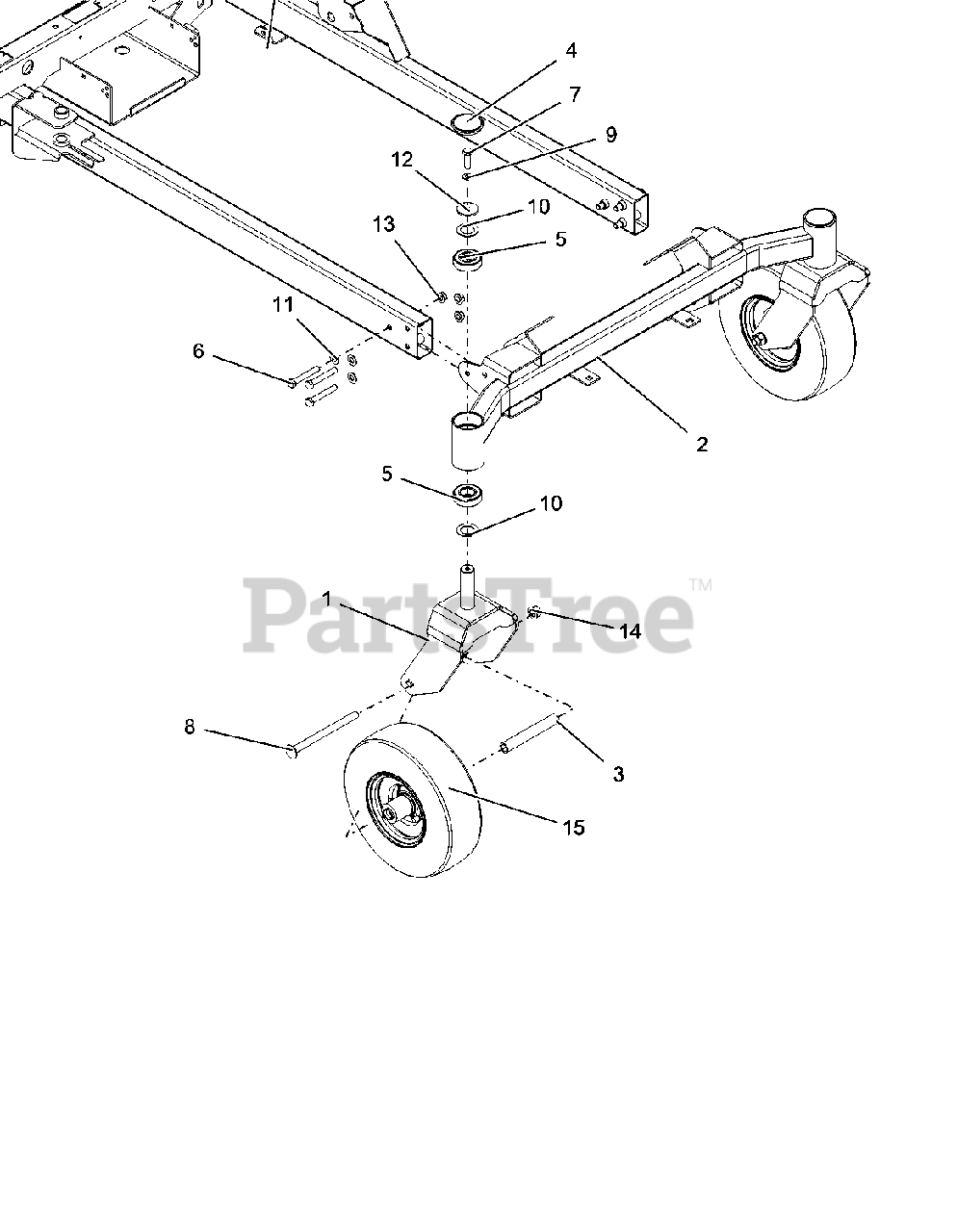

Front Caster Wheels Parts Diagram

  • Title

1

Gravely 04736653

WLDMT, CASTER FORK (RED)

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 04968653

WLDMT, AXLE FRONT

$270.99

$

Usually ships in 4-12 days

0

3

Gravely 00278500

SPCR, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

4

Gravely 04792200

CAP, DUST

$13.99

$

In Stock, Qty 16

0

5

Gravely 05400722

BRG-BALL 1.00X2.00X.56

$19.99

$

In Stock, Qty 20+

0

6

Gravely 05901601

BLT-HEX .38-16X2.50 GR8 YWZC

$

$

Not available

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 6

0

8

Gravely 06200219

BLT-RDHDSQNK .50-13X6.50 G5 Y
(Superseded to 06200319)

$13.99

$

In Stock, Qty 8

0

9

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

10

Gravely 06416600

WSHR, HRD THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06439900

WSHR-HDND .406X.812X.075

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06443400

WSHR-FL-STL .380X1.50X.125 YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06500736

NUT, LK-TOP-FLG .38-16 GRG YWZC
(Superseded to 06500905)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 07101127

TIRE/WHEEL, 11 X 4-5

$93.99

$

In Stock, Qty 20+

0
