915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 020000 - 029999) Control Panel Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

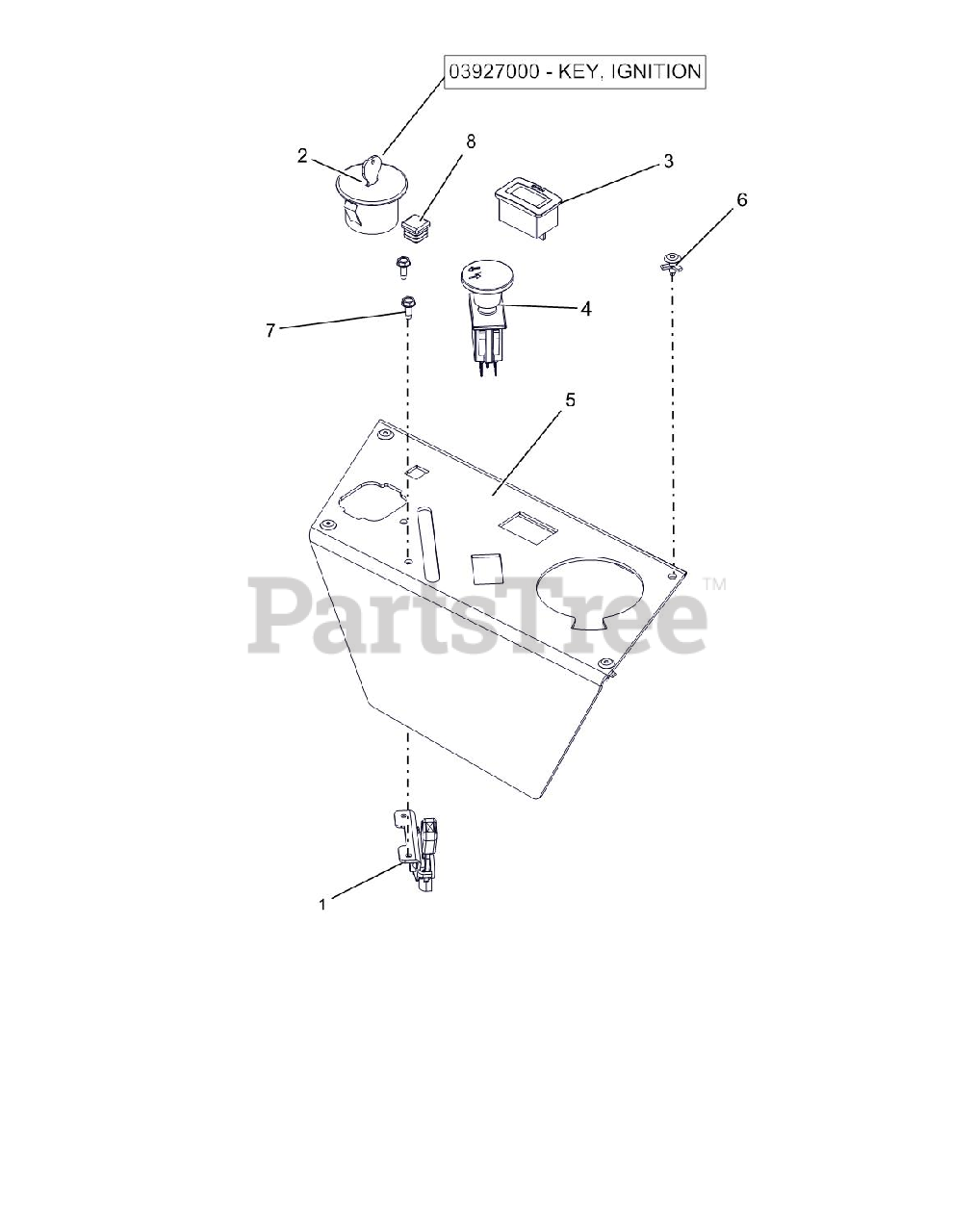

Control Panel Parts Diagram

  • Title

1

Gravely 06900620

CABLE - THROTTLE CONTROL

$44.99

$

In Stock, only 1 left!

0

2

Gravely 03927000

KEY, 03290500 KEYSWITCH

Note: SERVICE PART

$9.99

$

In Stock, Qty 17

0

3

Gravely 04974300

KEYSWITCH-IGNITION 4 POS

Note: IF YOU HAVE THE 7 TERMINAL SWITCH, IT MATES WITH 04974400 WIRE HARNESS

$20.99

$

In Stock, Qty 9

0

3

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

Note: IF YOU HAVE THE 5 TERMINAL SWITCH, IT MATES WITH 04794500 WIRE HARNESS

$17.99

$

In Stock, Qty 7

0

3

Gravely 05084300

HOUR METER
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

4

Gravely 04399600

SWITCH, CLUTCH (YELLOW)

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 04766900

PANEL, CONTROL

$

$

Not available

6

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 12

0

7

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

8

Gravely 07500123

PLUG, 5/8" SQ BLACK (14-20GA)

$3.49

$

Usually ships in 4-12 days

0
