915176 (ZTX 42) - Gravely 42" Zero-Turn Mower, 24hp Kohler Pro, CARB (SN: 020000 - 029999) Fuel System - CARB Parts Diagram

42" Zero-Turn Mower, 24hp Kohler Pro, CARB

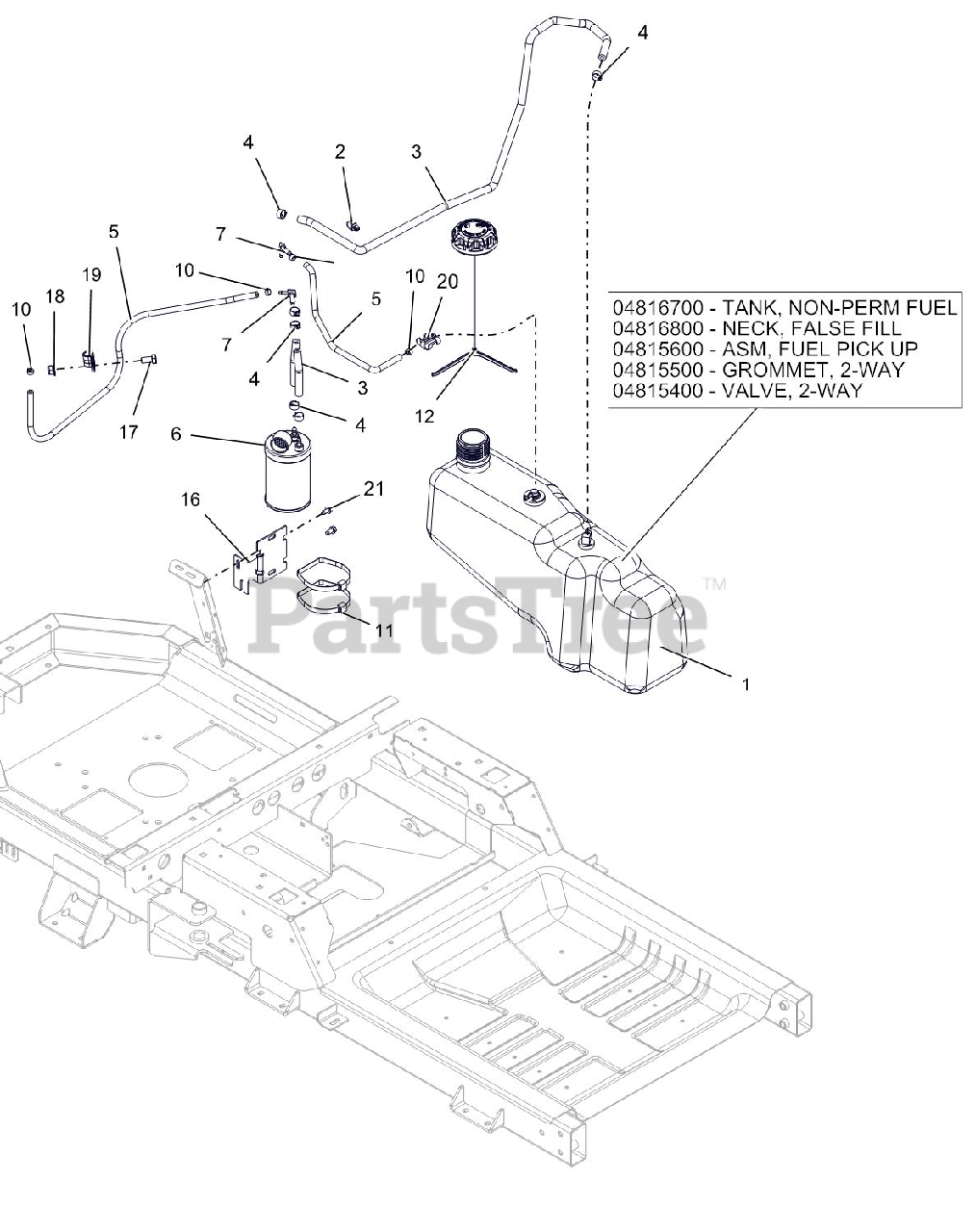

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

1

Gravely 04815400

VALVE, 2-WAY

Note: SERVICE PART

$19.99

$

In Stock, Qty 6

0

1

Gravely 04751200

ASM,TANK NON-PERM FUEL
(Superseded to 05244600)

$184.99

$

In Stock, only 1 left!

0

1

Gravely 04816800

NECK, FALSE FILL ZOOM/ZT

Note: SERVICE PART

$

$

Not available

1

Gravely 04815600

ASM, FUEL PICK-UP ZOOM/ZT 2015

Note: SERVICE PART

$38.99

$

In Stock, Qty 5

0

1

Gravely 04816700

TANK, ZOOM/ZT NON-PERM, FUEL

Note: SERVICE PART

$

$

Not available

2

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

In Stock, only 1 left!

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 12

0

5

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 10

0

6

Gravely 04082500

CARBON CANISTER, 300CC

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 04102900

P-PLASTIC TIE STRAP LARGE

$

$

Not available

12

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$21.99

$

In Stock, Qty 14

0

16

Gravely 04834651

BRKT, CARB CANISTER MOUNT

$18.99

$

Usually ships in 4-12 days

0

17

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
