915188 (ZT XL 54) - Gravely 54" Zero-Turn Mower, 25hp Kohler (SN: 045000 & Above) Anti-Scalp Rollers Parts Diagram

54" Zero-Turn Mower, 25hp Kohler

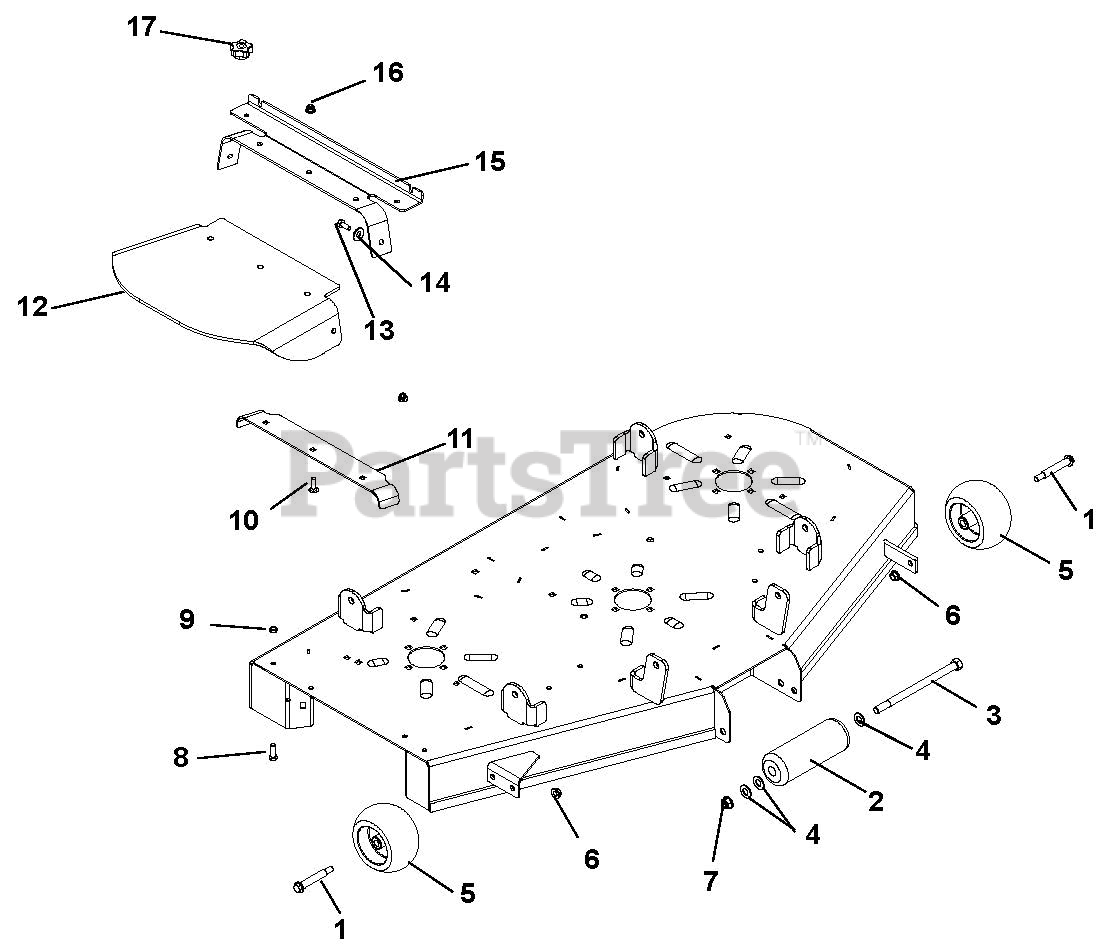

Anti-Scalp Rollers Parts Diagram

  • Title

1

Gravely 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

2

Gravely 03114100

ROLLER

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 05968400

@BLT-HEX .50-13X8.00 GR5 YWZC

$7.99

$

In Stock, Qty 11

0

4

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 19

0

5

Gravely 03905600

ANTI-SCALP WHEEL - 5X OS

$15.99

$

In Stock, Qty 19

0

6

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

9

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

10

Gravely 06200008

BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, only 1 left!

0

11

Gravely 03262353

BRKT-CHUTE BRACE, INNER
(Superseded to 03262300)

$30.99

$

In Stock, only 1 left!

0

12

Gravely 02973600

CHUTE-DISCHARGE, RUBBER

$45.99

$

In Stock, Qty 6

0

13

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

14

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

15

Gravely 02975853

BRACKET, DISCHARGE CHUTE

$60.99

$

Usually ships in 4-12 days

0

16

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

17

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$7.99

$

In Stock, Qty 13

0
