915189 - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 - 044999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

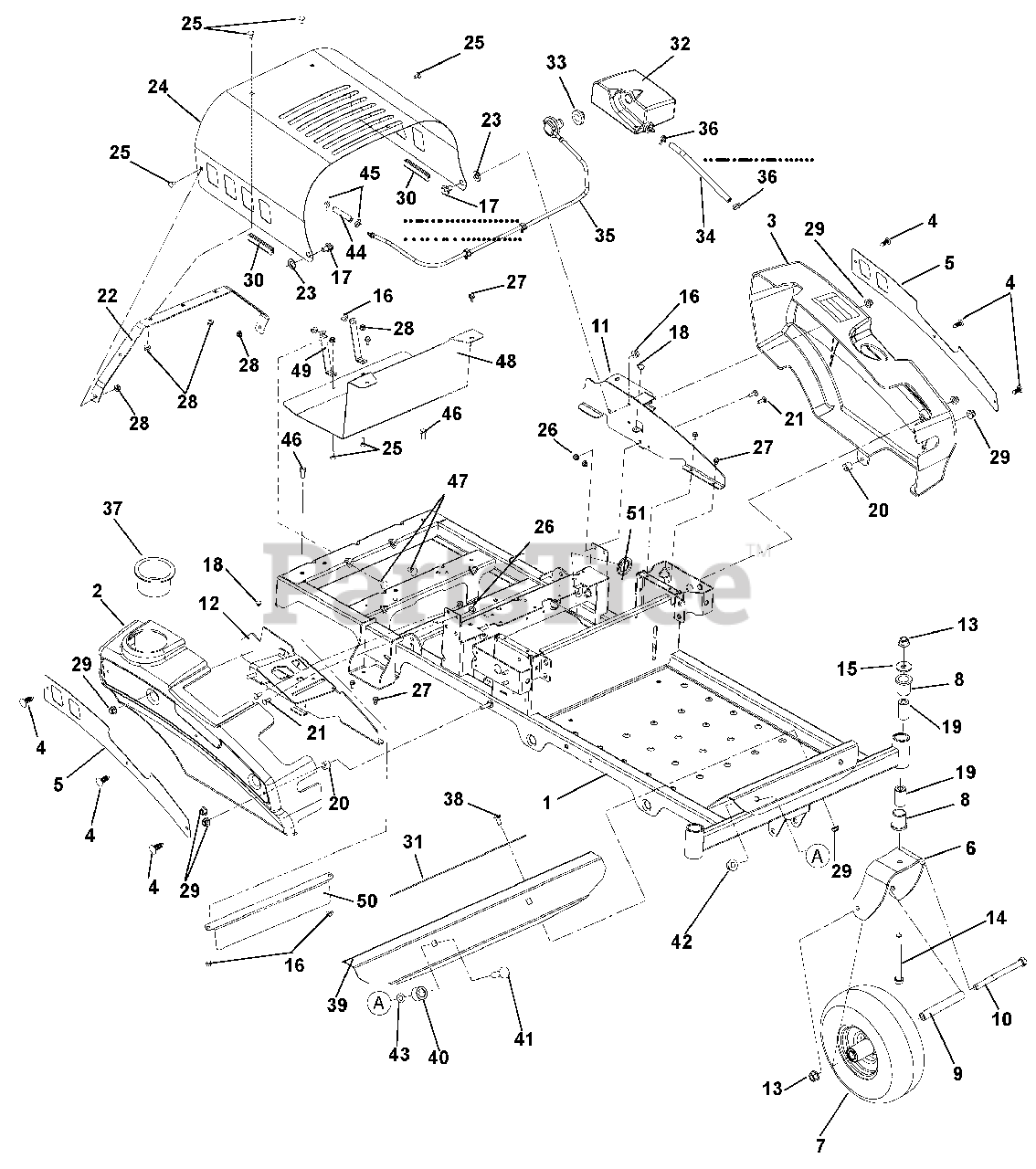

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title
1

Ariens 51525900

KIT, ZOOM/ZT FRAME W/ DECALS

$571.52

$

Usually ships in 4-12 days

0

2

Ariens 03768600

FENDER, RH

$70.38

$

Usually ships in 4-12 days

0

3

Ariens 03768700

FENDER, LH
(Superseded to 51534400)

$63.17

$

Usually ships in 4-12 days

0

4

Ariens 07500125

RIVET, .25 NYLON PANEL

$1.85

$

In Stock, Qty 20+

0

5

Ariens 03769059

PLATE, FENDER

$33.76

$

Usually ships in 4-12 days

0

6

Ariens 03368559

WMT, CASTER FORK

$70.77

$

In Stock, only 3 left!

0

7

Ariens 07100124

TIRE/WHEEL ASSY, 11X4-5

$84.61

$

In Stock, Qty 20+

0

8

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$8.89

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$11.12

$

In Stock, Qty 5

0

10

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.38

$

In Stock, Qty 20+

0

11

Ariens 04240759

WLDMT, LH FENDER MOUNT

$82.62

$

Usually ships in 4-12 days

0

12

Ariens 04821059

WLDMT, RH FENDER MOUNT

$76.92

$

Usually ships in 4-12 days

0

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.80

$

In Stock, Qty 12

0

14

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.75

$

In Stock, Qty 20+

0

15

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.63

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

17

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.58

$

In Stock, Qty 7

0

18

Ariens 07503100

BUMPER GROMMET

$3.30

$

In Stock, Qty 5

0

19

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$14.48

$

In Stock, Qty 20+

0

20

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.87

$

Usually ships in 4-12 days

0

21

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.96

$

In Stock, Qty 19

0

22

Ariens 04085759

BRACE, HOOD

$33.43

$

Usually ships in 4-12 days

0

23

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$2.52

$

In Stock, Qty 10

0

24

Ariens 04411859

HOOD, ZOOM

$108.17

$

In Stock, only 1 left!

0

25

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.96

$

In Stock, Qty 20+

0

26

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.24

$

In Stock, Qty 8

0

27

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

28

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.96

$

In Stock, Qty 20+

0

29

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.24

$

In Stock, Qty 9

0

30

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.30

$

Usually ships in 4-12 days

0

31

Ariens 03833800

GRIP, ADHESIVE (1" X 16" BLK)

$3.47

$

Usually ships in 4-12 days

0

32

Ariens 04423000

EXPANSION TANK SUB ASSY
(Superseded to 05244800)

$35.16

$

Usually ships in 4-12 days

0

33

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

$3.63

$

In Stock, only 2 left!

0

34

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.56

$

In Stock, Qty 20+

0

35

Ariens 04745700

ASM, FUEL VENT - ZOOM/ZT
(Superseded to 04843800)

$35.16

$

Usually ships in 4-12 days

0

36

Ariens 03278800

CLAMP, FUEL LINE

$3.30

$

In Stock, only 3 left!

0

37

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

$21.07

$

Usually ships in 4-12 days

0

38

Ariens 06218900

BLT-RDHDSQNK .50-13X7.00

$

$

Not available

39

Ariens 04188359

FOOTREST

$66.91

$

Usually ships in 4-12 days

0

40

Ariens 04192901

TUBE, UPPER CONTROL PIVOT

$6.65

$

Usually ships in 4-12 days

0

41

Ariens 06224800

@BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$5.53

$

Usually ships in 4-12 days

0

42

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$3.63

$

In Stock, Qty 20+

0

43

Ariens 06500705

NUT-PUSH, .50

$3.58

$

Usually ships in 4-12 days

0

44

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.30

$

Usually ships in 4-12 days

0

45

Ariens 04097700

CLAMP-HOSE, SPRING .188

$3.91

$

In Stock, only 2 left!

0

46

Ariens 03853851

PLATE, BBZ HITCH KIT PLATE

$

$

Not available

47

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.80

$

In Stock, only 2 left!

0

48

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.80

$

In Stock, only 3 left!

0

49

Ariens 04739351

GUARD, HEAT SHIELD (ZOOM/ZT)

$47.29

$

Usually ships in 4-12 days

0

50

Ariens 04739451

STRAP, HEAT SHIELD (ZOOM/ZT)

$13.47

$

Usually ships in 4-12 days

0

51

Ariens 04739551

GUARD, HOT SURFACE (ZOOM/ZT)

$24.54

$

Usually ships in 4-12 days

0

52

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.30

$

Usually ships in 4-12 days

0
