915194 (ZT 34) - Gravely 34" Zero-Turn Mower, CARB (SN: 000101 - 055999)

34" Zero-Turn Mower, CARB

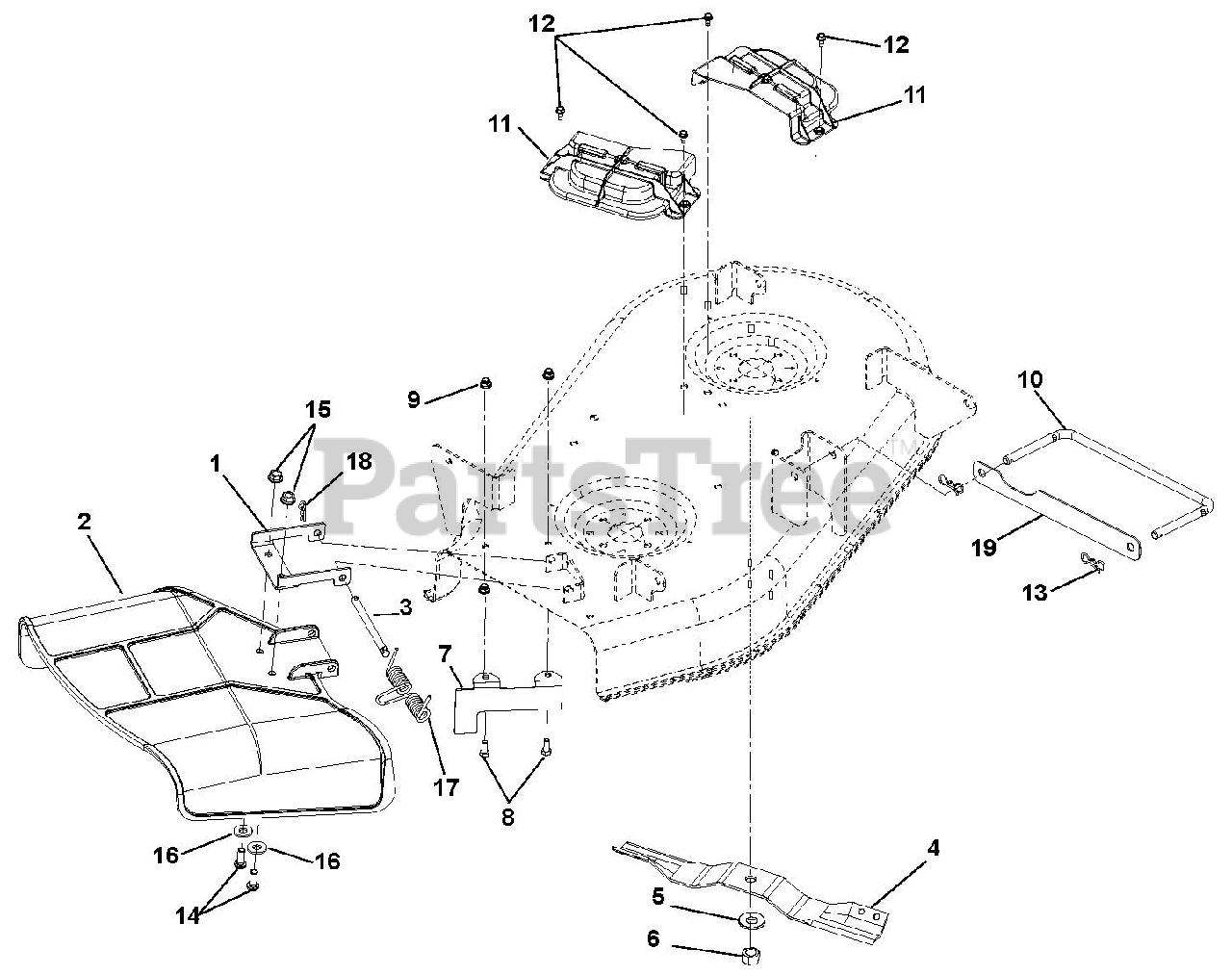

915194 (ZT 34) - Gravely 34" Zero-Turn Mower, CARB (SN: 000101 - 055999) > Parts Diagrams (17) > Belt Covers And Blades

  • Title
00662653

1

Chute Reinforcement

Part# 00662653

OEM Warranty Repair Part for Gravely

Not available

03994300

2

Molded Chute

Part# 03994300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $46.90

06800002

3

Pin, 5/16 x 3.88"

Part# 06800002

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

03971900

4

Blade, Mower 17.35

Part# 03971900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.95

06445700

5

Washer, Beveled .63 x 1.625 x .14

Part# 06445700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06500630

6

Nut, Hex .62-18

Part# 06500630

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03779253

7

Bracket, Baffle Discharge 34"

Part# 03779253

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.25

05947000

8

Bolt, Hex .31-18 x .75

Part# 05947000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06545400

9

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

04377667

10

Wireform, Drag Link

Part# 04377667

OEM Warranty Repair Part for Gravely

Not available

04323800

11

Molded Cover, Belt

Part# 04323800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.42

07400034

12

Screw, Tapping .25-20 x .50 Hex Washer Head

Part# 07400034

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06700201

13

Pin, Bow Tie Locking Cotter .091 x 1.875

Part# 06700201

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05920900

14

Screw, .31-18 x .75

Part# 05920900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06543100

15

Nut, Locking Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

06435700

16

Washer, Flat Steel .38 x .875 x .083

Part# 06435700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

01258100

17

Spring, Torsion

Part# 01258100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06713500

18

Pin, Hair .08 x .18 x 1.18

Part# 06713500

OEM Warranty Repair Part for Gravely

Not available

04424951

19

Strap, Drag Link

Part# 04424951 (Superseded to 04424967)

OEM Warranty Repair Part for Gravely

Not available
