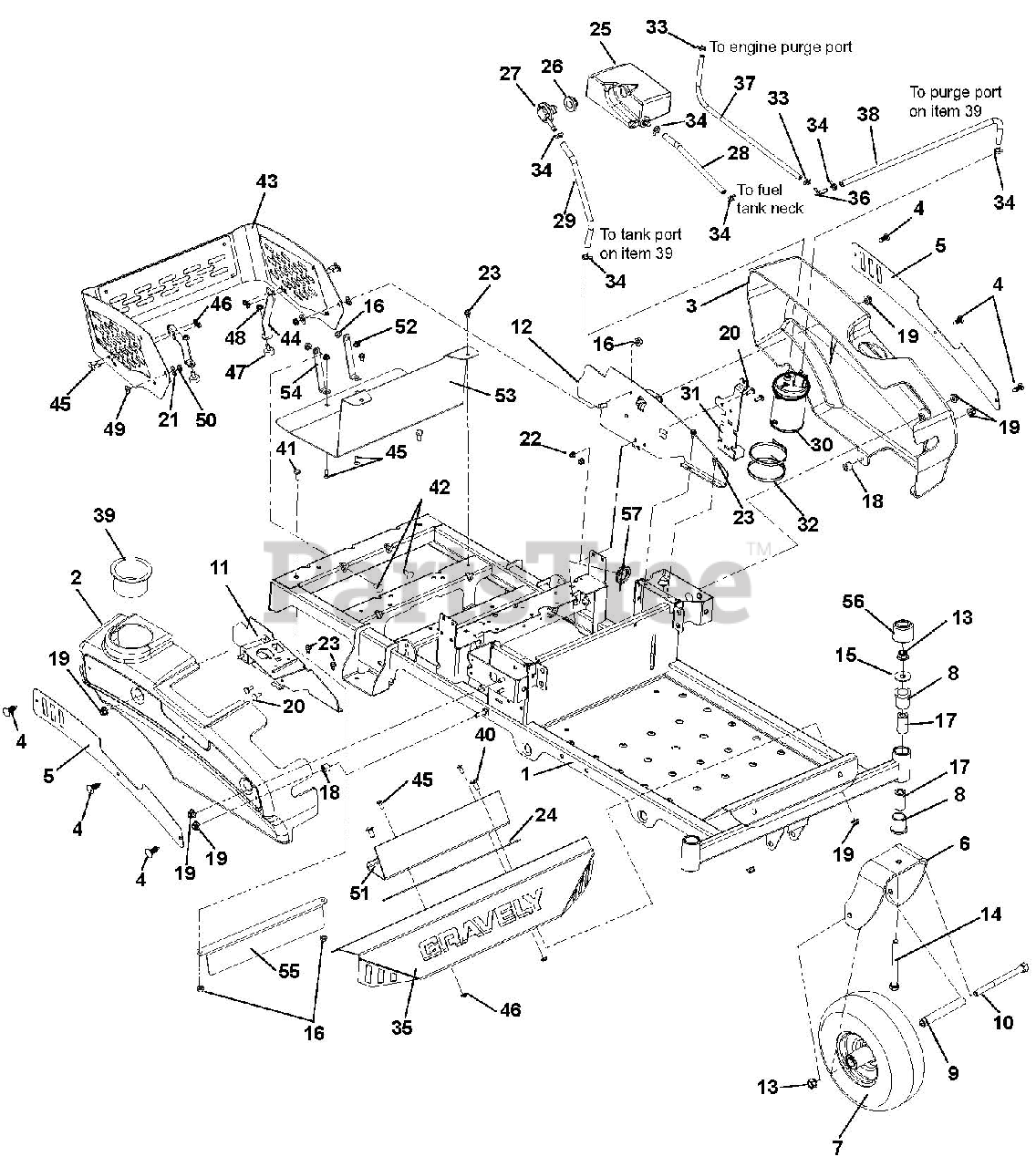

915194 (ZT 34) - Gravely 34" Zero-Turn Mower, CARB (SN: 000101 - 055999) > Parts Diagrams (17) > Frame, Hood, Fenders, Casters And Tires

  • Title
51525900

1

Weldment, Frame

Part# 51525900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $544.29

03768600

2

Fender, Right Hand

Part# 03768600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $70.38

03768700

3

Fender, Left Hand

Part# 03768700

OEM Warranty Repair Part for Gravely

Not available

07500125

4

Rivet, Nylon

Part# 07500125

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04717553

5

Plate, Fender

Part# 04717553

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $19.68

03368553

6

Fork, Caster

Part# 03368553

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $70.77

07100124

7

Wheel/Tire Assembly, 11 x 4-5

Part# 07100124

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $84.61

05500934

8

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

Part# 05500934

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

00278500

9

Spacer, Wheel

Part# 00278500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

05964400

10

Bolt, Hex .50-13 x 6.50

Part# 05964400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

04821253

11

Weldment, Fender Mount Right Hand

Part# 04821253

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $64.84

04717253

12

Weldment, Fender Mount Left Hand

Part# 04717253

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $66.80

06543600

13

Nut, Locking Top Flange .50-13

Part# 06543600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05962200

14

Bolt, Hex .50-13 x 5.00

Part# 05962200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06436400

15

Washer, Flat Steel .511 x 1.441 x .125

Part# 06436400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06542000

16

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00363100

17

Spacer, Caster

Part# 00363100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

08553700

18

Bushing, Sleeve .391 x .688 x .52

Part# 08553700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.81

06545400

19

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

06219900

20

Bolt, Round Head Square Neck .25-20 x .75

Part# 06219900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06443300

21

Washer, Flat Nylon .52 x 1.00 x .08

Part# 06443300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06500012

22

Nut, .25-20 Nyloc Flange

Part# 06500012

OEM Warranty Repair Part for Gravely

Not available

07400034

23

Screw, Tapping .25-20 x .50 Hex Washer Head Thread

Part# 07400034

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03833800

24

Grip, Adhesive, 1" x 16" BLK

Part# 03833800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

04423000

25

Expansion Tank Subassembly

Part# 04423000

OEM Warranty Repair Part for Gravely

Not available

04082700

26

Grommet, Remote Vent Nitrile

Part# 04082700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

04068910

27

Vent, Roll-Over, .25" ID Hose

Part# 04068910

OEM Warranty Repair Part for Gravely

Not available

03278100

28

Hose, .25 Low-Perm Bulk Gas

Part# 03278100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

03278100

29

Hose, .25 Low-Perm Bulk Gas

Part# 03278100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

04082500

30

Carbon Canister, 300CC

Part# 04082500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.99

04086551

31

Bracket, Mount, Canister BBZ

Part# 04086551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

04102900

32

Plastic Tie Strap Large

Part# 04102900

OEM Warranty Repair Part for Gravely

Not available

04097700

33

Clamp, Hose Spring .188

Part# 04097700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03278800

34

Clamp, Hose Wire .490/.510 x .116

Part# 03278800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

04719653

35

Foot Rest

Part# 04719653 (Superseded to 50569000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $966.53

04097000

36

Fitting, 3/16 x 1/4 90 Deg Vac

Part# 04097000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

03375900

37

Hose, .188 Low Perm Bulk

Part# 03375900

Note: (915194)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03375900

37

Hose, .188 Low Perm Bulk

Part# 03375900

Note: (915196)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03278100

38

Hose, .25 Low Perm Bulk Gas

Part# 03278100

Note: (915194)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

03278100

38

Hose, .25 Low Perm Bulk Gas

Part# 03278100

Note: (915196)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

04196270

39

Cupholder

Part# 04196270

OEM Warranty Repair Part for Gravely

Currently unavailable

06218900

40

Bolt, Round Head Square Neck .31-18 x .75

Part# 06218900

OEM Warranty Repair Part for Gravely

Not available

05948700

41

Bolt, Hex .38-16 x 1.00

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06223600

42

Bolt, Round Head Square Neck .38-16 x 1.00

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

51526600

43

Assembly, Engine Wrap

Part# 51526600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $144.22

04719351

44

Bracket, Engine Wrap Foot

Part# 04719351

OEM Warranty Repair Part for Gravely

Currently unavailable

06220600

45

Bolt, Round Head Square Neck .25-20 x .50

Part# 06220600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06500710

46

Nut, Center Lock Flange .25-20

Part# 06500710 (Superseded to 06500821)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

07533600

47

Bumper, Rubber

Part# 07533600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06530400

48

Nut, Serrated Flange .31-18

Part# 06530400

OEM Warranty Repair Part for Gravely

Not available

05501127

49

Bushing, Flange .325 x .499 x .3 x .875

Part# 05501127

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06528700

50

Nut, Center Lock Flange .31-18

Part# 06528700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04717151

51

Plate, Back Foot Rest

Part# 04717151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

06543500

52

Nut, Locking Top Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

04739351

53

Guard, Heat Shield, ZT

Part# 04739351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.29

04739451

54

Strap, Heat Shield, ZT

Part# 04739451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

04739551

55

Guard, Hot Surface, ZT

Part# 04739551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

07500233

56

Cap, Dust

Part# 07500233

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07506500

57

Grommet, 1.0 I.D. x 1.38 O.D.

Part# 07506500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
