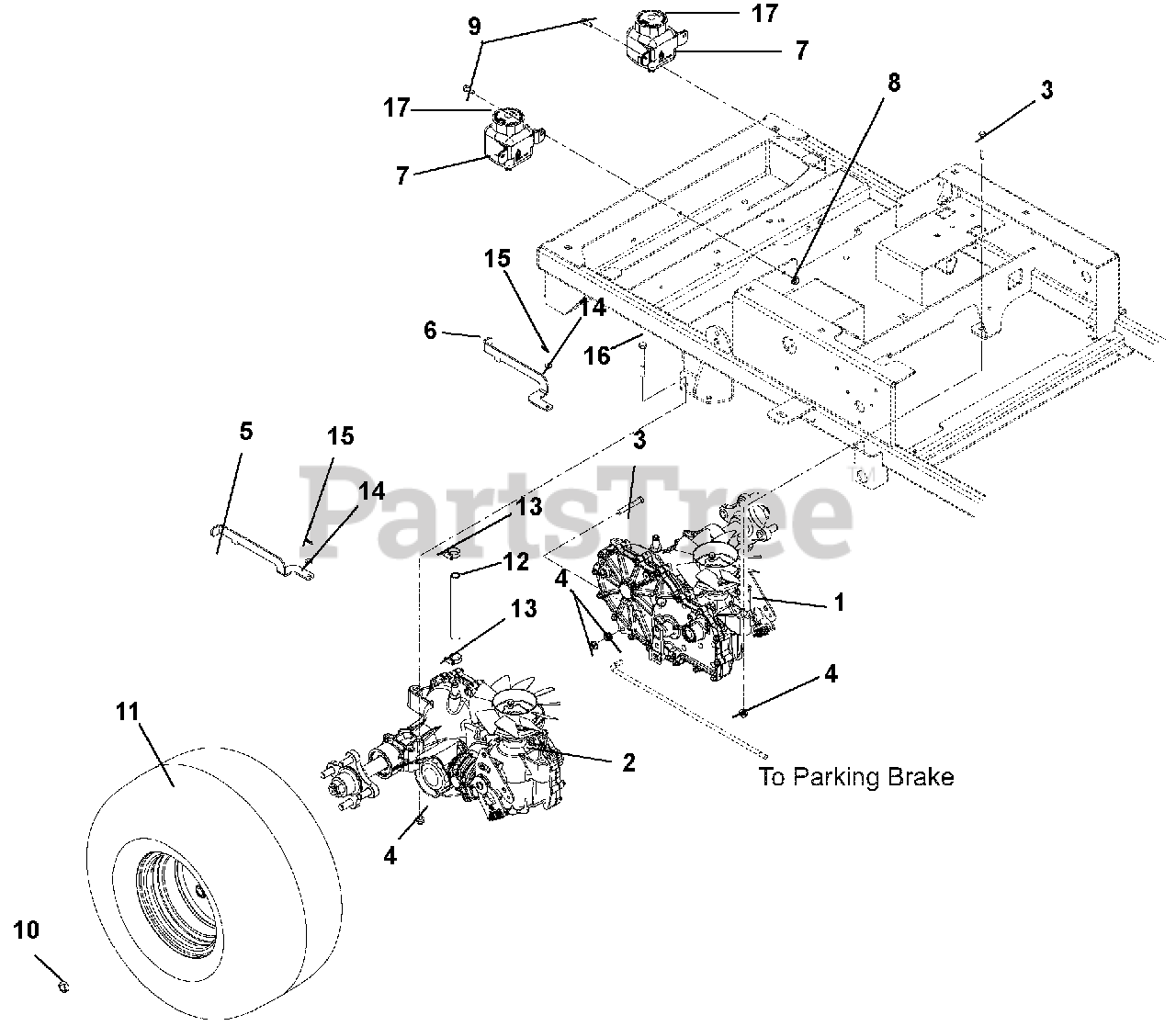

915195 - Ariens Zoom XL 48" Zero-Turn Mower, 22hp Kohler Twin, CARB (SN: 000101 & Above) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom XL 48" Zero-Turn Mower, 22hp Kohler Twin, CARB

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Ariens 03265700

TRANSAXLE, ZT2800 LH
(Superseded to 04828600)

$1551.99

$

Usually ships in 4-12 days

0

2

Ariens 03265800

TRANSAXLE, ZT2800 RH
(Superseded to 04828500)

$1551.99

$

Usually ships in 4-12 days

0

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 02996351

DUMP VALVE, RH

$19.99

$

Usually ships in 4-12 days

0

6

Ariens 02992151

DUMP VALVE, LH

$22.99

$

Usually ships in 4-12 days

0

7

Ariens 02970200

TANK, EXPANSION

$38.99

$

In Stock, Qty 10

0

8

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

10

Ariens 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 07100513

TIRE/WHEEL ASSY, 20X10.0-8 CTR

Note: (915165, 173, 195)

$186.99

$

Usually ships in 4-12 days

0

11

Ariens 07100737

TIRE/WHEEL ASM, 20X8.0-8 (SQ)

Note: (915163)

$139.99

$

Usually ships in 4-12 days

0

12

Ariens 07500039

HOSE, OIL RESERVOIR

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 6

0

14

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

16

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, only 2 left!

0

17

Ariens 21544042

CAP, HYDRO RESERVOIR REPLAC.

$24.99

$

Usually ships in 4-12 days

0
