915200 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 000101 - 019999) Control Panel Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

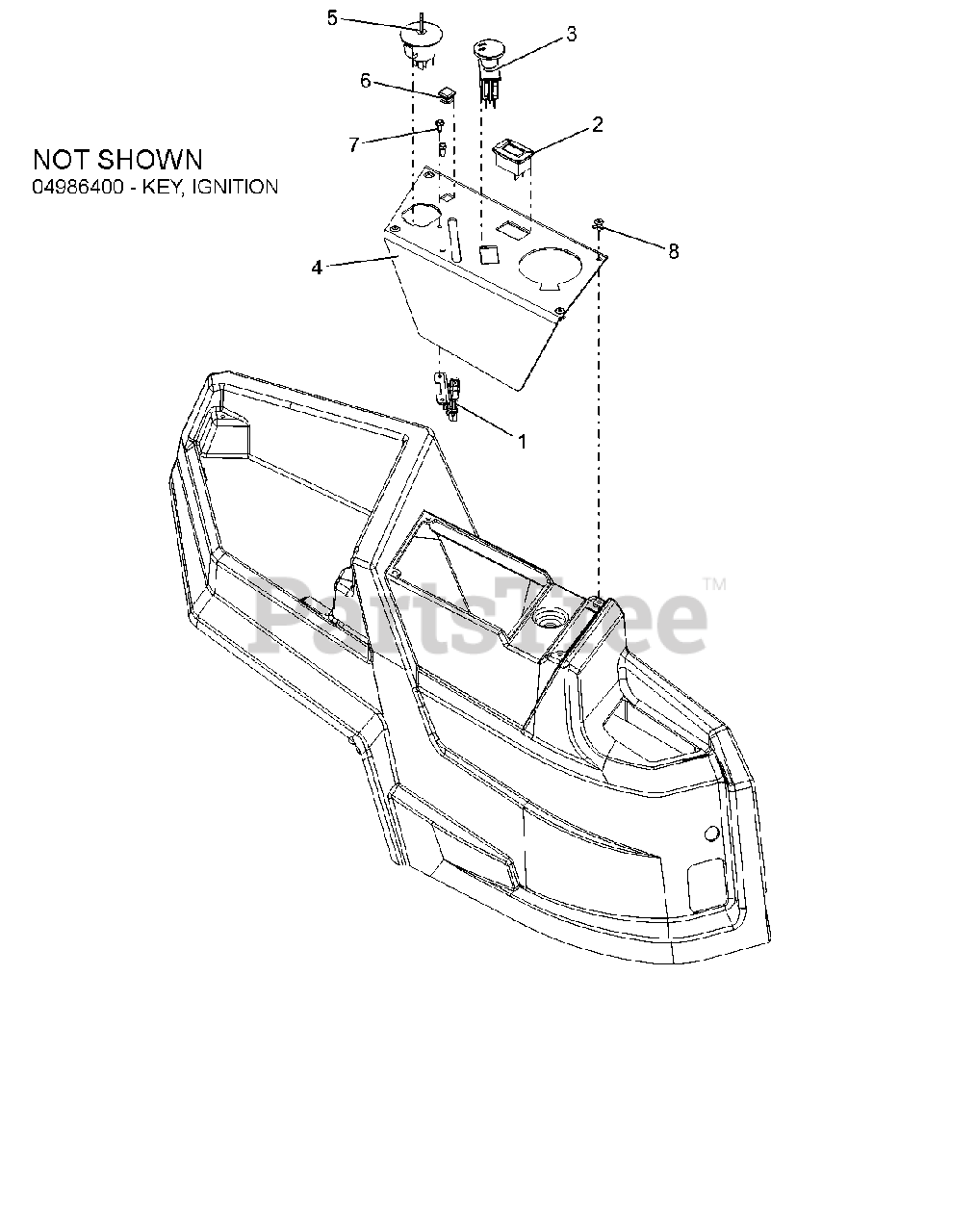

Control Panel Parts Diagram

  • Title

$

$

Not available

1

Gravely 06900620

CABLE - THROTTLE CONTROL

$51.99

$

In Stock, Qty 7

0

2

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

3

Gravely 04399600

SWITCH, CLUTCH (YELLOW)

$25.99

$

In Stock, Qty 20+

0

4

Gravely 04766953

PANEL, CONTROL

$50.99

$

Usually ships in 4-12 days

0

3

Gravely 04974300

KEYSWITCH-IGNITION 4 POS

Note: IF YOU HAVE THE 7 TERMINAL SWITCH, IT MATES WITH 04974400 WIRE HARNESS

$23.99

$

In Stock, Qty 20+

0

3

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

Note: IF YOU HAVE THE 5 TERMINAL SWITCH, IT MATES WITH 04794500 WIRE HARNESS

$18.99

$

In Stock, Qty 16

0

6

Gravely 07500123

PLUG, 5/8" SQ BLACK (14-20GA)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06830000

RIVET, PLASTIC .195 DIA.

$2.99

$

In Stock, Qty 20+

0

9

Gravely 04986400

KEY, IGNITION

Note: NOT SHOWN

$7.49

$

In Stock, Qty 20+

0

10

Gravely 06900621

CABLE - CHOKE, SNAP-IN

Note: NOT SHOWN

$31.99

$

In Stock, only 2 left!

0
