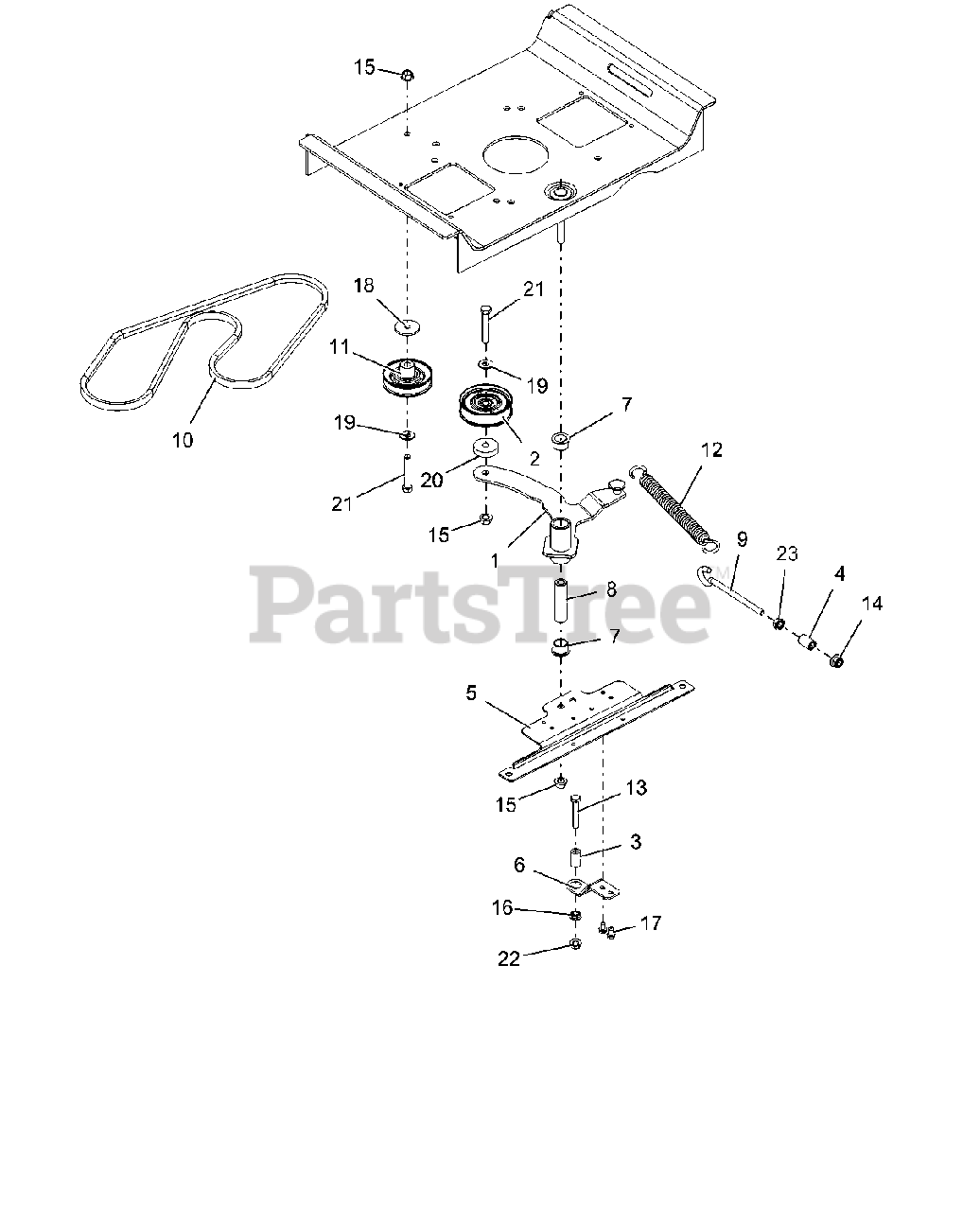

915200 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler Twin Pro (SN: 000101 - 019999) Transaxle Drive Parts Diagram

52" Zero-Turn Mower, 25hp Kohler Twin Pro

Transaxle Drive Parts Diagram

  • Title

1

Gravely 04890451

WLDMT,GRD DRIVE IDLER ARM-LGR

$62.99

$

In Stock, Qty 13

0

2

Gravely 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$23.99

$

In Stock, Qty 16

0

3

Gravely 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$3.49

$

In Stock, only 1 left!

0

4

Gravely 04193500

SPACER, .375X.625X.970 (PM)

$1.99

$

In Stock, Qty 14

0

5

Gravely 04875151

BRKT, DRIVE IDLER MOUNTING

$26.99

$

In Stock, only 2 left!

0

6

Gravely 04879351

BRKT, CLUTCH STOP (XL)

$22.99

$

In Stock, only 2 left!

0

7

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$8.49

$

In Stock, Qty 20+

0

8

Gravely 05501237

BUSHING, SLEEVE .38X.750X2.78

$18.99

$

In Stock, only 4 left!

0

9

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$18.99

$

In Stock, only 2 left!

0

10

Gravely 07200724

V-BELT, A-RAW EDGE

$55.99

$

In Stock, Qty 20+

0

11

Gravely 07345400

ASM, 3.00" V IDLER
(Superseded to 51531400)

$42.99

$

In Stock, Qty 12

0

12

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$29.99

$

In Stock, Qty 20+

0

13

Gravely 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$2.49

$

In Stock, Qty 16

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 01594000

SPACER, .39 X 1.50 X .380

$4.99

$

In Stock, Qty 11

0

21

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

22

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0
