915203 - Ariens Ikon-XL 42" Zero-Turn Mower, 22hp Kohler Twin (SN: 000101 & Above) Engine - Kohler 22HP Twin Parts Diagram

Ikon-XL 42" Zero-Turn Mower, 22hp Kohler Twin

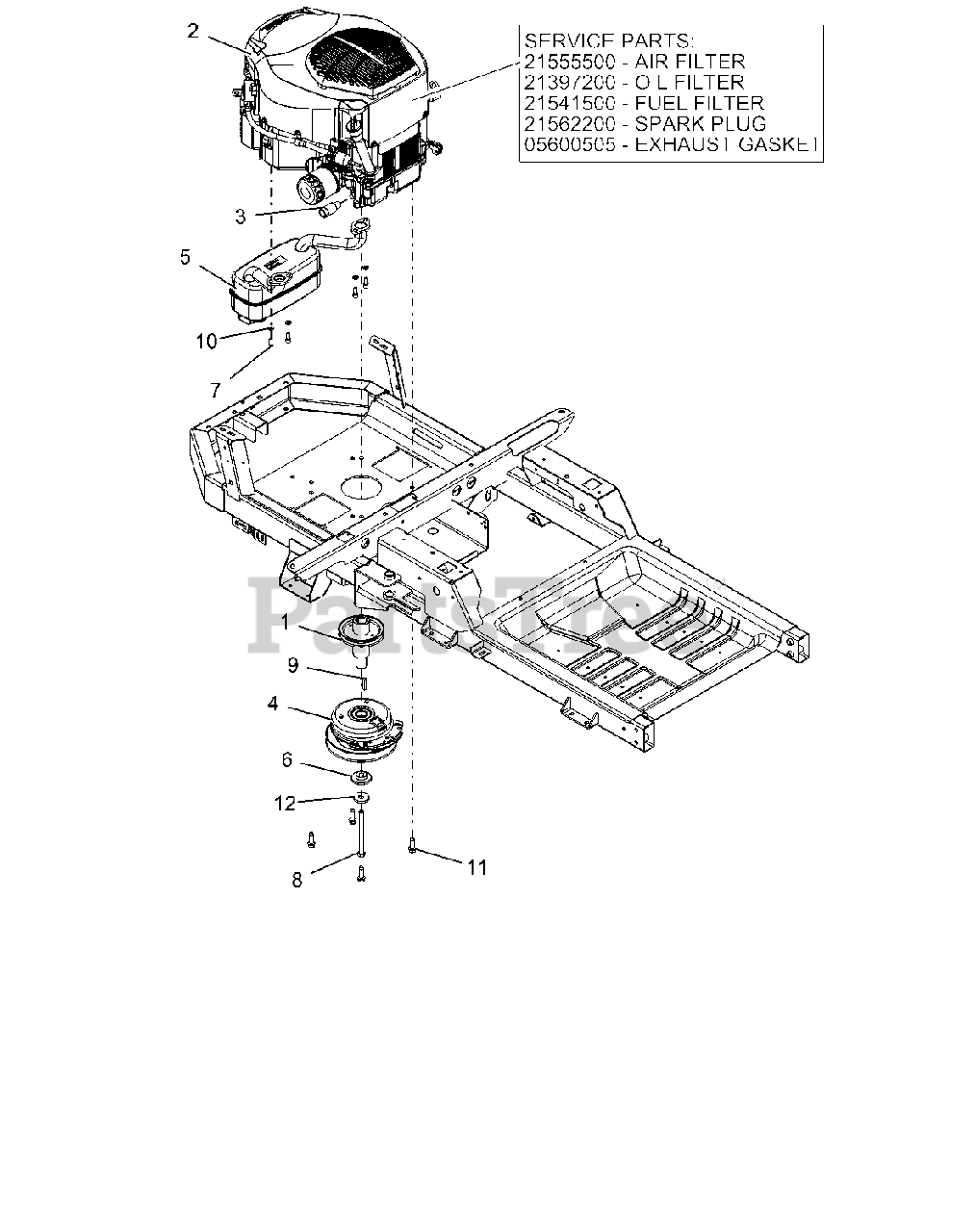

Engine - Kohler 22HP Twin Parts Diagram

  • Title

1

Ariens 07345000

WLDMT, DRIVE SHEAVE (LG XL)CZC

$64.99

$

Usually ships in 4-12 days

0

2

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$17.99

$

In Stock, only 1 left!

0

2

Ariens 21541500

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

2

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

$9.99

$

Usually ships in 4-12 days

0

2

Ariens 21555500

AIR CLEANER, KOHLER

$22.99

$

In Stock, Qty 8

0

2

Ariens 21562200

PLUG, SPARK (RFI)
(Superseded to 21500009)

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 08201140

ENGINE, KOHLER 22HP TWIN

$

$

Not available

3

Ariens 03943600

DRAIN, OIL

$9.99

$

In Stock, Qty 10

0

4

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

Usually ships in 4-12 days

0

5

Ariens 04783600

MUFFLER, KOHLER TWIN

$134.99

$

Usually ships in 4-12 days

0

6

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

7

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, Qty 11

0

8

Ariens 05901606

BLT-HEX.438-20X5 GR8 YZ NYTORQ
(Superseded to 05901823)

$6.99

$

Usually ships in 4-12 days

0

9

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

10

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0
