915204 (ZT XL 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 035000 - 039999) Discharge Chute Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

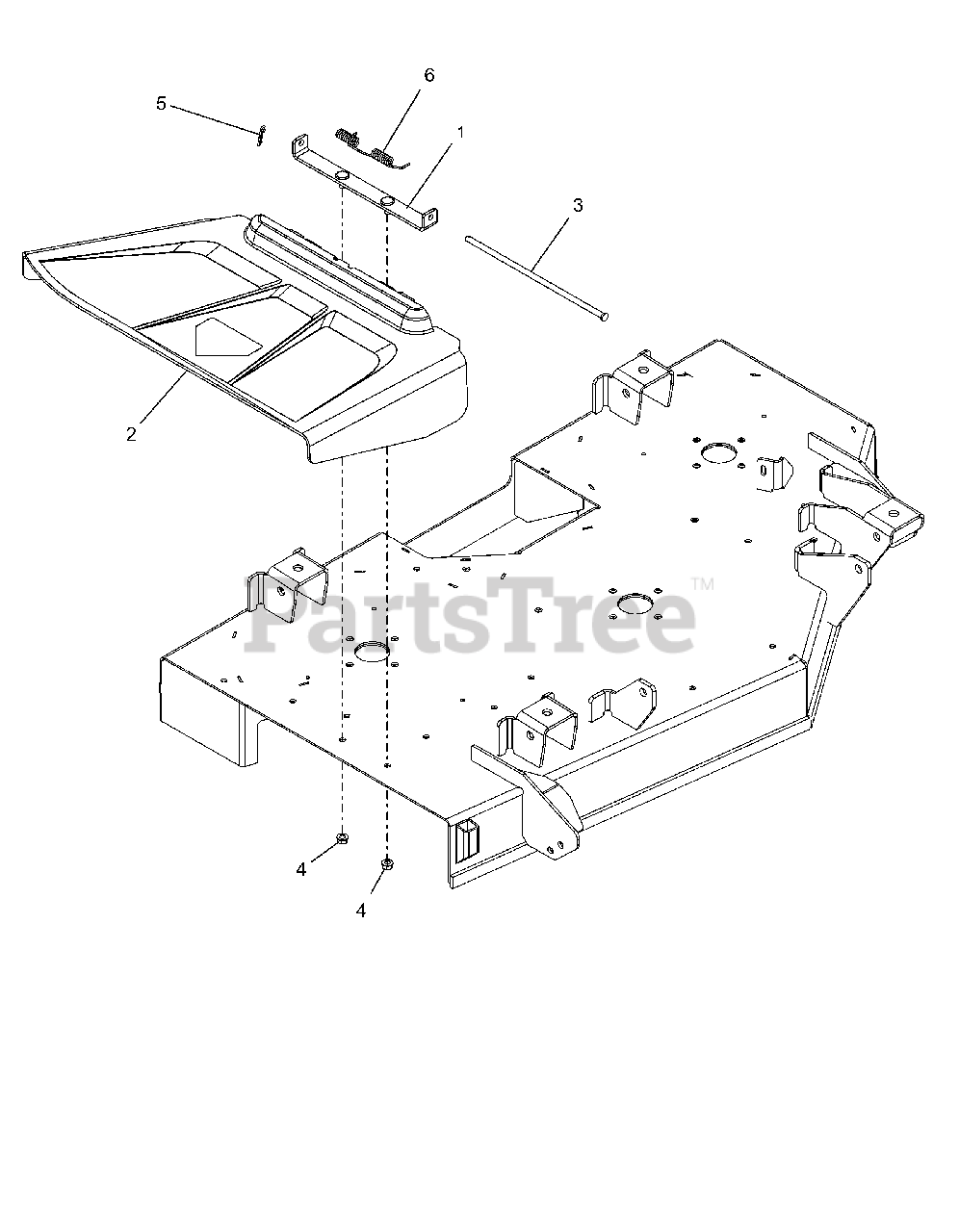

Discharge Chute Parts Diagram

  • Title

1

Gravely 04799853

WLDMT, CHUTE MT BRKT
(Superseded to 04799800)

$19.99

$

In Stock, Qty 5

0

2

Gravely 04795000

CHUTE, SIDE DISCHARGE

$44.99

$

In Stock, Qty 20+

0

3

Gravely 04815900

PIN, 5/16 X 10.5
(Superseded to 06800205)

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 7

0

6

Gravely 08300621

SPRING-TORSION

$5.99

$

In Stock, Qty 16

0
