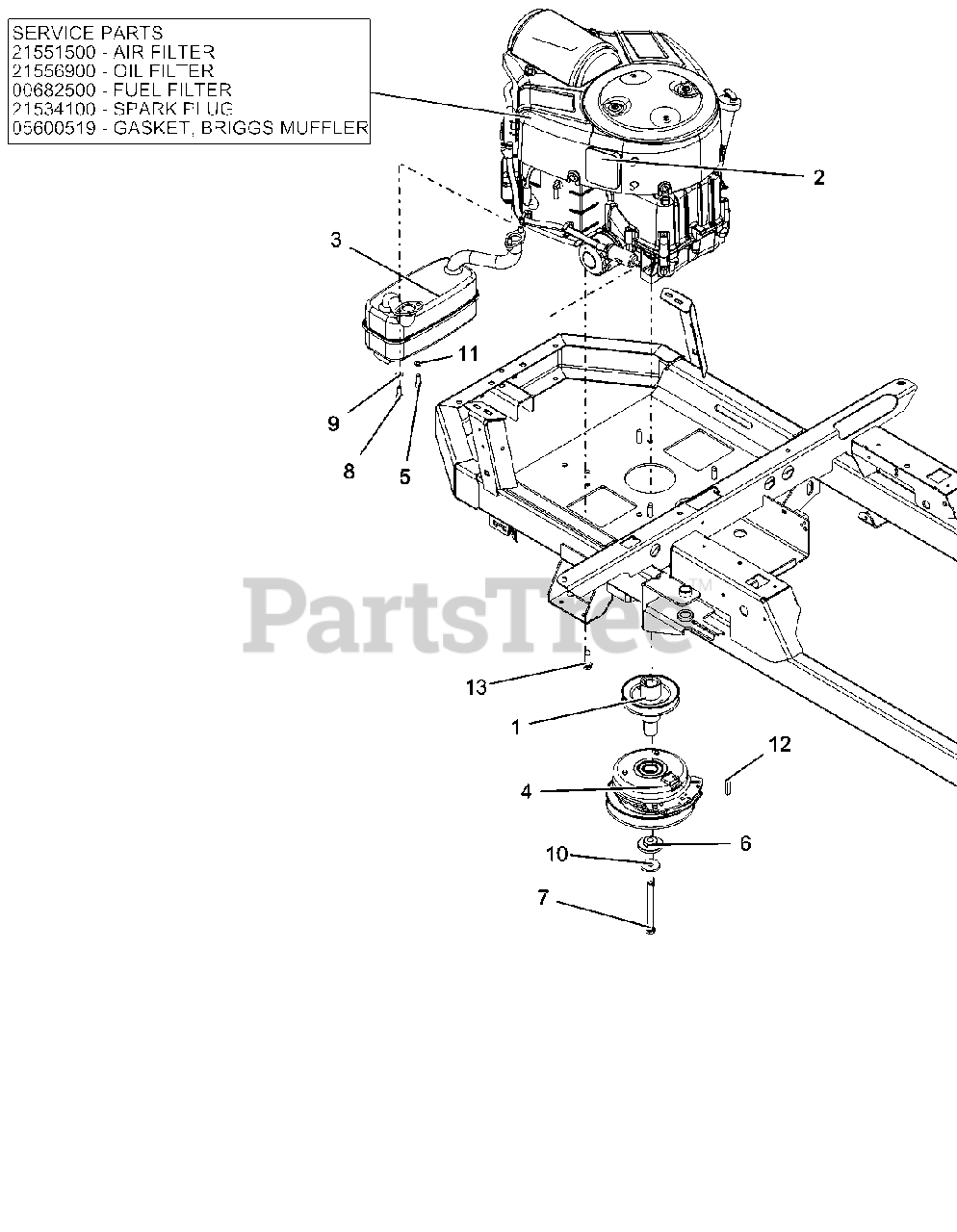

915207 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Engine - Briggs & Stratton Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Briggs & Stratton

Engine - Briggs & Stratton Parts Diagram

  • Title

1

Ariens 07345200

WLDMT,DRIVE SHEAVE-X BRIGGS BL

$298.99

$

Usually ships in 4-12 days

0

2

Ariens 21534100

PLUG, SPARK

Note: SERVICE PART

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 21551500

FILTER, BRIGGS AIR

Note: SERVICE PART

$46.99

$

Usually ships in 4-12 days

0

2

Ariens 21556900

OIL FILTER, BRIGGS

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

2

Ariens 00682500

GASOLINE FILTER, BRIGGS

Note: SERVICE PART

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 05600519

GASKET, MUFFLER BRIGGS 690970

Note: SERVICE PART

$8.49

$

Usually ships in 4-12 days

0

2

Ariens 08201130

ENGINE, B&S 22HP IKON

$

$

Not available

3

Ariens 01557000

MUFFLER ASSEMBLY

$171.99

$

In Stock, only 1 left!

0

4

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$263.99

$

In Stock, Qty 14

0

5

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, only 3 left!

0

6

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 2 left!

0

7

Ariens 05901707

BLT-HEX.438-20X4.5GR8YZ NYTORQ
(Superseded to 05901820)

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, only 3 left!

0

9

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 14

0

10

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 3 left!

0

11

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 14

0

12

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 2 left!

0

13

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.49

$

In Stock, only 3 left!

0
