915208 (ZT 34) - Gravely 34" Zero-Turn Mower, 21hp Kohler Twin CARB (SN: 000101 & Above) Seat And Seat Support - 34" Parts Diagram

34" Zero-Turn Mower, 21hp Kohler Twin CARB

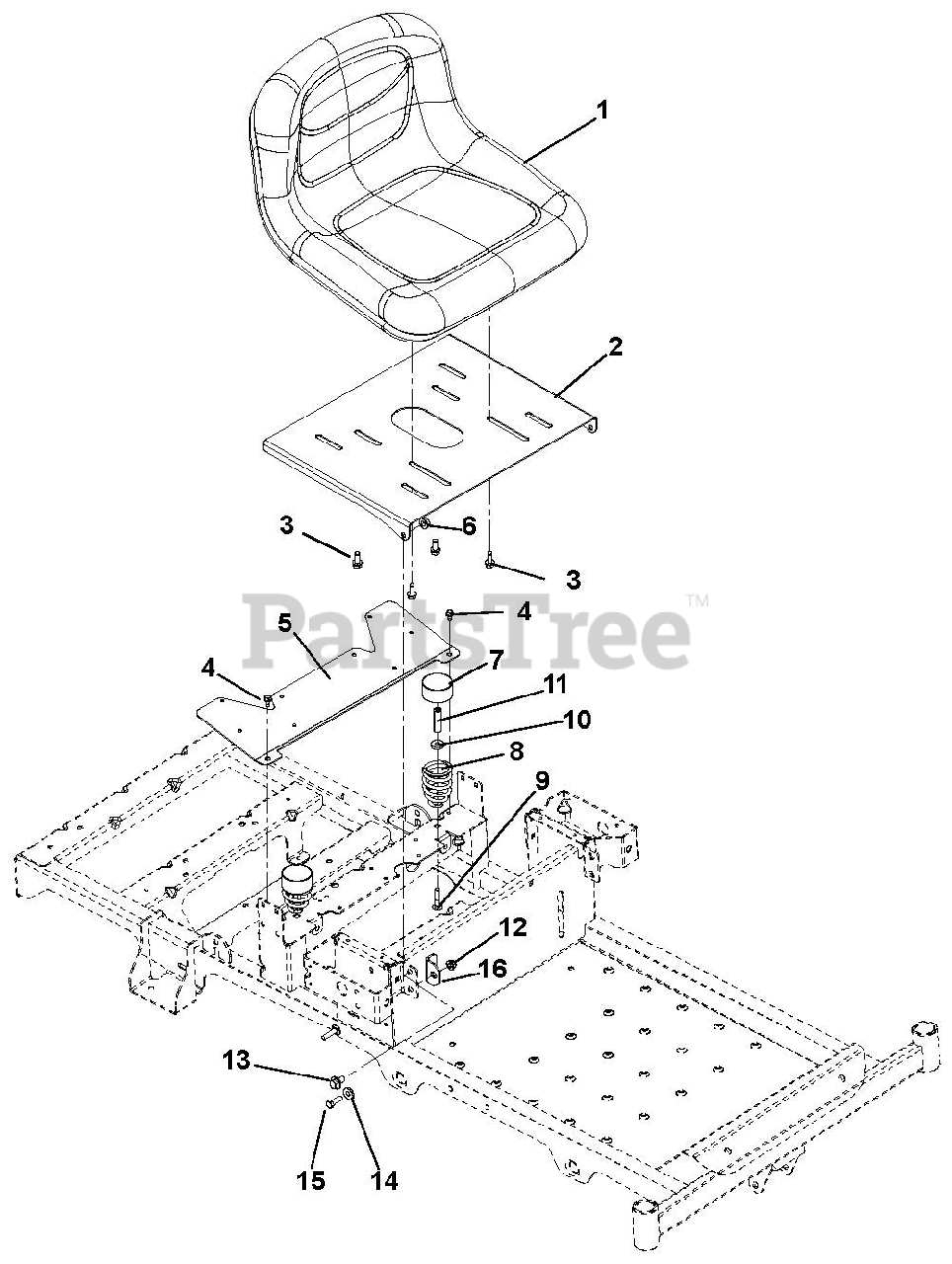

Seat And Seat Support - 34" Parts Diagram

  • Title

1

Gravely 03795800

SEAT-13" GREY

$

$

Not available

2

Gravely 03782051

PLATE, SEAT

$98.99

$

Usually ships in 4-12 days

0

3

Gravely 05900033

5/16-18X3/4 HX/W/HD WHIZ
(Superseded to 07001820)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03753351

GUARD, FAN
(Superseded to 51534500)

$55.99

$

Usually ships in 4-12 days

0

6

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00337700

HUB CAP

$2.99

$

In Stock, only 2 left!

0

8

Gravely 08300021

SPRING, SEAT

$20.99

$

In Stock, only 1 left!

0

9

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

10

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

11

Gravely 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

14

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

15

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

16

Gravely 03798751

BRKT, SEAT STOP

$64.99

$

Usually ships in 4-12 days

0
