915211 - Ariens Zoom 34" Zero-Turn Mower, 19hp Kohler Twin (SN: 000101 & Above) Belt Covers And Blades - 34" Parts Diagram

Zoom 34" Zero-Turn Mower, 19hp Kohler Twin

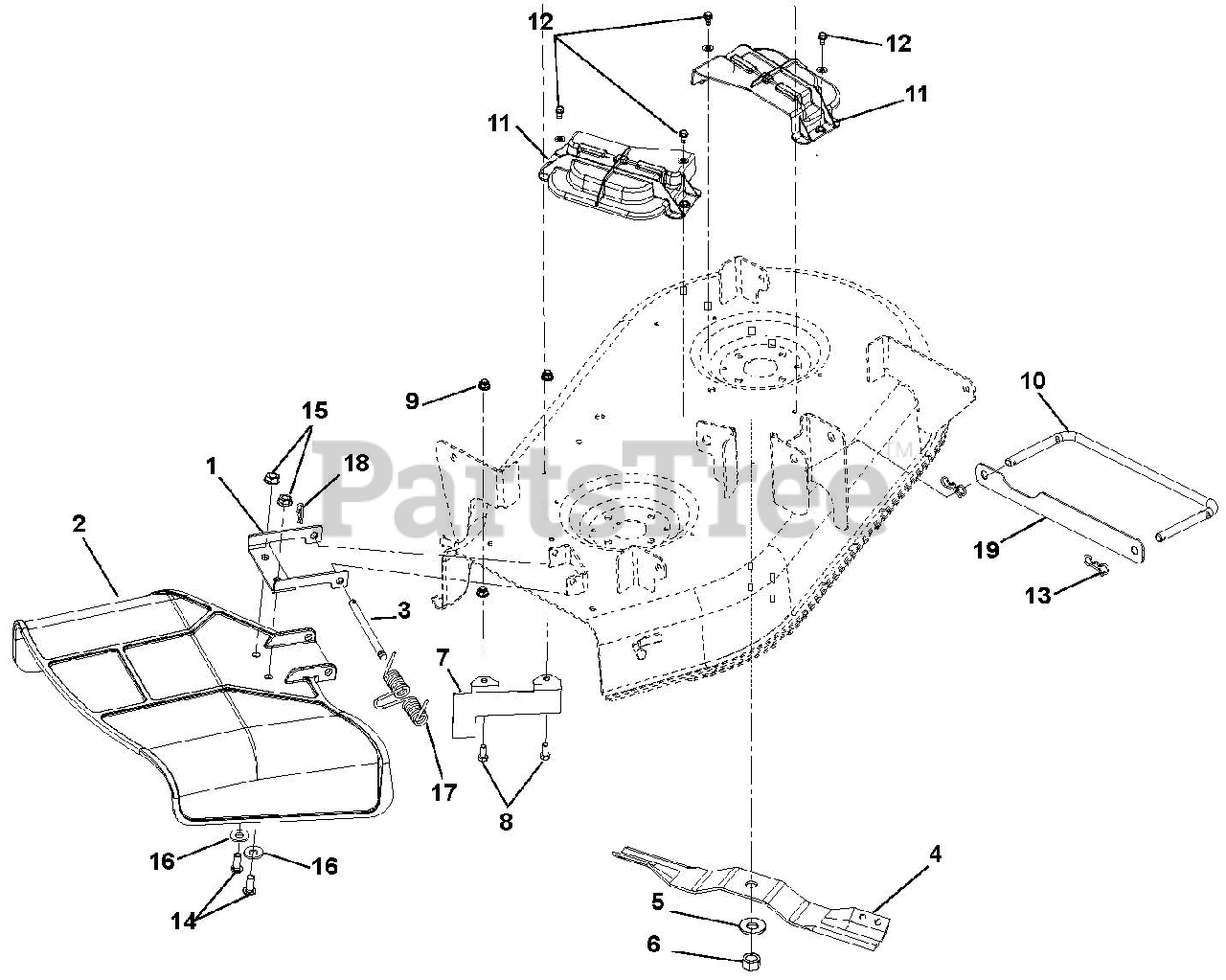

Belt Covers And Blades - 34" Parts Diagram

  • Title

1

Ariens 00662659

CHUTE REINFORCEMENT

$25.99

$

In Stock, only 2 left!

0

2

Ariens 03994300

CHUTE, SIDE DISCHARGE

$58.99

$

In Stock, Qty 8

0

3

Ariens 06800002

PIN, 5/16 X 3.88"

$9.99

$

In Stock, Qty 11

0

4

Ariens 03971900

BLADE, MOWER 17.35

$23.99

$

In Stock, Qty 20+

0

5

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

6

Ariens 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 03779259

BRKT-BAFFLE, DISCHARGE 34"

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 04377667

WIREFORM, DRAG LINK
(Superseded to 04377600)

$24.99

$

In Stock, Qty 17

0

11

Ariens 04323800

COVER-BELT, MOLDED

$23.99

$

Usually ships in 4-12 days

0

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$2.99

$

In Stock, Qty 20+

0

14

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$4.99

$

In Stock, Qty 10

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 01258100

SPRING, TORSION

$9.99

$

In Stock, only 3 left!

0

18

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 04424951

STRAP, DRAG LINK
(Superseded to 04424967)

$20.99

$

In Stock, only 3 left!

0
