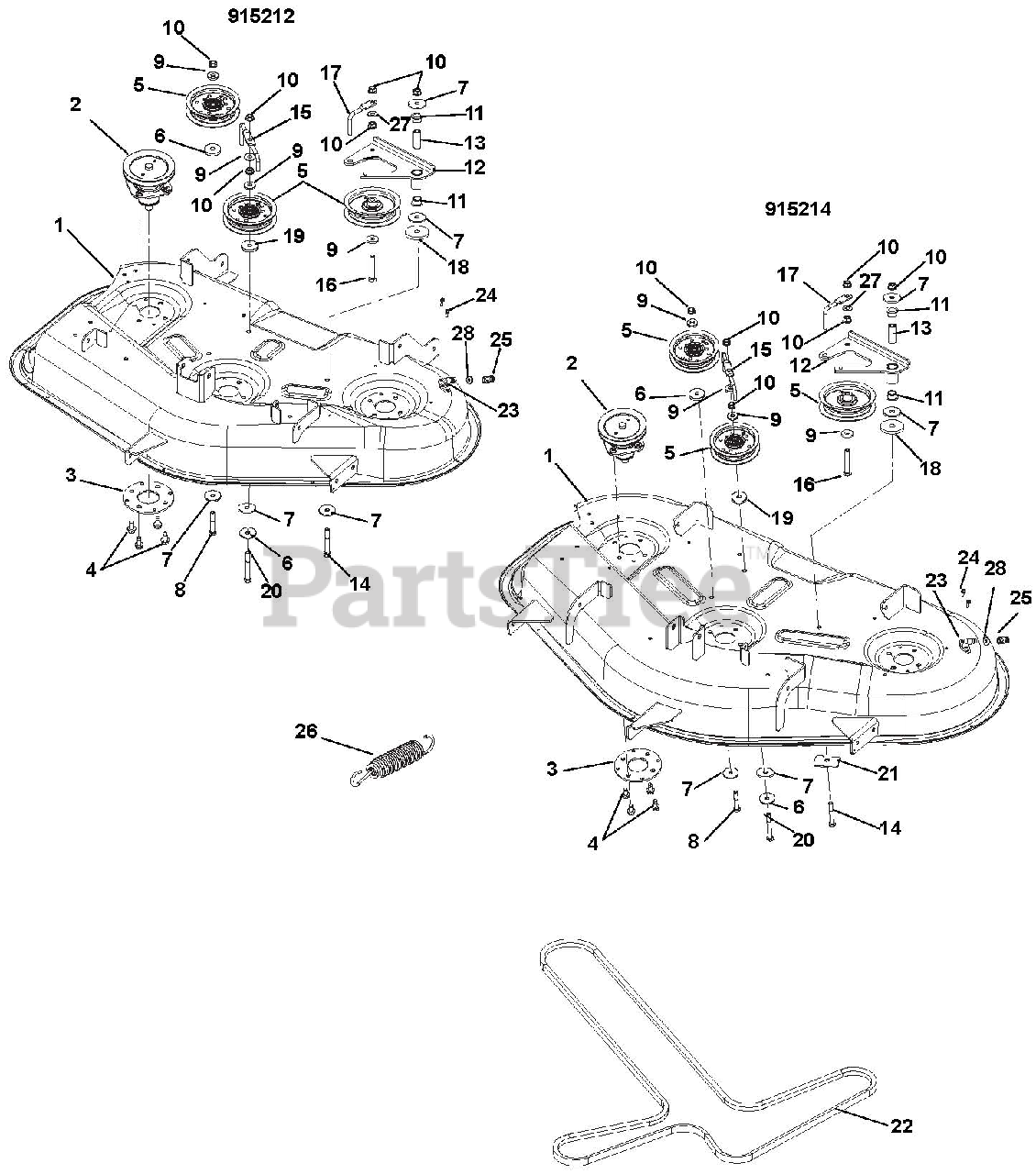

915214 (ZT 50) - Gravely 50" Zero-Turn Mower, Kohler (SN: 000101 & Above) Mower Deck, Belt And Idlers Parts Diagram

50" Zero-Turn Mower, Kohler

Mower Deck, Belt And Idlers Parts Diagram

  • Title

1

Gravely 51523800

Kit, Gravely 42" Deck with Decals

Note: (915212)

$1081.99

$

Usually ships in 4-12 days

0

1

Gravely 51523900

Kit, Gravely 50" Deck with Decals

Note: (915214)

$1494.99

$

Usually ships in 4-12 days

0

2

Gravely 51520900

Assembly, Spindle

Note: (915212)

$170.99

$

In Stock, Qty 11

0

2

Gravely 51519500

Assembly, Spindle

Note: (915214)

$159.99

$

In Stock, Qty 11

0

3

Gravely 03839053

Plate, Spindle

$23.99

$

In Stock, only 3 left!

0

4

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

6

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125
(Superseded to 06401106)

Note: (915212)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125
(Superseded to 06401106)

Note: (915214)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05500907

Bushing, Flange, .625 x .750 x .500 x 1.00

$6.99

$

In Stock, Qty 20+

0

12

Gravely 04430867

Idler Arm
(Superseded to 04430851)

$58.99

$

Usually ships in 4-12 days

0

13

Gravely 03763400

Spacer, .375ID x .625 OD x 1.66

$4.99

$

In Stock, Qty 17

0

14

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

15

Gravely 03974153

Belt Finger
(Superseded to 03974100)

$11.99

$

In Stock, only 2 left!

0

16

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 03828853

Wireform Belt Finger
(Superseded to 03828800)

$9.99

$

In Stock, Qty 11

0

18

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

19

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 04061053

Plate, Deck

Note: (915214)

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 07200523

V-Belt, 4L Wrapped

Note: (915212)

$72.99

$

In Stock, Qty 20+

0

22

Gravely 07200524

V-Belt, 4L Wrapped

Note: (915214)

$87.99

$

In Stock, only 4 left!

0

23

Gravely 04428900

Assy, Washout Port W/O Ring

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 07400103

Screw, Tapping .25-20 x .62 Hex Washer Head Thread Rolling
(Superseded to 07400135)

$2.99

$

In Stock, only 3 left!

0

25

Gravely 04396500

Coupling, Quick Disconnect

$23.99

$

In Stock, only 2 left!

0

26

Gravely 08320300

Extension Spring .135 x .98 x 6.0

$19.99

$

In Stock, Qty 12

0

27

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05600513

O-Ring .362 X .103 X .568

$6.99

$

Usually ships in 4-12 days

0
