915215 - Ariens Zoom 50" Zero-Turn Mower, 21hp Kohler Twin (SN: 000101 & Above) Transmission, LH - 04382300 Parts Diagram

Zoom 50" Zero-Turn Mower, 21hp Kohler Twin

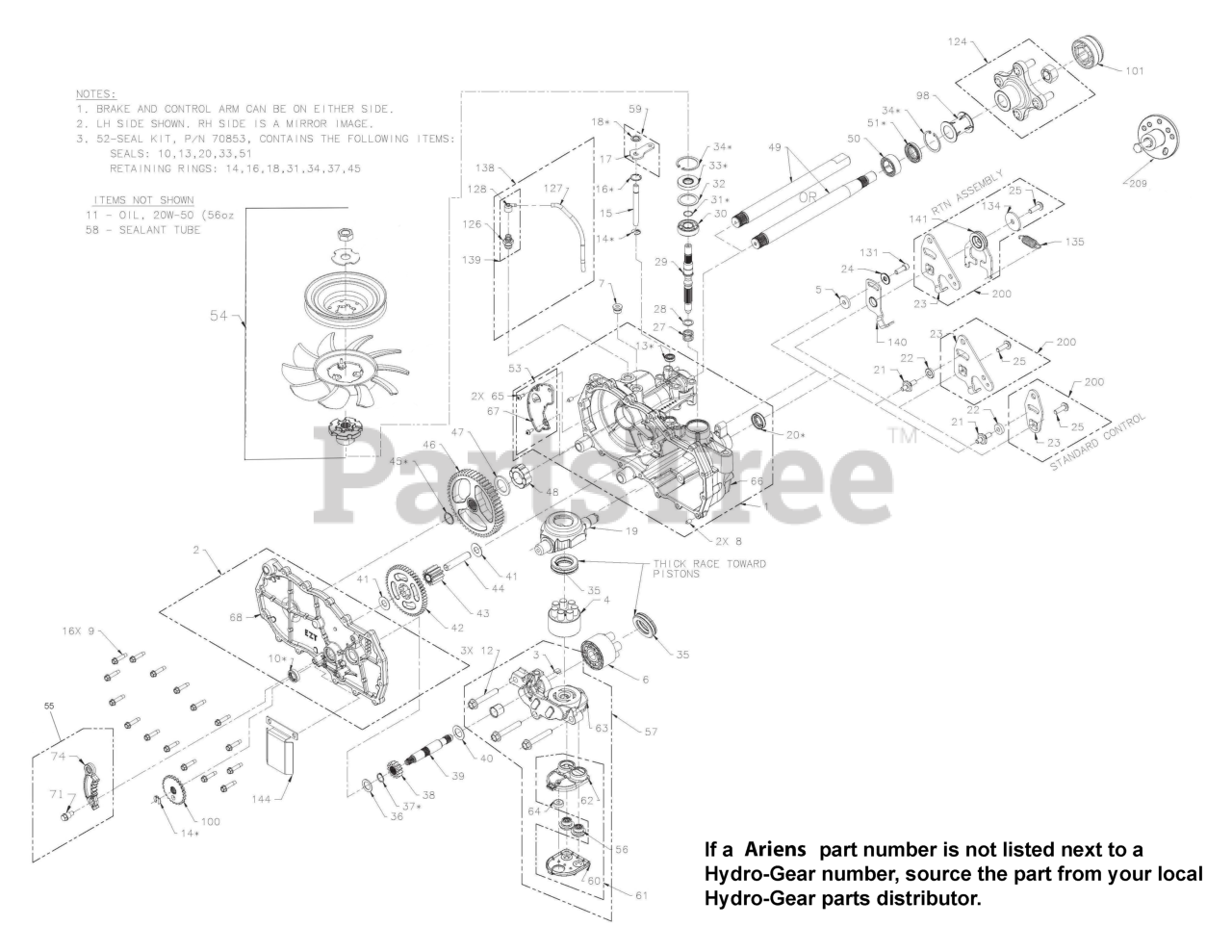

Transmission, LH - 04382300 Parts Diagram

  • Title

1

Ariens 21543985

ASSEMBLY, MAIN HOUSING-LH

Note: INCLUDES ITEMS 8, 65, 66, 37 Hydro-Gear p/n 70862L

$271.99

$

Usually ships in 4-12 days

0

2

Ariens 21548913

HG (70863L)
(Superseded to 21543986)

Note: INCLUDES ITEM 68 Hydro-Gear p/n 70863L

$119.99

$

Usually ships in 4-12 days

0

(2)

Ariens ARI9945A53

BUSHING, .711 X .789 X .778

$

$

Currently unavailable

(3)

Ariens ARI9944A34

PLATE, BYPASS

$

$

Currently unavailable

4

Ariens 21543921

ASSY, BLOCK 7 PISTON

Note: Hydro-Gear p/n 70723

$142.99

$

Usually ships in 4-12 days

0

5

Ariens 21543870

SPACER

Note: Hydro-Gear p/n 54315

$

$

Not available

6

Ariens 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

7

Ariens ARI9943A42

PLUG, 9/1 6- 18

Note: (METAL) Hydro-Gear p/n 9005110-5600

$

$

Currently unavailable

9

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: (SELF TAPPING) Hydro-Gear p/n 53246

$2.49

$

Usually ships in 4-12 days

0

10

Ariens ARI9942A61

SEAL, LIP .625 X 1.000 X .250

$

$

Currently unavailable

10

Ariens ARI9941A51

SEAL, LIP .50 X .88 X .25

$

$

Currently unavailable

11

Ariens ARI9940A70

OIL, 20W-50

Note: 56oz NOT SHOWN

$

$

Currently unavailable

(12)

Ariens ARI9939A80

BOLT, HEX FLAGE3/8- 24 X 2.5

$

$

Currently unavailable

13

Ariens ARI9938A37

SEAL, LIP .375 X .75 X .25

$

$

Currently unavailable

14

Ariens ARI9937A53

RING, RETAINING .375 EXT

$

$

Currently unavailable

15

Ariens 21543844

ROD, BYPASS

Note: Hydro-Gear p/n 51625

$

$

Not available

16

Ariens ARI9936A67

RING, RETAINING .750 INT

$

$

Currently unavailable

18

Ariens ARI9935A42

RING, RETAINING .375 EXT

Note: (PUSHNUT)

$

$

Currently unavailable

19

Ariens 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

20

Ariens ARI9934A60

SEAL, LIP 18 X 32 X 7

$

$

Currently unavailable

24

Ariens 08611200

WASHER

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

(26)

Ariens ARI9933A56

ASSEMBLY, FITTING 9/16

$

$

Currently unavailable

27

Ariens 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

(27)

Ariens ARI9932A45

HOSE, EXP TANK

$

$

Currently unavailable

28

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

(28)

Ariens ARI9931A38

CAP, BARBED VENT

$

$

Currently unavailable

29

Ariens 21543785

SHAFT, INPUT

Note: Hydro-Gear p/n 51062

$96.99

$

Usually ships in 4-12 days

0

30

Ariens 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$12.99

$

Usually ships in 4-12 days

0

31

Ariens ARI9930A38

RING, RETAINING WIRE .561 ID

$

$

Currently unavailable

32

Ariens 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$5.99

$

Usually ships in 4-12 days

0

33

Ariens N/A

BATTERY, GROUP 26, 540CCA

$

$

Currently unavailable

34

Ariens N/A

BATTERY, GROUP 26, 540CCA

$

$

Currently unavailable

35

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

36

Ariens 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$3.49

$

Usually ships in 4-12 days

0

37

Ariens 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

38

Ariens 21543807

GEAR, 13T PINNION

Note: Hydro-Gear p/n 51130

$5.49

$

Usually ships in 4-12 days

0

(38)

Ariens ARI9929A47

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71510

$

$

Currently unavailable

39

Ariens 21543849

SHAFT, MOTOR

Note: Hydro-Gear p/n 51632

$53.99

$

Usually ships in 4-12 days

0

(39)

Ariens ARI9928A16

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71524

$

$

Currently unavailable

40

Ariens 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

41

Ariens 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

42

Ariens 21543806

GEAR, 10T/48T

Note: Hydro-Gear p/n 51129

$44.99

$

In Stock, only 1 left!

0

43

Ariens 21543781

GEAR, 10T JACKSHAFT

Note: Hydro-Gear p/n 51043

$

$

Not available

44

Ariens 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

45

Ariens ARI9927A55

RING, SPIRAL RETAINING

$

$

Currently unavailable

46

Ariens ARI9926A45

GEAR, 52T BULL

Note: Hydro-Gear p/n 52541

$

$

Currently unavailable

47

Ariens ARI9925A66

WASHER, I.018 X I.57 X .I05

Note: Hydro-Gear p/n 52532

$

$

Currently unavailable

48

Ariens ARI9924A47

SLEEVE BEARING

Note: (INBOARD) Hydro-Gear p/n 52542

$

$

Currently unavailable

49

Ariens ARI9923A24

SHAFT, AXLE

Note: Hydro-Gear p/n 53706

$

$

Currently unavailable

50

Ariens ARI9922A40

BEARING, SLEEVE, I.00 X I.57 X .62

Note: Hydro-Gear p/n 51517

$

$

Currently unavailable

51

Ariens ARI9921A75

SEAL, LIP 1.00 X 1.57 X .25

$

$

Currently unavailable

51

Ariens ARI9920A58

SEAL, LIP .375 X .75 X .25

$

$

Currently unavailable

52

Ariens 21543935

KIT, SEALS AND RETAINING

Note: Hydro-Gear p/n 70853

$71.99

$

In Stock, only 1 left!

0

53

Ariens 21543987

KIT, EXPANSION PLATE LH

Note: INCLUDES ITEMS 65, 67 Hydro-Gear p/n 70868L

$14.99

$

Usually ships in 4-12 days

0

54

Ariens 01569100

KIT-FAN & PULLEY-6"

Note: INCLUDES ITEMS 119, 120, 121, 122, 123 Hydro-Gear p/n 72137

$56.99

$

In Stock, only 4 left!

0

55

Ariens 00951000

BRAKE ARM, EZT #70865
(Superseded to 51517600)

Note: Hydro-Gear p/n 70865

$28.99

$

In Stock, only 3 left!

0

(56)

Ariens ARI9919A57

CHECK PLUG ASSEMBLY , .027, WASHER

$

$

Currently unavailable

57

Ariens ARI9918A11

KIT, CENTER SECTION, W/FILTER - LH

Note: Hydro-Gear p/n 71529

$

$

Currently unavailable

58

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

59

Ariens 21543937

KIT, BYPASS ARM

Note: Hydro-Gear p/n 70891

$6.49

$

Usually ships in 4-12 days

0

(60)

Ariens ARI9917A99

ASSEMBLY, COVER

$

$

Currently unavailable

61

Ariens 21543958

KIT, FILTER

Note: Hydro-Gear p/n 71497

$19.99

$

Usually ships in 4-12 days

0

(62)

Ariens ARI9916A32

FILTER, BASE

$

$

Currently unavailable

(63)

Ariens ARI9915A58

CENTER SECTION, LH, 7P

$

$

Currently unavailable

(64)

Ariens ARI9914A46

MAGNET

$

$

Currently unavailable

(71)

Ariens ARI9913A83

BOLT, 1/4-20 X 1 SHOULDER W/PATCH

$

$

Currently unavailable

(74)

Ariens ARI9912A71

ARM, BRAKE

$

$

Currently unavailable

98

Ariens ARI9911A98

TUBE, AXLE

Note: Hydro-Gear p/n 53731

$

$

Currently unavailable

100

Ariens 21543851

DISC, COG BRAKE

Note: Hydro-Gear p/n 51635

$13.99

$

Usually ships in 4-12 days

0

101

Ariens ARI9910A13

CAP, AXLE

Note: Hydro-Gear p/n 53088

$

$

Currently unavailable

124

Ariens ARI9909A16

KIT, HUB 1/2-20

Note: Hydro-Gear p/n 71405

$

$

Currently unavailable

(126)

Ariens ARI9908A40

ASSEMBLY, FITTING 9/I6

$

$

Currently unavailable

(127)

Ariens ARI9907A95

HOSE, EXP TANK

$

$

Currently unavailable

(128)

Ariens ARI9906A47

CAP, BARBED VENT

$

$

Currently unavailable

131

Ariens ARI9905A11

KIT, RTN SCREWS

Note: Hydro-Gear p/n 71341

$

$

Currently unavailable

135

Ariens 21543876

SPRING, EXTENSION

Note: Hydro-Gear p/n 52401

$4.49

$

In Stock, Qty 20+

0

138

Ariens ARI9904A96

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71510

$

$

Currently unavailable

139

Ariens ARI9903A67

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71524

$

$

Currently unavailable

140

Ariens 21543867

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51946

$12.99

$

Usually ships in 4-12 days

0

200

Ariens ARI9902A17

KIT, RTN, BIDIRECTIONAL

Note: Hydro-Gear p/n 71592

$

$

Currently unavailable

209

Ariens 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: (UNIVERSAL) Hydro-Gear p/n 72320

$452.99

$

Usually ships in 4-12 days

0
