915216 (ZT XL 60) - Gravely 60" Zero-Turn Mower, 26hp Kohler Pro (SN: 000101 - 019999) Engine - Kohler PRO 26 Parts Diagram

60" Zero-Turn Mower, 26hp Kohler Pro

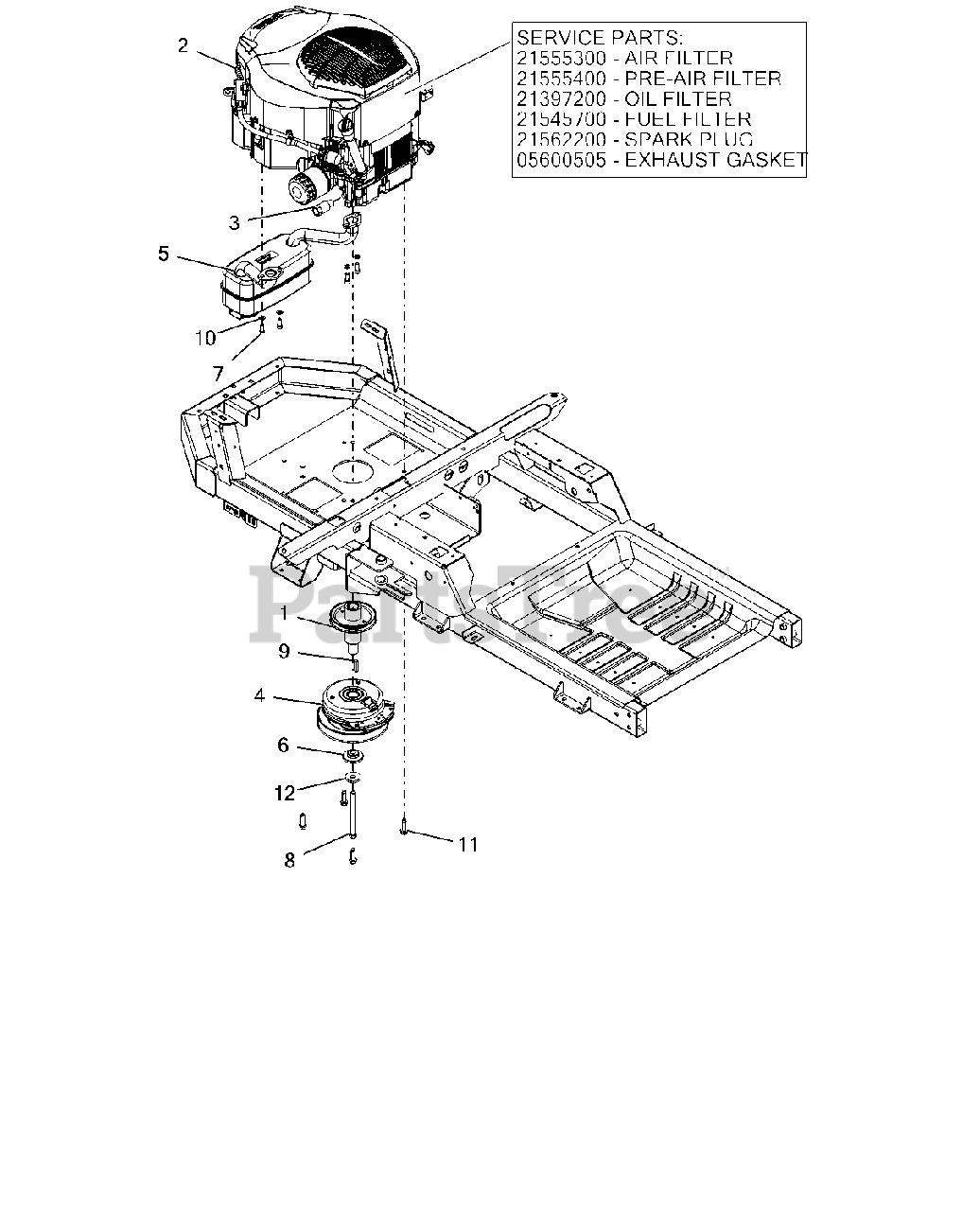

Engine - Kohler PRO 26 Parts Diagram

  • Title

1

Gravely 07345000

WLDMT, DRIVE SHEAVE (LG XL)CZC

$65.99

$

Usually ships in 4-12 days

0

2

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 05600505

GASKET, MUFFLER COURAGE TWIN

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

$18.99

$

In Stock, Qty 20+

0

2

Gravely 21555300

AIR FILTER, KOHLER

$29.99

$

In Stock, Qty 20+

0

2

Gravely 21555400

PRE CLEANER, KOHLER

$7.49

$

In Stock, Qty 20+

0

2

Gravely 08201212

ENGINE, KOHLER 26 HP PRO W/SC

$

$

Not available

2

Gravely 21562200

PLUG, SPARK (RFI)
(Superseded to 21500009)

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 03943600

DRAIN, OIL

$15.99

$

In Stock, Qty 7

0

4

Gravely 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$263.99

$

In Stock, Qty 9

0

5

Gravely 04783600

MUFFLER, KOHLER TWIN

$148.99

$

Usually ships in 4-12 days

0

6

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 2 left!

0

7

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05901606

BLT-HEX.438-20X5 GR8 CZ NYTORQ
(Superseded to 05901823)

$7.49

$

In Stock, Qty 6

0

9

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 12

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, Qty 6

0
