915217 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 000101 & Above) Deck Lift And Height Of Cut Parts Diagram
Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

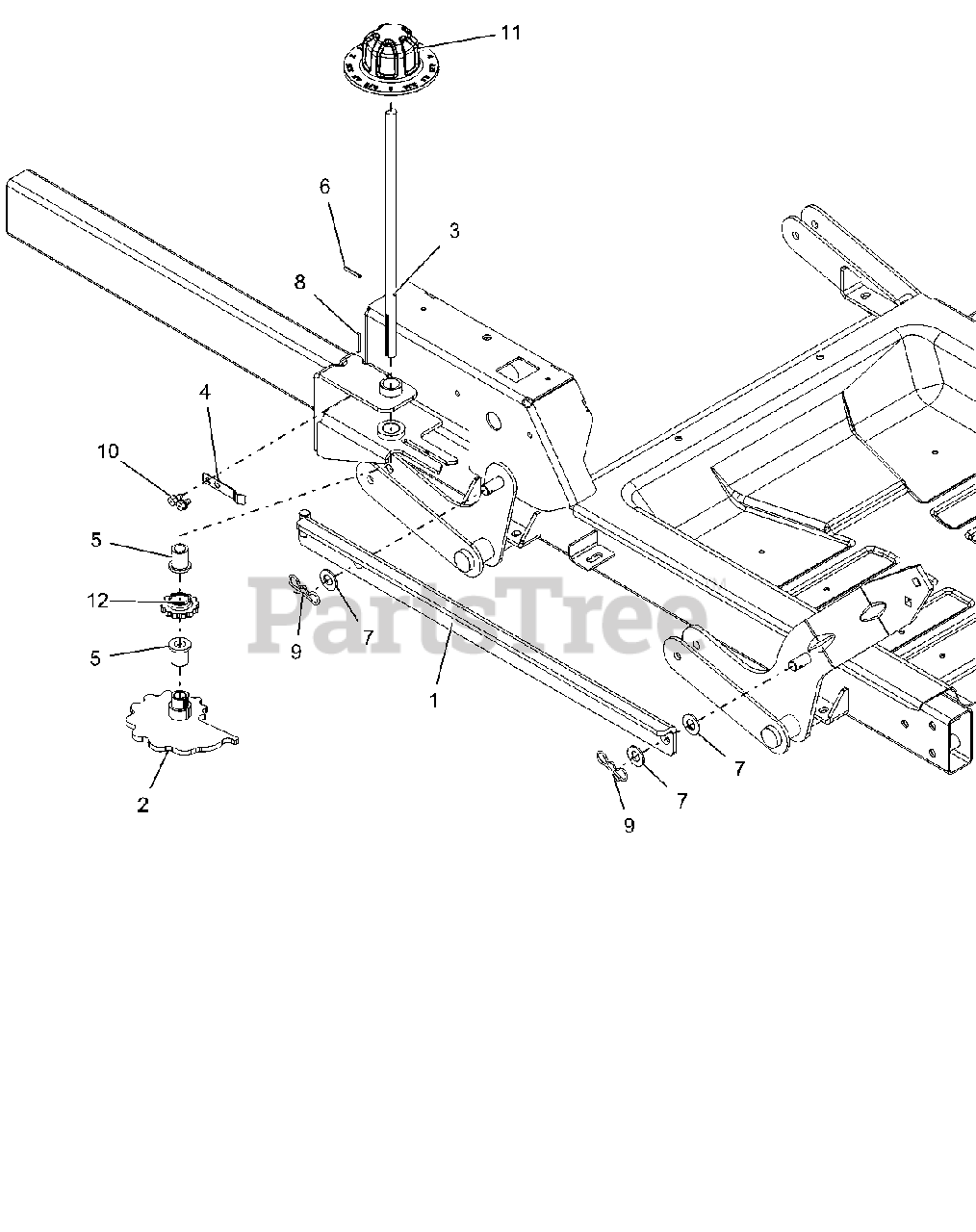

Deck Lift And Height Of Cut Parts Diagram
Ariens 04741751
WLDMT, HOC LINK
$
$
Not available
$62.99
$
In Stock, only 1 left!
Ariens 04742000
SHAFT, HOC CAM
$59.99
$
In Stock, only 1 left!
Ariens 04742100
ARM, HOC DETENT
$10.99
$
Usually ships in 4-12 days
Ariens 05501218
BSHG-FLG, .503X.750X.875X1.00
$3.99
$
Usually ships in 4-12 days
Ariens 05800900
PIN-ROLL .125X1.00
$0.99
$
In Stock, only 4 left!
Ariens 06443300
WSHR-FL-NYL .518X1.000X.080
$0.99
$
In Stock, Qty 20+
Ariens 06600211
KEY, 1/8 X 1/8 X 1.0
$2.49
$
Usually ships in 4-12 days
$2.99
$
In Stock, Qty 20+
$1.49
$
In Stock, Qty 8
$17.99
$
In Stock, Qty 7
Ariens 07500319
GEAR, HOC INDEX
$11.99
$
Usually ships in 4-12 days
