915217 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 000101 & Above) Seat Parts Diagram

Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

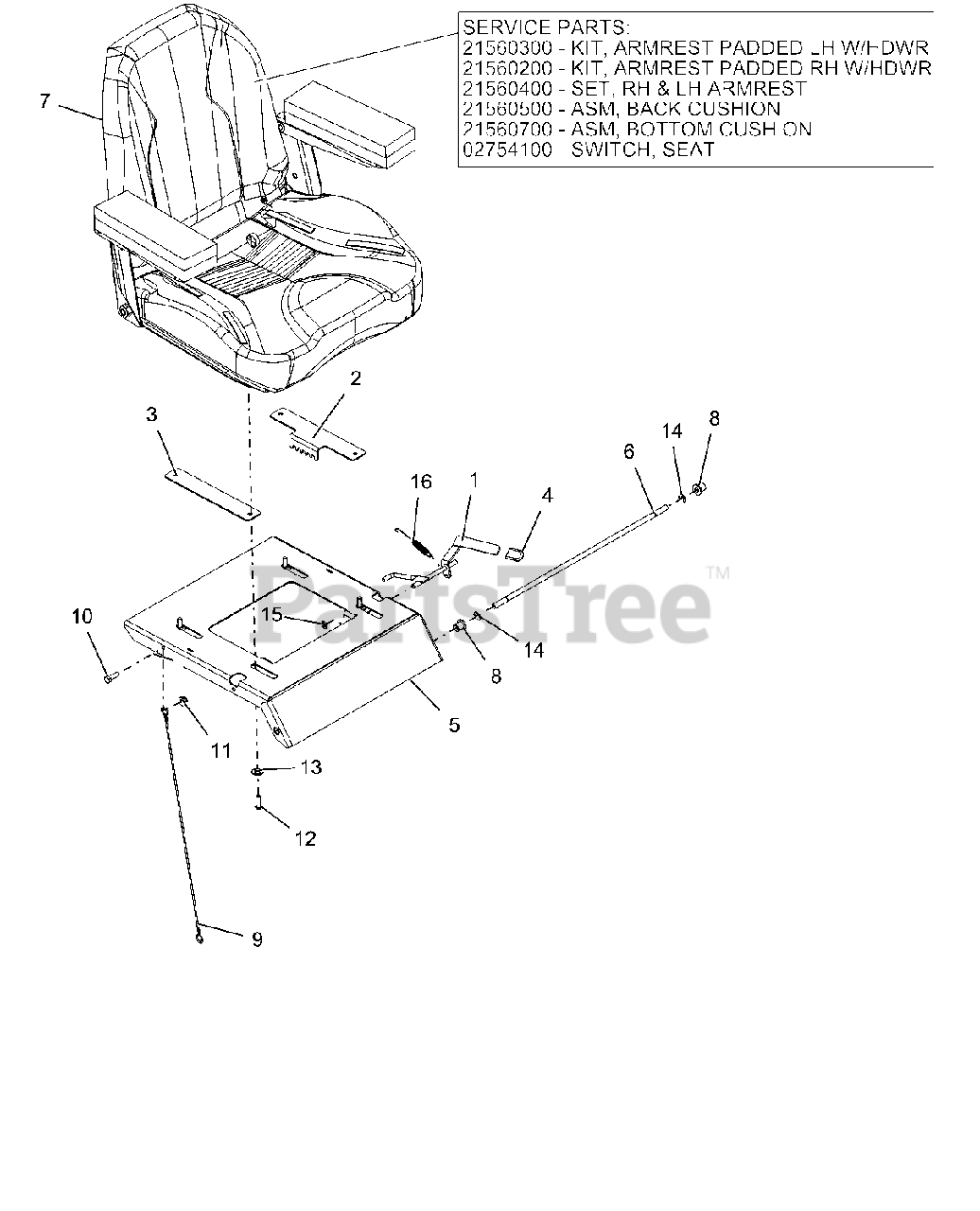

Seat Parts Diagram

  • Title

1

Ariens 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 04376951

PLATE, ADJUSTABLE SEAT TRACK

$14.99

$

In Stock, only 1 left!

0

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$23.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 04757059

PLATE, SEAT

$69.99

$

Usually ships in 4-12 days

0

6

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 20+

0

7

Ariens 04888400

SEAT, IKON XL

$349.99

$

Usually ships in 4-12 days

0

7

Ariens 21560300

PAD,LH ARMREST LIGHT GREY SOFT

$52.99

$

Usually ships in 4-12 days

0

7

Ariens 21560200

PAD, RH ARMREST LIGHT GREY

$52.99

$

Usually ships in 4-12 days

0

7

Ariens 21560400

SET,RH & LH ARMREST -LTGREY

$138.99

$

Usually ships in 4-12 days

0

7

Ariens 21560500

ASM, BACK CUSION-ARIENS XL

$121.99

$

Usually ships in 4-12 days

0

7

Ariens 21560700

ASM,BOTTOM CUSHION -ARIENS XL

$143.99

$

Usually ships in 4-12 days

0

8

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

9

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0

10

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 5

0

11

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 05901508

SCR-SKH .31-18X1.0 BTNHD YWZC
(Superseded to 05901840)

$2.99

$

In Stock, Qty 17

0

13

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

14

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

16

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0
