915220 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler (SN: 075000 - 079999) Front Caster Wheels Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler

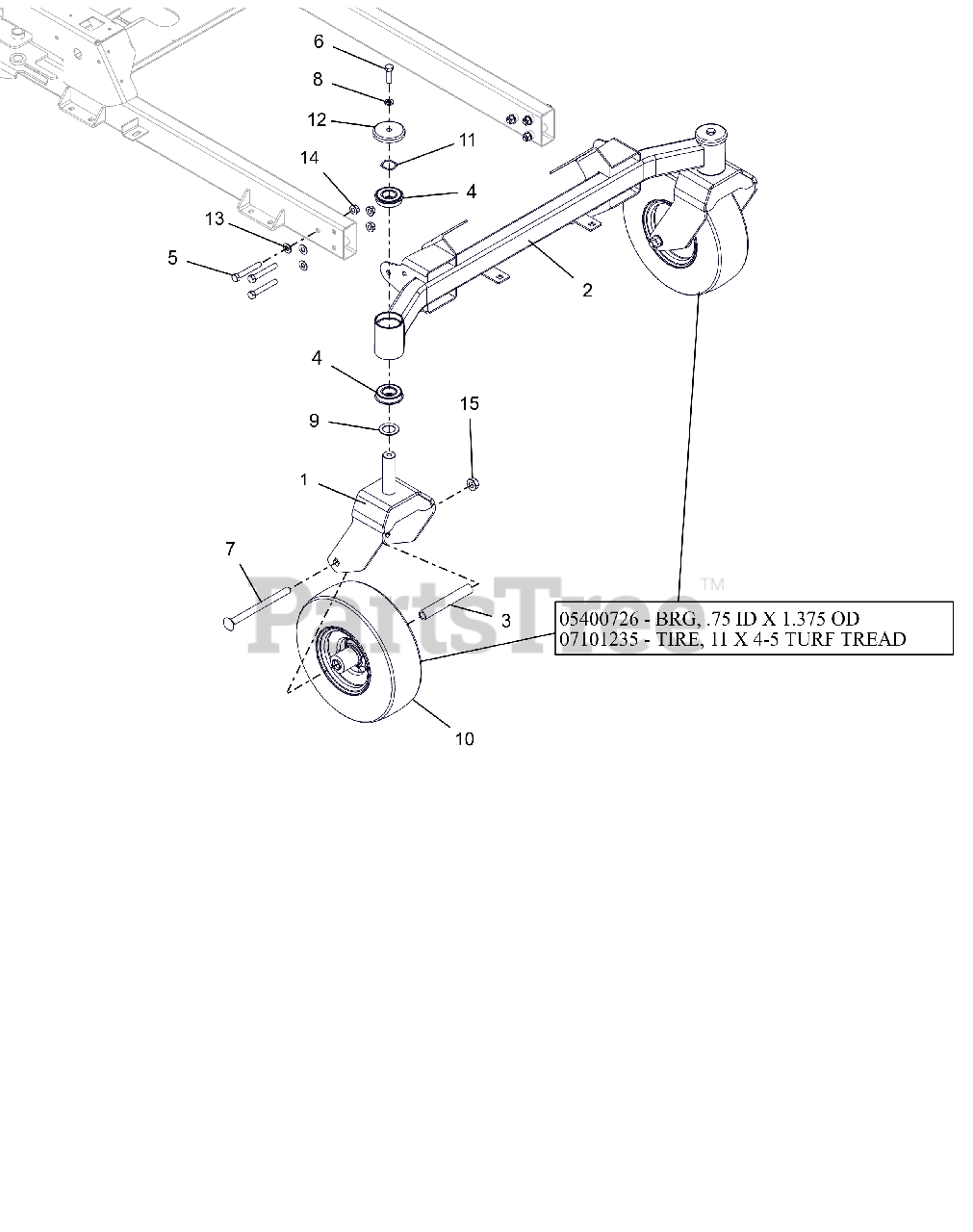

Front Caster Wheels Parts Diagram

  • Title

1

Ariens 05198259

WMT-CASTER FORK-X
(Superseded to 05266159)

$80.99

$

Usually ships in 4-12 days

0

2

Ariens 05198159

WMT-FRONT AXLE-X/XL

$168.99

$

Usually ships in 4-12 days

0

3

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

4

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

In Stock, Qty 6

0

5

Ariens 05901811

BLT, HEX .38-16X2.50 G8 ZCC

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 8

0

7

Ariens 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

In Stock, only 2 left!

0

8

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 18

0

9

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

10

Ariens 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

10

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

10

Ariens 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$56.99

$

In Stock, only 4 left!

0

10

Ariens 07108600

TUBE 11 X4.0-5

Note: Optional Component Service Part

$11.99

$

In Stock, only 2 left!

0

11

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 17

0

12

Ariens 05198400

SHIELD, AXLE BEARING

$6.99

$

In Stock, only 2 left!

0

13

Ariens 06401129

WSHR,FLT-HRD.406X.812X.055 MZC

$1.49

$

Usually ships in 4-12 days

0

14

Ariens 06500905

NUT-LK-TOP-FLG .375-16 GG ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0
